992007 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) 60" Mower Deck Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

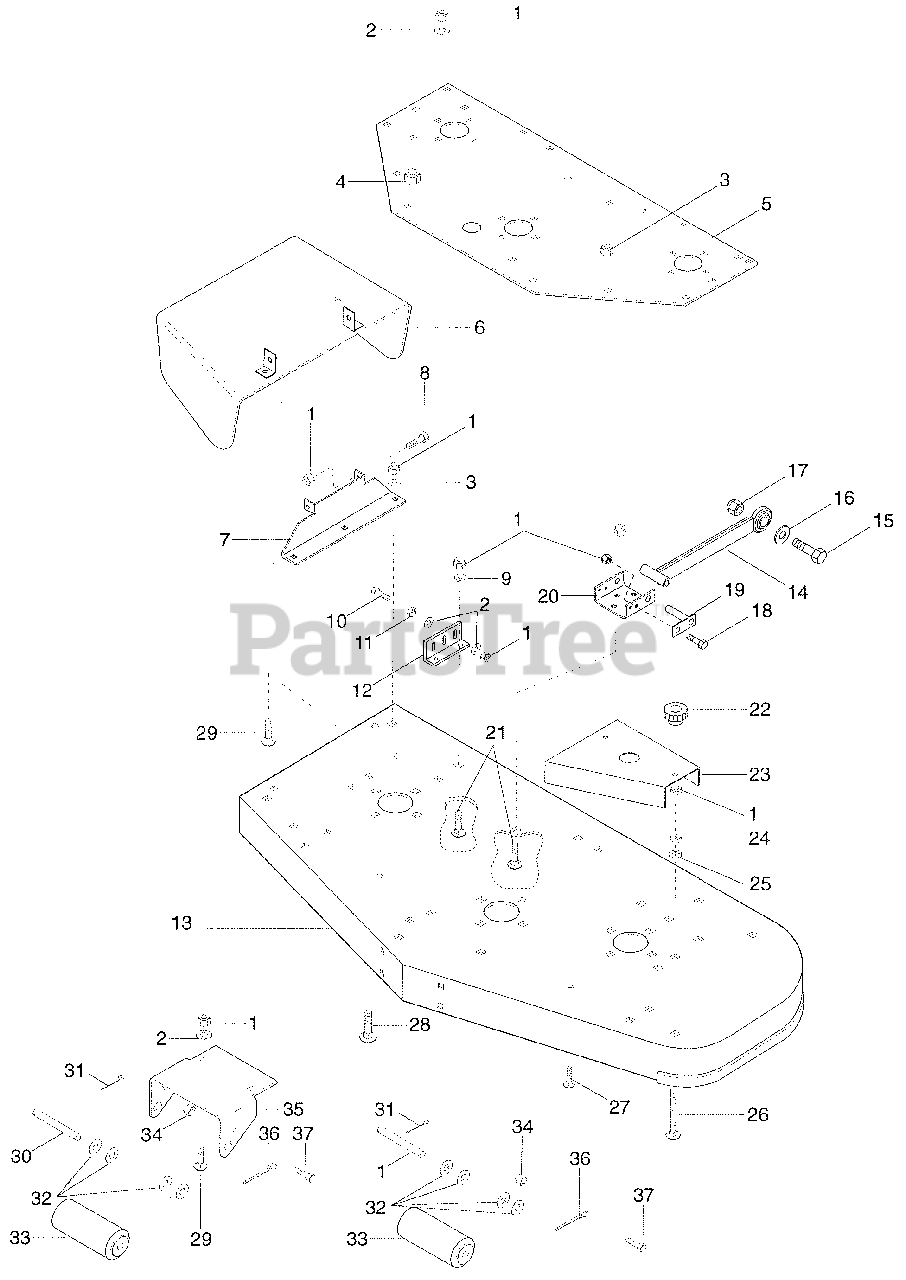

60" Mower Deck Parts Diagram

  • Title

1

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

4

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 09012900

PLT,60"SUPPORT

$

$

Not available

6

Gravely 09012600

WLDMT,DISCHARGE CHUTE

$

$

Not available

7

Gravely 08990400

BRKT,DISCHARGE

$54.99

$

Usually ships in 4-12 days

0

8

Gravely 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03488200

BUSHING .406 X .750 X .188

$6.49

$

In Stock, only 2 left!

0

10

Gravely 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 15

0

11

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09210100

BRKT, MWR MTG (60" MWR)
(Superseded to 09210153)

Note: (60" Mower)

$

$

Not available

13

Gravely 09210000

WLDM'T, DECK 60" MWR PM200
(Superseded to 09210053)

$

$

Not available

14

Gravely 09209500

WLDM'T, MWR MTG ARM
(Superseded to 09209553)

$113.99

$

Usually ships in 4-12 days

0

15

Gravely 05945900

BLT-HEX .87-9X2.75 GR5 PL
(Superseded to 05969500)

$8.49

$

In Stock, Qty 12

0

16

Gravely 06414300

WSHR-FL-STL .094X.250X.020 PL

$

$

Not available

17

Gravely 06528100

NUT-LK .875-9 HEX W/INSRT

$

$

Not available

18

Gravely 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

19

Gravely 09213700

WLDM'T, MWR MTG PIN

$

$

Not available

20

Gravely 09209800

BRKT, MWR MTG (REAR)
(Superseded to 09209853)

Note: (Rear)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 06217500

BLT-RDHDSQNK .38-16X1.25
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 07526600

KNOB
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 09220400

GUARD, PULLEY L.H. 60" MWR
(Superseded to 09220453)

$

$

Not available

Gravely 09220300

GUARD, PULLEY R.H. 60" MWR
(Superseded to 09220353)

$

$

Not available

24

Gravely 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

25

Gravely 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06205200

BLT-RDHDSQNK .31-18X3.50 PL
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

27

Gravely 06216500

BLT-RDHDSQNK .31-18X.62
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 06218100

BLT-RDHDSQNK .50-13X1.00
(Superseded to 06200420)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 08598800

SHAFT,CENTER ROLLER

$61.99

$

Usually ships in 4-12 days

0

31

Gravely 06706100

PIN-COTR .25X1.00
(Superseded to 06713000)

$1.99

$

In Stock, only 4 left!

0

32

Gravely 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 08803300

RLR,GAGE

$38.99

$

In Stock, only 3 left!

0

34

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

35

Gravely 09012300

BRKT, GAGE ROLLER

$79.99

$

In Stock, only 2 left!

0

36

Gravely 06705000

PIN-COTR .250X2.00
(Superseded to 06713100)

$4.99

$

In Stock, only 2 left!

0

37

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0
