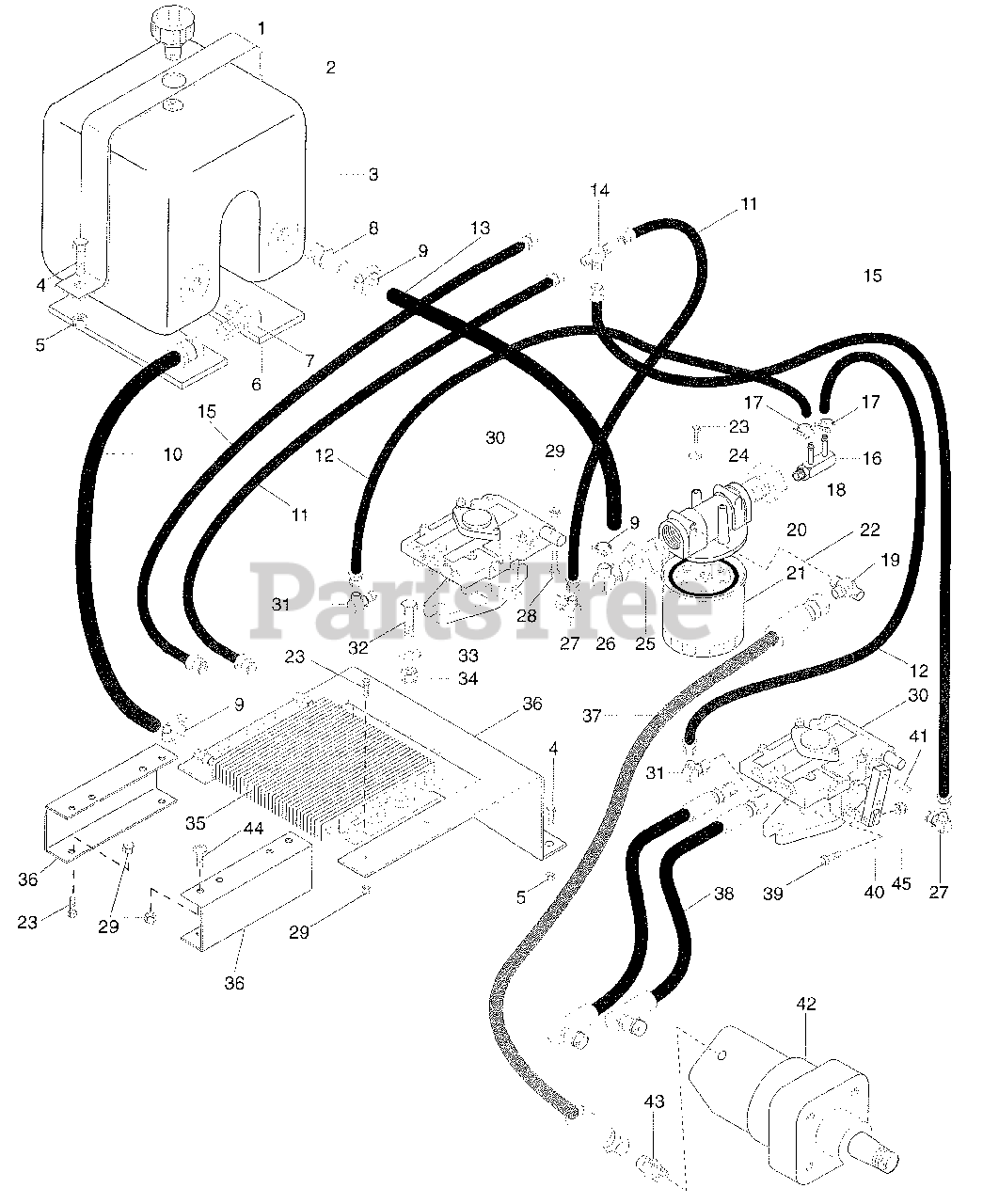

992007 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Hydraulic System Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

Hydraulic System Parts Diagram

  • Title

1

Gravely 08996400

Cap, Filter

$35.99

$

In Stock, only 1 left!

0

2

Gravely 08997100

Strap, Tank

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 09032900

Tank, Hydraulic

$

$

Not available

4

Gravely 05913500

Boldt Hex .31-18 X .75 Grade 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

5

Gravely 06506200

Nut Locking Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 03301900

Pad, Gas Tank

$

$

Not available

7

Gravely 07020000

Adapter .37-.875

$

$

Not available

8

Gravely 07020300

Fitting Adapter 88-14

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 09106100

Hose, Hydraulic Cooler to Tank (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$40.99

$

Usually ships in 4-12 days

0

Gravely 09223800

Hose, Hydraulic (Oil Cooler to Tank) (010, 011)

Note: (Oil Cooler to Tank) (010, 011)

$29.99

$

Usually ships in 4-12 days

0

11

Gravely 08811300

Hose, Hydraulic Valve to Tank (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$39.99

$

Usually ships in 4-12 days

0

Gravely 08811300

Hose, Hydraulic Valve to Tank (010, 011)

Note: (010, 011)

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 09221300

Hose, Oil Filter to Pump

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 00915100

Hose, .50 Inside Diameter X .75 OD

$3.49

$

In Stock, Qty 20+

0

14

Gravely 07021500

Adapter Tee .56-18

$30.99

$

Usually ships in 4-12 days

0

15

Gravely 09221200

Hose, Pump to Tee (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$13.99

$

Usually ships in 4-12 days

0

Gravely 09221200

Hose, Pump to Tee (010, 011)

Note: (010, 011)

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 07018100

Fitting Pipe .563-18

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 06922100

Clamp Hose 1.50 X .81 X 1.42

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 07026500

Adapter, Hydraulic 6410-12-06

$

$

Not available

19

Gravely 07027500

Adapter, Hydraulic 2601-04-04-04

$

$

Not available

20

Gravely 09221100

Head, Oil Filter

$

$

Not available

21

Gravely 04108100

Replacement Element 921999

$50.99

$

Usually ships in 4-12 days

0

22

Gravely 09204900

Assembly, Filter

$

$

Not available

23

Gravely 05932000

Bolt Hexs .25-20 X .63

$1.99

$

In Stock, only 1 left!

0

24

Gravely 06304900

Washer Lock .250 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

25

Gravely 07020600

Adapter Hydraulic .88-14

$

$

Not available

26

Gravely 03450600

Fitting

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 08800800

Adapter 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

28

Gravely 05916200

Bolt Hex .25-20 X 2.00 Grade 5
(Superseded to 05967100)

$2.49

$

In Stock, only 2 left!

0

29

Gravely 06506600

Nut Locking Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

In Stock, only 2 left!

0

30

Gravely 08867300

Variable Displace Pump
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

31

Gravely 08936400

Adapter 2503-6-4

$

$

Not available

32

Gravely 05934800

Bolt Hex .38-16 X 1.125

$

$

Not available

33

Gravely 06404300

Washer Flat Steel .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06524800

Nut Locking Center .625-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 08856200

Cooler, Oil

$

$

Not available

36

Gravely 09224900

Bracket, Oil Cooler (007, 008, 009, 012, 302)
(Superseded to 09224951)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09222100

Bracket, Oil Cooler (010, 011)
(Superseded to 09222151)

Note: (010, 011)

$

$

Not available

37

Gravely 09221900

Hose Assembly, Motor to Oil Filter

$

$

Not available

38

Gravely 09220500

Assembly, Hose Wheel Motor to Pump

$

$

Not available

39

Gravely 05905600

Bolt Hex .25-20 X 1.25 Grade 5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

40

Gravely 08880700

Arm, Pump Actuating

$

$

Not available

41

Gravely 05808000

Pin Dowel .312 X 1.25

$5.99

$

Usually ships in 4-12 days

0

42

Gravely 09200500

Motor, Wheel

$879.99

$

Usually ships in 4-12 days

0

43

Gravely 08801500

Adapter 0503-4-4

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 06113500

Screw Machine .25-20

$1.99

$

In Stock, only 3 left!

0

45

Gravely 06505600

Nut Locking Flange .250-20
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0
