992009 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000175) 50" Mower Drive Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

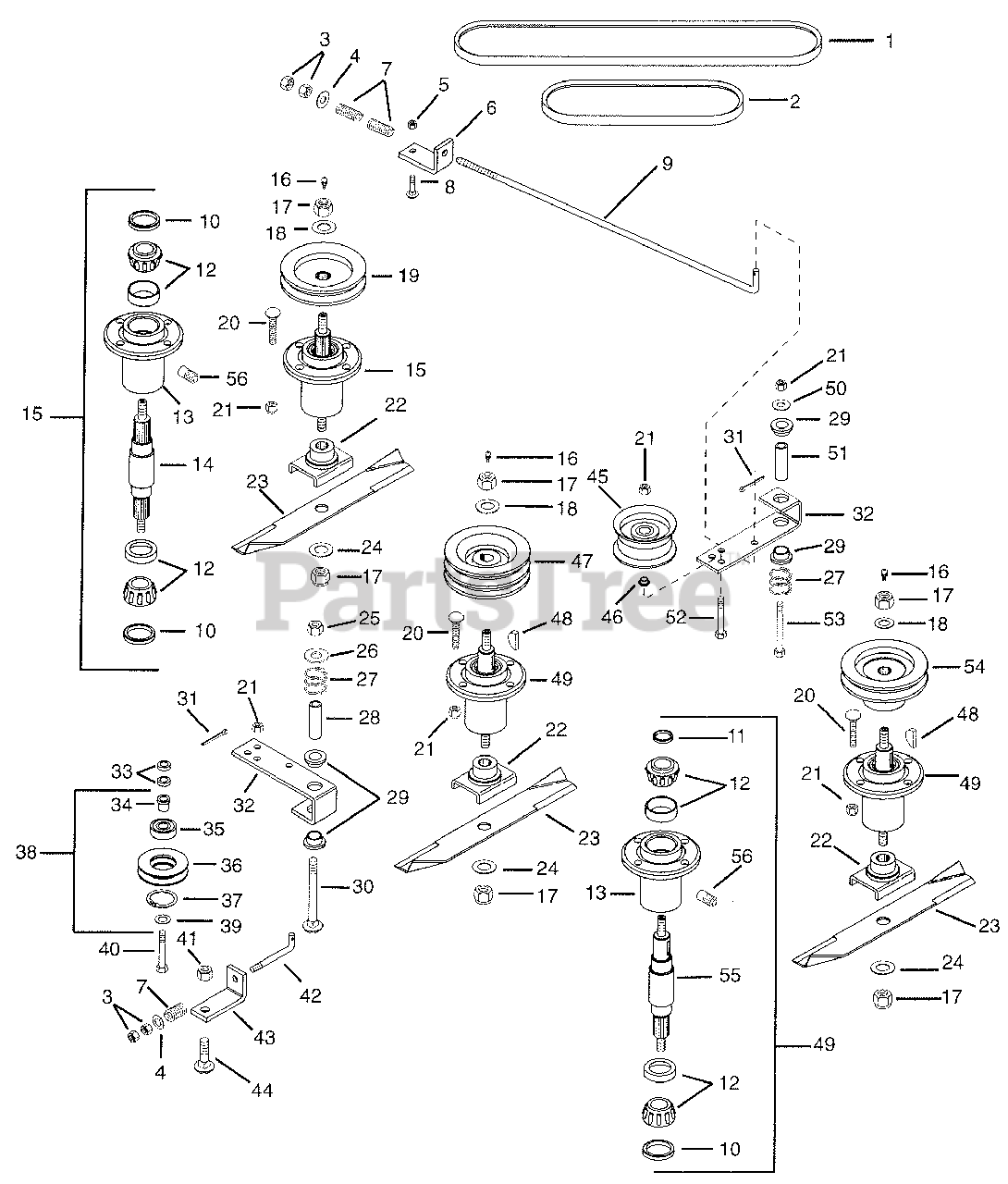

50" Mower Drive Parts Diagram

  • Title

1

Gravely 07228700

Drive Belt 54.90 X 17/32

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 07220000

Right Spindle Belt 18.05 X .495

$27.99

$

In Stock, only 2 left!

0

3

Gravely 06501800

Nut Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

4

Gravely 06404300

Washer Flat Steel .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06506200

Nut Locking Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 08802700

Bracket, Belt Tensioner

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 08327000

Spring Compression .125 X .78 X 1.000

$15.99

$

In Stock, only 4 left!

0

8

Gravely 06217200

Bolt, Round Head Square Neck .31-18 X 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

9

Gravely 08654100

Rod, Idler LH

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 05613000

Seal 1.987 X 1.375 X .313

$10.99

$

In Stock, Qty 11

0

11

Gravely 05611400

Seal 1.987 X 1.500 X .313

$15.99

$

In Stock, only 1 left!

0

12

Gravely 21245800

Assembly, Bearing Cup & Cone
(Superseded to 00145555)

$25.99

$

In Stock, Qty 14

0

13

Gravely 08894500

Bearing Housing

$

$

Not available

14

Gravely 08722800

Shaft. Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 3 left!

0

15

Gravely 58801800

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

16

Gravely 07012500

Fitting, Lube 1/8

$3.99

$

In Stock, only 4 left!

0

17

Gravely 06515800

Nut Locking Nylon .625 -11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

18

Gravely 06427400

Washer Flat Steel .687 X 1.312 X .135

$2.49

$

In Stock, only 2 left!

0

19

Gravely 08894900

Sheave
(Superseded to 58803500)

$119.99

$

Usually ships in 4-12 days

0

20

Gravely 06217600

Bolt Round Head Square Neck .38-16 X 1.375
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06513500

Nut Locking Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

22

Gravely 08798700

Weldment Blade Cradle

$124.99

$

Usually ships in 4-12 days

0

23

Gravely 08779200

Blade, 50 Inch Mower

$26.99

$

In Stock, Qty 18

0

24

Gravely 06400400

Washer Flat Nylon .656 X 1.312 X .095
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06525800

Nut Lockin .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 06430200

Washer Flat Steel .531 X 1.250 X .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 08329100

Spring Compression .085 X 1.00

$13.99

$

In Stock, only 1 left!

0

28

Gravely 08820500

Bushing Steel .560 X .750 X 2.44

$17.99

$

Usually ships in 4-12 days

0

29

Gravely 05518400

Bushing Flange .762 X 1.0 X .580 X 1.48

$4.99

$

In Stock, Qty 20+

0

30

Gravely 06218500

Bolt Round Head Square Neck .50-16 X 3.50

$5.99

$

In Stock, only 1 left!

0

31

Gravely 06700100

Pin Cotter .09 X .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

32

Gravely 08905900

Arm, Idler Pivot

$82.99

$

In Stock, only 1 left!

0

33

Gravely 03488200

Bushing .406 X .750 X .188

$5.99

$

In Stock, Qty 10

0

34

Gravely 05521500

Bushing Flange .786 X 1.0 X .79

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 05425100

Bearing Ball 1.85 X .787 X .55

$51.99

$

In Stock, only 2 left!

0

36

Gravely 08744300

Sheave Idler

$129.99

$

Usually ships in 4-12 days

0

37

Gravely 05713100

Ring Retaining Internal 2.05 X .062

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 08930300

Assembly Idler Sheave

$242.99

$

Usually ships in 4-12 days

0

39

Gravely 06425500

Washer Flat Steel .375 X 1.125 X .065
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

40

Gravely 05914700

Bolt Hex .38-16 X 2.00 Grade 5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 11

0

41

Gravely 06512900

Nut Locking Nylon .50-13 Grade 2
(Superseded to 06540600)

$2.49

$

In Stock, Qty 20+

0

42

Gravely 08876000

Rod Idler

$

$

Not available

43

Gravely 08928800

Bracket Belt Tensioner

$

$

Not available

44

Gravely 06207400

Bolt Round Head Square Neck .500-13 X 1.50
(Superseded to 06223100)

$4.49

$

Usually ships in 4-12 days

0

45

Gravely 07317700

Idler Flat 4 - .687 X .38
(Superseded to 07327800)

$79.99

$

In Stock, Qty 15

0

46

Gravely 05515800

Bushing Flange .406 X .88 X .270 X .140

$9.49

$

In Stock, Qty 9

0

47

Gravely 08894800

Sheave
(Superseded to 08895900)

$

$

Not available

48

Gravely 06608900

Key, Woodruff .25 X 1

$3.99

$

In Stock, Qty 20+

0

49

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

50

Gravely 06400800

Washer Flat Steel .438 X 1.0 X .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

51

Gravely 08818500

Bushing, Steel .437 X .750 X 2.44

$34.99

$

Usually ships in 4-12 days

0

52

Gravely 05924300

Bolt Hex .38-16 X 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

53

Gravely 05923400

Bolt Hex .38-16 X 3.25 Grade 5
(Superseded to 05961100)

$3.99

$

In Stock, only 1 left!

0

54

Gravely 08895000

Sheave
(Superseded to 08895500)

$

$

Not available

55

Gravely 08910600

Shaft. Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

56

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0
