992012 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 22hp Kohler (SN: 000101 - 000202) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kohler

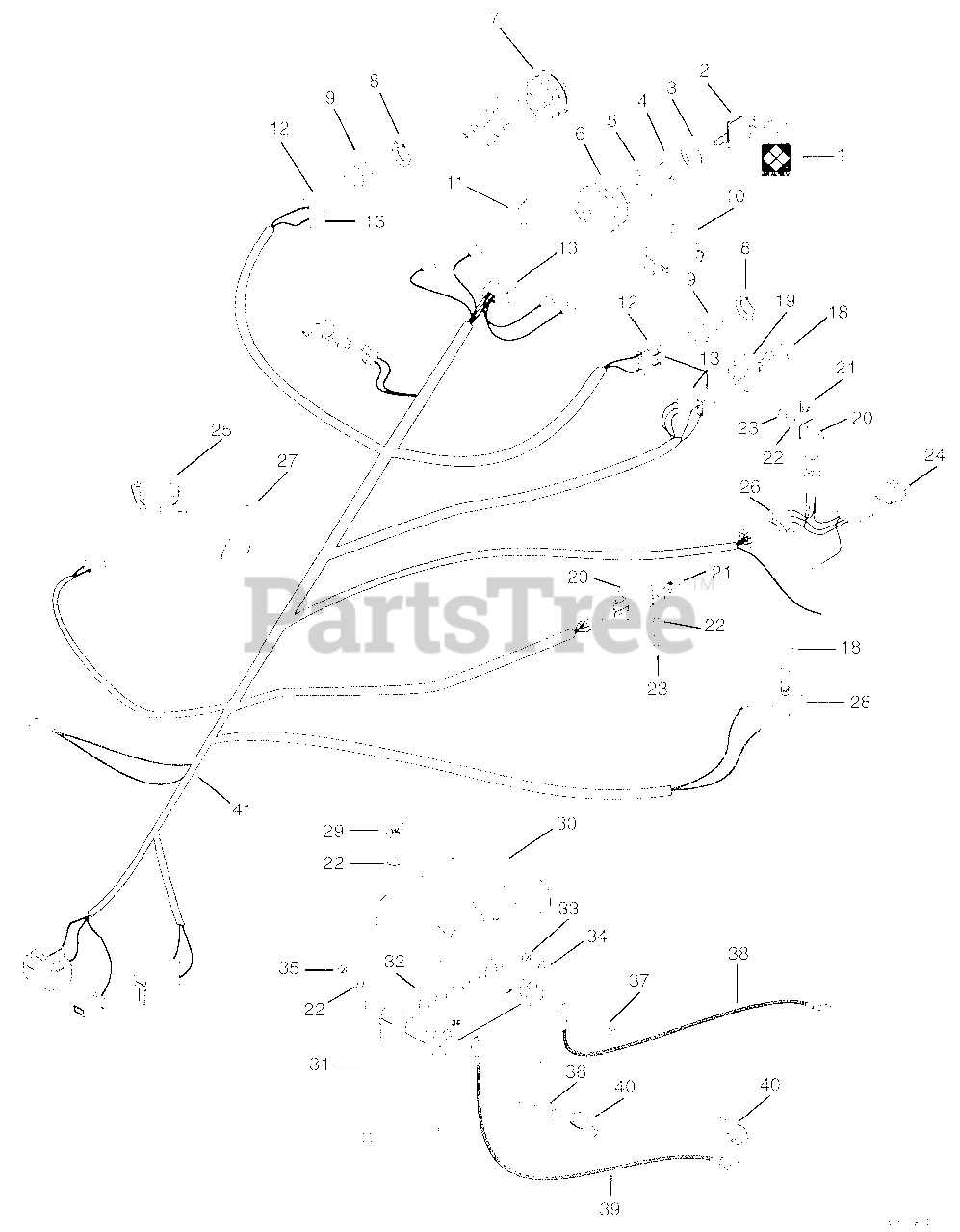

Electrical System Parts Diagram

  • Title

1

Gravely 03490000

Key Chain

$

$

Not available

2

Gravely 03489900

Ignition Switch Key
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 07517700

Cap Ignition Switch

$3.99

$

In Stock, Qty 19

0

4

Gravely 06517400

Nut Panel .562-24

$21.99

$

In Stock, Qty 7

0

5

Gravely 06302900

Washer Lock Internal .563 X .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 03115200

Ignition Switch
(Superseded to 59211800)

$70.99

$

In Stock, Qty 8

0

7

Gravely 03490800

Gauge Ammeter

$

$

Not available

8

Gravely 07015100

Nut Stamped .56-18

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02913100

Switch, Neutral Start N.O.

$46.99

$

In Stock, Qty 6

0

10

Gravely 03492700

Hour Meter
(Superseded to 09497400)

$25.99

$

In Stock, only 3 left!

0

11

Gravely 08841200

Light, Indicator (003, 004)
(Superseded to 05128700)

Note: (003, 004)

$7.99

$

In Stock, Qty 9

0

Gravely 08841200

Light, Indicator (005)
(Superseded to 05128700)

Note: (005)

$7.99

$

In Stock, Qty 9

0

12

Gravely 08550000

Connector, 2-Wire Switch

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 08540000

Terminal
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

14

Gravely 20822800

Cover

$

$

Not available

15

Gravely 08961800

Fuse, 25 AMP

$3.99

$

In Stock, Qty 14

0

16

Gravely 20822700

Assembly, Connector Weather Tight

$

$

Not available

17

Gravely 20823000

Terminal, For 10-12 Ga Wire
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06520700

Nut .50-27

$

$

Not available

19

Gravely 03454900

Switch Assembly

$58.99

$

In Stock, only 2 left!

0

20

Gravely 03042800

Relay
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 07016800

Nut Speed .25-20

$

$

Not available

22

Gravely 06412700

Washer Flat Steel .382 X 1.25 X .134
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 05932000

Bolt Hex .25-20 X .63

$2.49

$

In Stock, only 1 left!

0

24

Gravely 09044200

Module, Time Delay

$73.99

$

Usually ships in 4-12 days

0

25

Gravely 03354200

Switch, Seat4

$

$

Not available

26

Gravely 09044000

Adapter Harness (010, 011)

Note: (010, 011)

$

$

Not available

Gravely 09044100

Adapter Harness (00, 008, 009, 012, 302)

Note: (00, 008, 009, 012, 302)

$48.99

$

Usually ships in 4-12 days

0

27

Gravely 07519900

Tie Wrap, Black

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 03437900

Switch Assembly

$73.99

$

Usually ships in 4-12 days

0

29

Gravely 06506400

Nut Wing .250-20
(Superseded to 06537500)

$5.49

$

Usually ships in 4-12 days

0

30

Gravely 09032300

Cover, Battery
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

31

Gravely 06218700

Bolt Round Head Square Neck .25-20 X 7.00
(Superseded to 06220400)

$5.49

$

In Stock, only 2 left!

0

32

Gravely 78509300

12 Volt Battery (8 HP)

Note: (8 HP)

$

$

Not available

33

Gravely 06506200

Nut Locking Nylon .312-18 Grade 2
(Superseded to 06530200)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06412300

Washer Flat Steel .344 X .688 X .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06506600

Nut Locking Nylon .250-20 Grade 2
(Superseded to 06531000)

$5.49

$

In Stock, only 2 left!

0

36

Gravely 05908200

Bolt Hex .25-20 X .75 Grade 5
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

37

Gravely 05918100

Bolt Hex .31-18 X 1.00 Grade 5
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

38

Gravely 08840400

Cable, Negative Battery (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$18.99

$

Usually ships in 4-12 days

0

Gravely 09222700

Cable, Negative Battery (010, 011)
(Superseded to 03288200)

Note: (010, 011)

$26.99

$

Usually ships in 4-12 days

0

39

Gravely 08816700

Cable, Battery To Solenoid (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09222600

Cable, Positive Battery (010,011)

Note: (010,011)

$

$

Not available

40

Gravely 03384700

Boot Insulator

$

$

Not available

41

Gravely 09201600

Harness, Wiring (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09222200

Harness, Wiring (010, 011)
(Superseded to 09225500)

Note: (010, 011)

$

$

Not available
