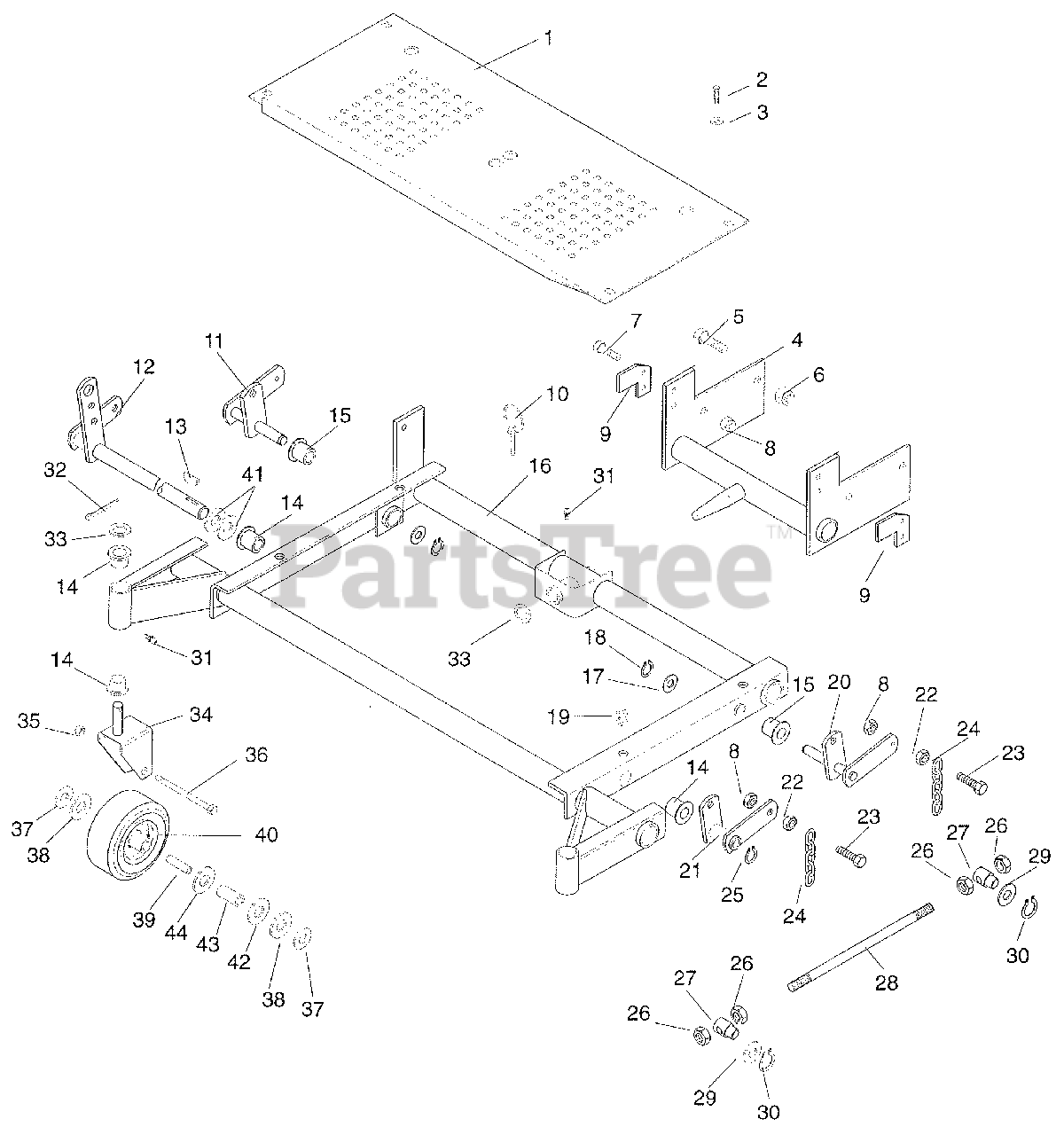

992012 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 22hp Kohler (SN: 000101 - 000202) Front Frame Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kohler

Front Frame Parts Diagram

  • Title

1

Gravely 09203600

Footboard PM200
(Superseded to 09203653)

$

$

Not available

2

Gravely 06113500

Screw Machine .25-20

$1.99

$

In Stock, only 3 left!

0

3

Gravely 06424900

Washer Flat Steel .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

4

Gravely 09225100

Weldment, Mower Frame Mounting
(Superseded to 09225153)

$

$

Not available

5

Gravely 05939100

Fbolt Hex .625-11 X 1.50
(Superseded to 05968700)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06515800

Nut Locking Nylon .625-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 11

0

7

Gravely 05934800

Bolt Hex .38-16 X 1.125

$

$

Not available

8

Gravely 06513500

Nut Lockijng Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

9

Gravely 09220800

Plate, Pivot Stop
(Superseded to 09220853)

$

$

Not available

10

Gravely 07015400

Pin Klik .25 X 1.75

$5.99

$

In Stock, only 1 left!

0

11

Gravely 09205300

Weldment, Lift Arm Shaft

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 09204000

Weldment, Mower Lift Shaft (front)

Note: (front)

$

$

Not available

13

Gravely 06608900

Key Woodruff .25-1.0

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05520100

Bushing Flange 1.020 X 1.385 X .75 X 1.75

$10.99

$

In Stock, Qty 20+

0

15

Gravely 05518400

Bushing Flange .762 X 1.0 X .580 X 1.48

$4.99

$

In Stock, Qty 20+

0

16

Gravely 09202100

Weldment, Front Frame PM200
(Superseded to 09226853)

$

$

Not available

17

Gravely 05427700

Bearing N Thrust .752 X 1.24 X .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 05714600

Ring Retaining External .689 X .077

$2.49

$

In Stock, Qty 5

0

19

Gravely 06527400

Clip, U-Type

$

$

Not available

20

Gravely 09205400

Weldment, Lift Arm Shaft RH

$

$

Not available

21

Gravely 09204200

Weldment, Lift Arm (Front)

Note: (Front)

$

$

Not available

22

Gravely 06501800

Nut Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 05915100

Bolt Hex .38-16 X 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

24

Gravely 09215300

Chain, Link

$8.99

$

Usually ships in 4-12 days

0

25

Gravely 05707300

Ring Retaining External 1.00 X .078

$2.99

$

In Stock, only 2 left!

0

26

Gravely 06502100

Nut .50-13
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 09212700

Pivot, Mower Lift

$

$

Not available

28

Gravely 09210200

Tie Rod, Lift Lever

$

$

Not available

29

Gravely 06403900

Washer Flat Steel .630 X 1.005 X .062
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05709200

Ring Retaining External .625 X .050

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 07012600

Fitting Lub .25-28 X .256
(Superseded to 07001806)

$

$

Not available

32

Gravely 06702100

Pin Cotter .12 X 1.25
(Superseded to 06714300)

$1.99

$

In Stock, only 1 left!

0

33

Gravely 05421600

Bearin R Thrust 1.022 X 1.552 X .030
(Superseded to 06435300)

$4.99

$

In Stock, Qty 5

0

34

Gravely 09205600

Weldment, Caster Fork
(Superseded to 09206253)

$153.99

$

Usually ships in 4-12 days

0

35

Gravely 06512900

Nut Locking Nylon .50-13 Grade 2
(Superseded to 06540600)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 05943600

Bolt Hex .500-13 X 8.00
(Superseded to 05968400)

$7.99

$

In Stock, Qty 11

0

37

Gravely 06430200

Washer Flat Steel .531 X 1.250 X .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06430400

Washer Flat Steel .813 X 1.370 X .100
(Superseded to 06439000)

$1.49

$

In Stock, Qty 15

0

39

Gravely 09206100

Axle, Caster

$

$

Not available

40

Gravely 07135200

Tire/Wheel Assembly 13 X 5-6
(Superseded to 07145700)

$

$

Not available

41

Gravely 06428500

Washer Flat Steel .063 X 2.000 X .134

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 09202700

End Cap

$7.99

$

Usually ships in 4-12 days

0

43

Gravely 05422800

Bearing, Roller

$29.99

$

Usually ships in 4-12 days

0

44

Gravely 09202800

Stop Washer

$

$

Not available

NS

Gravely 07139000

Tire, 13 X 5-6 Turf Trac

$

$

Not available
