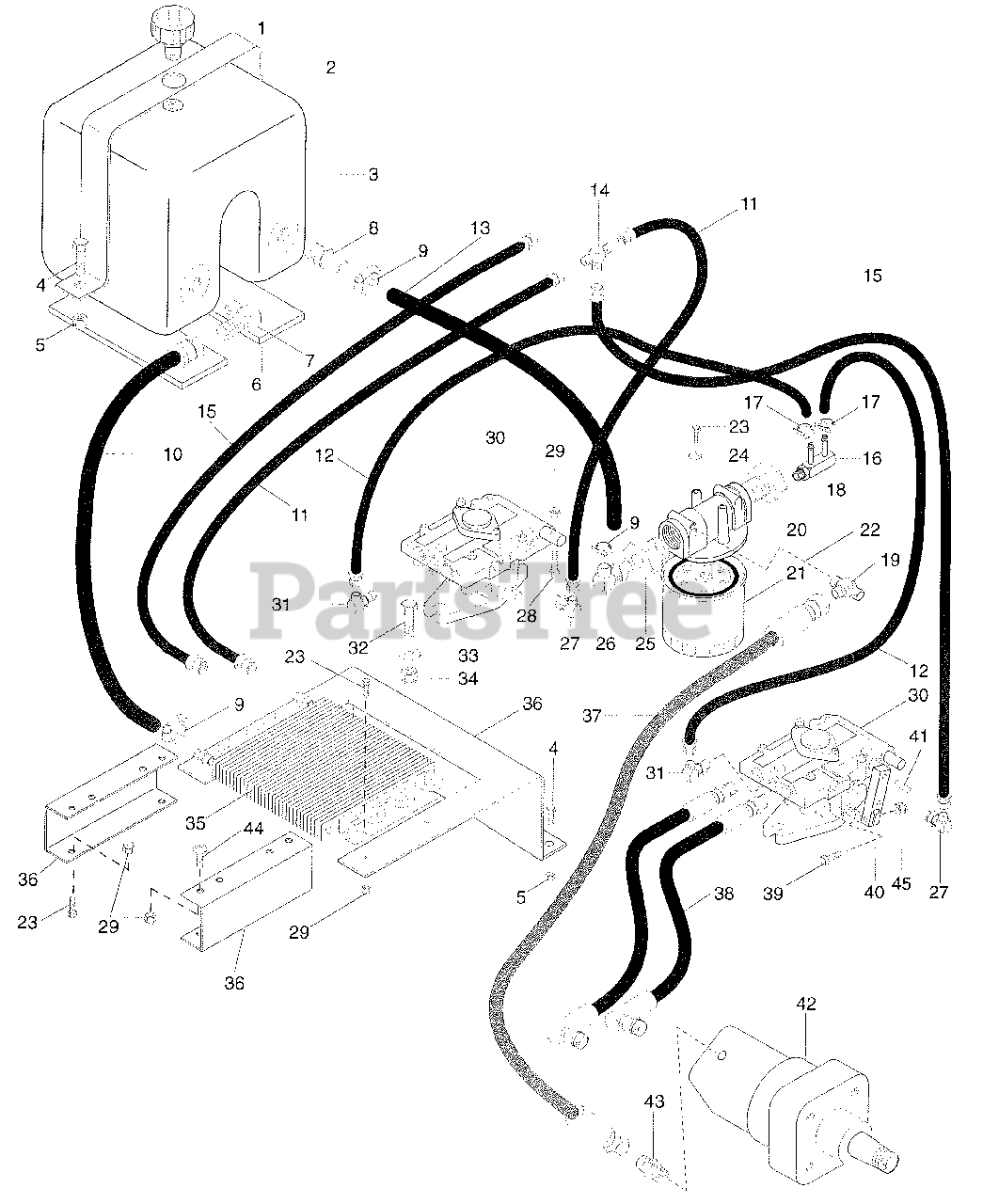

992012 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 22hp Kohler (SN: 000101 - 000202) Hydraulic System Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kohler

Hydraulic System Parts Diagram

  • Title

1

Gravely 08996400

CAP,FILTER

$37.99

$

In Stock, only 1 left!

0

2

Gravely 08997100

STRAP,TANK

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 09032900

TANK,HYDRAULIC

$

$

Not available

4

Gravely 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.99

$

In Stock, Qty 5

0

6

Gravely 03301900

PAD, GAS TANK

$

$

Not available

7

Gravely 07020000

ADPTR-HYD EL 7/8 "O" TO 3/4

$

$

Not available

8

Gravely 07020300

FTG-ADPTR 88-14

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

10

Gravely 09106100

HOSE,HYD COOLER TO TANK

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09223800

HOSE, HYD (OIL COOLER TO TANK)

Note: (Oil Cooler to Tank) (010, 011)

$

$

Not available

11

Gravely 08811300

HOSE,HYD VALVE TO TANK

Note: (007, 008, 009, 012, 302)

$43.99

$

Usually ships in 4-12 days

0

Gravely 08811300

HOSE,HYD VALVE TO TANK

Note: (010, 011)

$43.99

$

Usually ships in 4-12 days

0

12

Gravely 09221300

HOSE, OIL FILTER TO PUMP

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 00915100

HOSE .62 ID X .91 OD BLK

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 07021500

ADPT-TEE .56-18

$33.99

$

Usually ships in 4-12 days

0

15

Gravely 09221200

HOSE, PUMP TO TEE

Note: (007, 008, 009, 012, 302)

$13.99

$

Usually ships in 4-12 days

0

Gravely 09221200

HOSE, PUMP TO TEE

Note: (010, 011)

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 07018100

FTG-PIPE .563-18

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 06922100

CLAMP-HOSE WRM .44/.78X.53 F06

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07026500

ADPT, HYD 0510-12-06

$

$

Not available

19

Gravely 07027500

ADPT, HYD (PARKER 013T-2-4)

$

$

Not available

20

Gravely 09221100

HEAD, OIL FILTER

$

$

Not available

21

Gravely 04108100

REPLACEMENT ELEMENT

$53.99

$

Usually ships in 4-12 days

0

22

Gravely 09204900

ASM,FILTER 12AT-10C-N-X-MM-RI

$

$

Not available

23

Gravely 05932000

BLT-HEX .25-20X.63

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 06304900

WSHR-LK .250 REG.
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07020600

ADPT-HYD 0510-12-10

$

$

Not available

26

Gravely 03450600

FITTING

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$3.49

$

In Stock, only 3 left!

0

29

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.99

$

In Stock, Qty 12

0

30

Gravely 08867300

VARIABLE PUMP BDP-10L-117P
(Superseded to 09279900)

$1320.99

$

Usually ships in 4-12 days

0

31

Gravely 08936400

ADPT 2503-4-6 OR 6801-6-4

$

$

Not available

32

Gravely 05934800

BLT-HEX .38-16X1.125

$

$

Not available

33

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 06524800

NUT-LK-CTR .375-16 TYP N
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 08856200

COOLER,OIL

$

$

Not available

36

Gravely 09224900

BRKT, OIL COOLER
(Superseded to 09224951)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09222100

BRKT, OIL COOLER (18HP KAW)
(Superseded to 09222151)

Note: (010, 011)

$

$

Not available

37

Gravely 09221900

HOSE ASM, MOTOR TO OIL FILTER

$

$

Not available

38

Gravely 09220500

ASM, HOSE WHL MTR TO PUMP

$

$

Not available

39

Gravely 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$2.99

$

In Stock, only 2 left!

0

40

Gravely 08880700

ARM, PUMP ACTUATING

$

$

Not available

41

Gravely 05808000

PIN-DWL .312X1.25

$6.99

$

Usually ships in 4-12 days

0

42

Gravely 09200500

MOTOR, WHEEL HB 14 07 53 7 P

$879.99

$

Usually ships in 4-12 days

0

43

Gravely 08801500

ADPT 0503-4-4

$6.99

$

Usually ships in 4-12 days

0

44

Gravely 06113500

SCR-MCH .25-20 PAN HD

$2.99

$

Usually ships in 4-12 days

0

45

Gravely 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.99

$

In Stock, Qty 20+

0
