992012 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 22hp Kohler (SN: 000101 - 000202) Steering & Direction Controls Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kohler

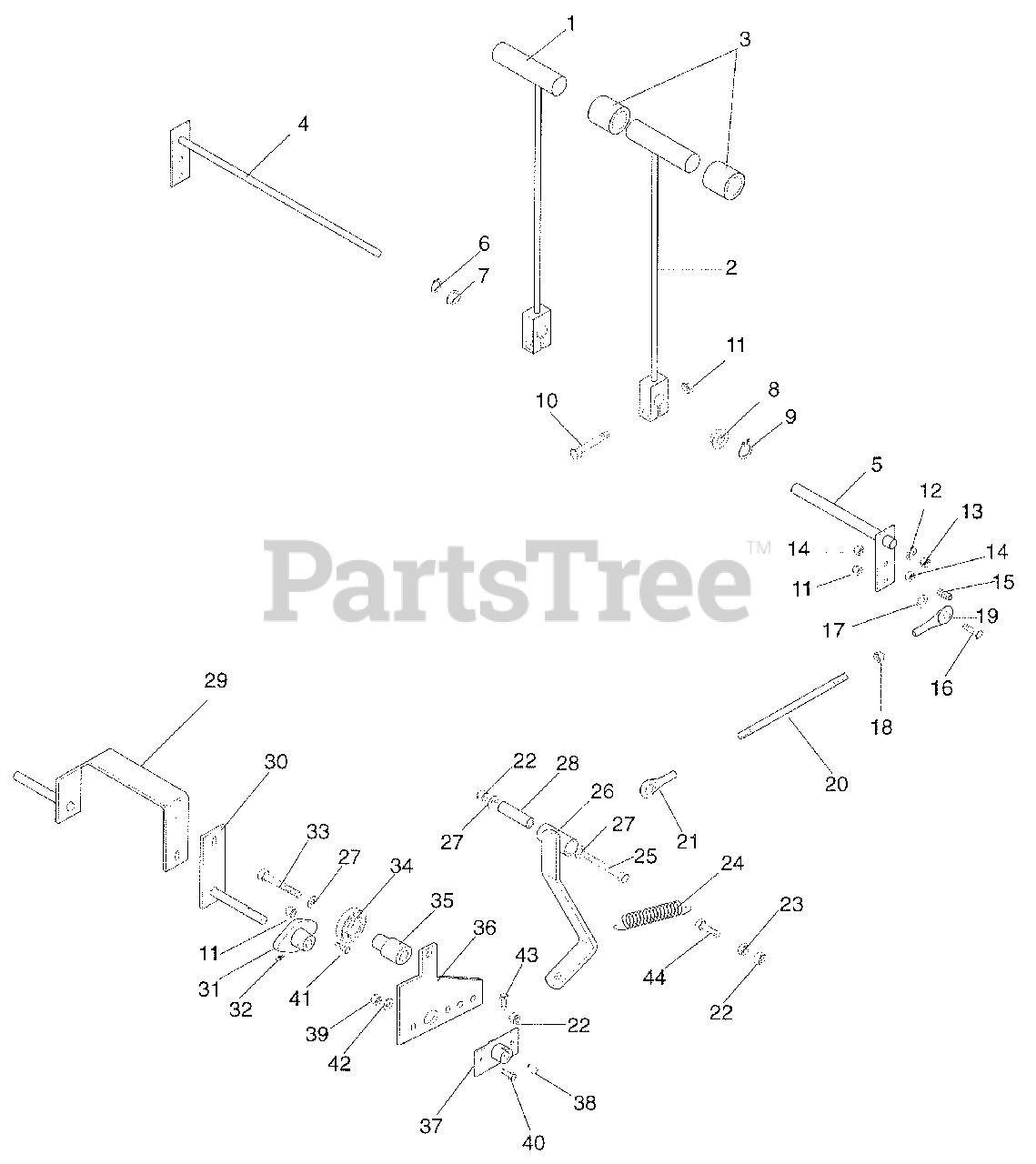

Steering & Direction Controls Parts Diagram

  • Title

1

Gravely 09102700

WLDMT,STEERING LEVER L.H.

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09102600

WLDMT,STEERING LEVER R.H.

$

$

Not available

3

Gravely 09108500

GRIP, T-BAR

$

$

Not available

4

Gravely 09203300

WLDM'T, STEERING ROD

$263.99

$

Usually ships in 4-12 days

0

5

Gravely 09203200

WLDM'T, STEERING TUBE

$118.99

$

Usually ships in 4-12 days

0

6

Gravely 05716900

RG-RTNG-EXT .500X.460
(Superseded to 05717100)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

9

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 1 left!

0

10

Gravely 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.99

$

In Stock, Qty 15

0

11

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

12

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

15

Gravely 06003400

SCR-SET .32-18X1.50 SKHCUP

$

$

Not available

16

Gravely 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.99

$

In Stock, Qty 11

0

17

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 08960700

ROD END, 5/16 RH - FEMALE
(Superseded to 03787100)

$18.99

$

Usually ships in 4-12 days

0

20

Gravely 09105300

ROD,STEERING ADJ .31-24 X 10

$

$

Not available

21

Gravely 09107800

ROD END, 5\16 LH - FEMALE

$

$

Not available

22

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 08345500

SG-TENS .063X.62X2.75

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 09107400

WLDM'T, NEUTRAL DETENT

$

$

Not available

27

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 08831500

BUSH.,S.385X.610X1.80 ST

$6.49

$

In Stock, only 2 left!

0

29

Gravely 08848400

WLDMT,PUMP CONTROL R.H.

$

$

Not available

30

Gravely 08848500

WLDMT,PUMP CONTROL L.H.

$112.99

$

Usually ships in 4-12 days

0

31

Gravely 08847800

BUSH.,FLANGED SUPPORT
(Superseded to 01522000)

$35.99

$

In Stock, only 1 left!

0

32

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

33

Gravely 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 05407900

BRG-BALL .500X1.375X.437
(Superseded to 05408000)

$6.99

$

In Stock, Qty 20+

0

35

Gravely 09107200

HUB, BRG. MOUNT

$

$

Not available

36

Gravely 09103100

ARM,SPEED CONTROL
(Superseded to 01539700)

$26.99

$

Usually ships in 4-12 days

0

37

Gravely 08847200

WLDMT,NEUTRAL ADJ
(Superseded to 01525500)

$21.99

$

Usually ships in 4-12 days

0

38

Gravely 06608600

KEY-WDRF .125X.75

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

40

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0

41

Gravely 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 05915500

BLT-HEX .25-20X.50 PL GR5
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

44

Gravely 05934800

BLT-HEX .38-16X1.125

$

$

Not available
