992013 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

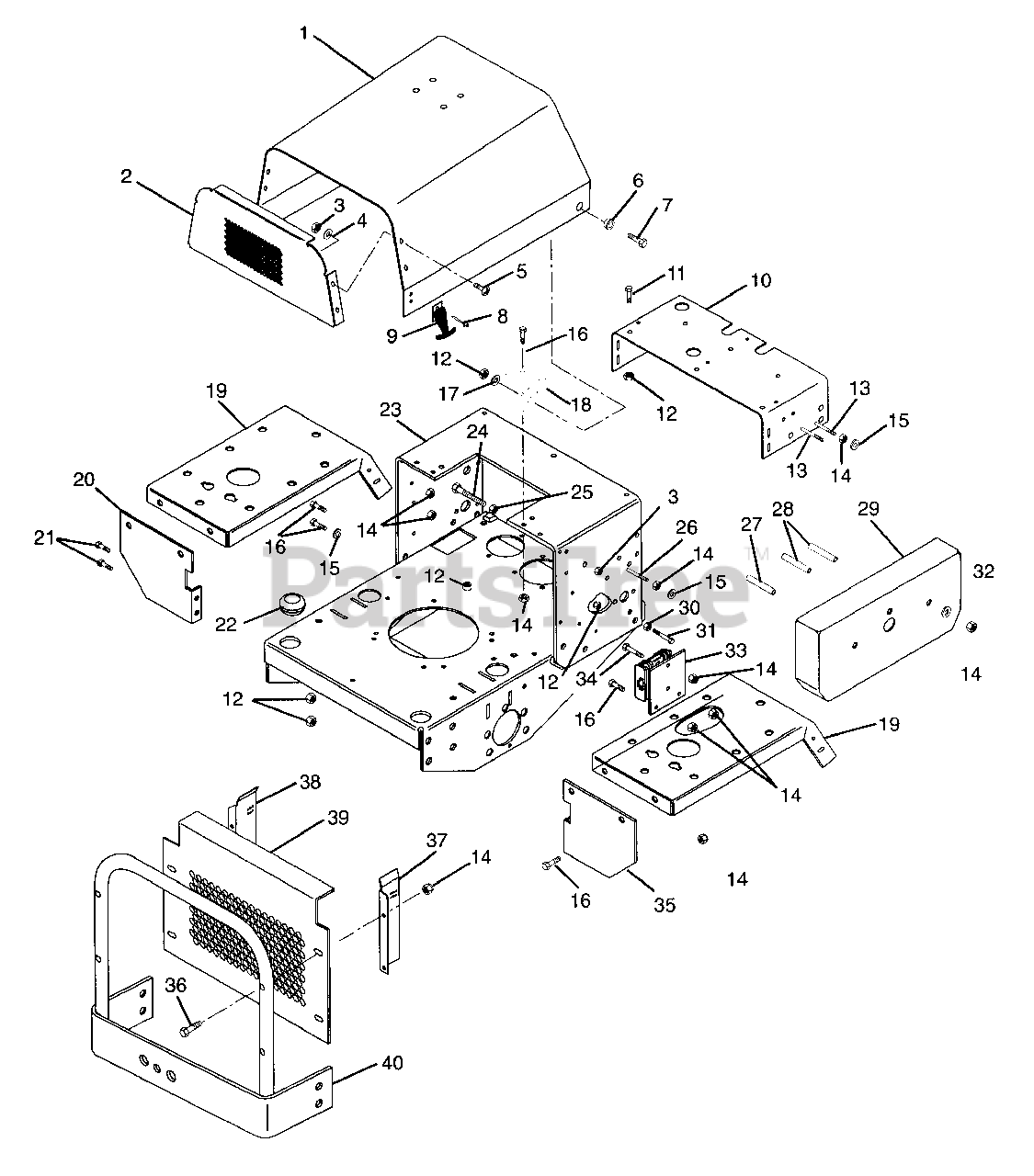

FRAME Parts Diagram

  • Title

1

Gravely 09222800

HOOD, ENGINE

Note: (013,014)

$

$

Not available

2

Gravely 09223000

GRILLE, HOOD
(Superseded to 09223051)

Note: (013,014)

$

$

Not available

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (015,016)

$0.99

$

In Stock, Qty 20+

0

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (013,014)

$5.49

$

In Stock, Qty 12

0

4

Gravely 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (013,014)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06113500

SCR-MCH .25-20 PAN HD

Note: (013,014)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

Note: (013,014)

$9.99

$

In Stock, Qty 15

0

7

Gravely 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

Note: (013,014)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 032661

RVT-STEEL
(Superseded to 06807500)

Note: (013,014)

$

$

Not available

9

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

Note: (Includes Holder) (013,014)

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 09209400

PANEL, SILKSCREEN
(Superseded to 59200500)

$

$

Not available

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (015,016)

$1.49

$

In Stock, Qty 20+

0

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (013,014)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05963200

BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (015,016)

$1.99

$

In Stock, Qty 20+

0

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (013,014)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (015,016)

$1.99

$

In Stock, Qty 20+

0

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (013,014)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (013,014)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09225200

BRKT, HOOD MTG R.H.
(Superseded to 09225253)

Note: (013,014)

$

$

Not available

Gravely 09225300

BRKT, HOOD MTG L.H.
(Superseded to 09225353)

Note: (013,014)

$

$

Not available

19

Gravely 09202300

FENDER PM200
(Superseded to 09202353)

$

$

Not available

20

Gravely 09224800

SPRT, FENDER L.H.
(Superseded to 09224853)

$

$

Not available

21

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07536600

GRMT (2.50 HOLE, .187 MAT'L)

$

$

Not available

23

Gravely 09226700

FRAME - PM200
(Superseded to 09226753)

$387.99

$

Usually ships in 4-12 days

0

24

Gravely 05966300

BLT-HEX .25-20X3.00 YWZC
(Superseded to 05902128)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

26

Gravely 05965000

BLT-HEX .312-18X3.75 YWZC
(Superseded to 05901936)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 09108400

SPACER .328X.462X2.50

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 09108300

SPACER .328X.462X2.75

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 09108200

GUARD, LINKAGE

$

$

Not available

30

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

32

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 09224100

PLATE, REG-RECT MTG.
(Superseded to 09224151)

Note: (013,014)

$

$

Not available

34

Gravely 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

Note: (013,014)

$2.99

$

In Stock, Qty 11

0

35

Gravely 09224700

SPRT, FENDER R.H.
(Superseded to 09224753)

$

$

Not available

36

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (013,014)

$1.99

$

In Stock, Qty 15

0

37

Gravely 09223900

BRKT, HOOD LATCH (R.H.)
(Superseded to 09223951)

Note: (013,014)

$

$

Not available

38

Gravely 09224000

BRKT, HOOD LATCH (L.H.)
(Superseded to 09224051)

Note: (013,014)

$

$

Not available

39

Gravely 09223600

BRKT, HOOD SUPPORT
(Superseded to 09223651)

Note: (013,014)

$

$

Not available

40

Gravely 09203700

WLDM'T, REAR GUARD
(Superseded to 09203751)

$

$

Not available
