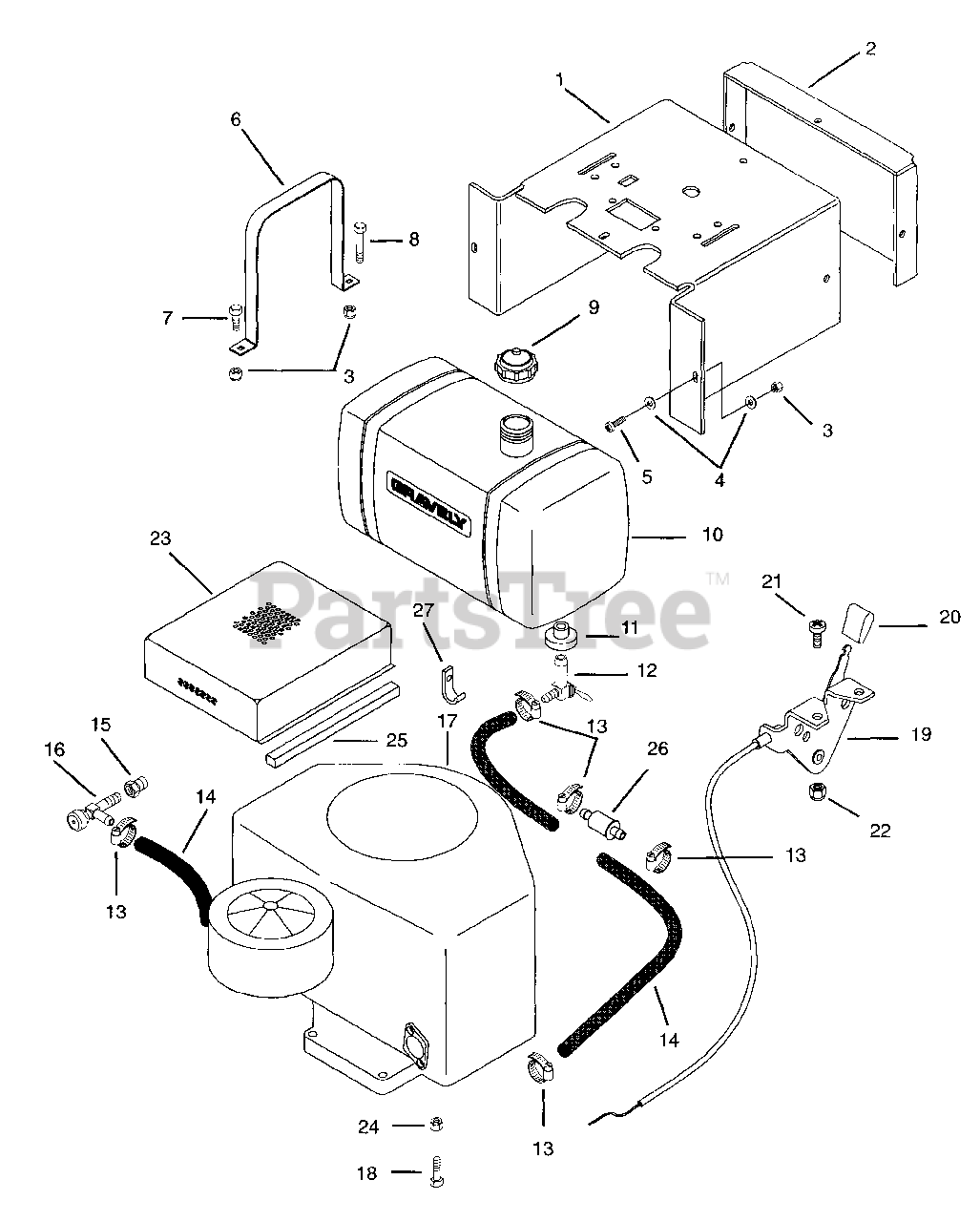

992013 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 09102200

PNL,SILKSCREEN
(Superseded to 59100300)

Note: (015,016)

$

$

Not available

Gravely 09222500

PANEL, SILKSCREEN

Note: (013,014)

$

$

Not available

2

Gravely 09106700

CVR,INSTRUMENT PANEL

$

$

Not available

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09220700

STRAP, FUEL TANK
(Superseded to 09220751)

$

$

Not available

7

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

9

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 09220600

TANK, FUEL PM200
(Superseded to 59200400)

$

$

Not available

11

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 09203000

FITTING, TANK

$

$

Not available

13

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

Note: (015,016)

$6.49

$

Usually ships in 4-12 days

0

Gravely 09222300

ADPT, OIL DRAIN M16X1.5-1/4NPT

Note: (013,014)

$33.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

17

Gravely 08248200

ENGINE, KOHLER CV20 PS-65542

Note: (015,016)

$

$

Not available

Gravely 082400

ENGINE, KAW (FD590V)

Note: (013,014)

$

$

Not available

18

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (015,016)

$3.99

$

In Stock, Qty 20+

0

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

Note: (013,014)

$2.99

$

Usually ships in 4-12 days

0

Gravely 05969600

BLT-HEX M8 X 1.25X55 YWZC

Note: (013,014)

$

$

Not available

19

Gravely 053237

ASM,THROTTLE CONTROL
(Superseded to 06923300)

Note: (015,016)

$

$

Not available

Gravely 053385

ASM, CHOKE CONTROL
(Superseded to 06923400)

Note: (015,016)

$

$

Not available

Gravely 06941100

CABLE, THROTTLE

Note: (013,014)

$47.99

$

Usually ships in 4-12 days

0

20

Gravely 044589

KNOB
(Superseded to 07501900)

$

$

Not available

21

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09223100

WLDM'T, PRE-CLEANER SCREN
(Superseded to 09223151)

Note: (013,014)

$

$

Not available

24

Gravely 06538500

NUT-LK-CTR M8-1.25 YWZC
(Superseded to 06541700)

Note: (013,014)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 09201700

PAD, PRE-CLEANER SCREEN

Note: (013,014)

$

$

Not available

26

Gravely 08811700

FILTER,FUEL

Note: (013,014)

$10.99

$

Usually ships in 4-12 days

0

27

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0
