992014 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) ELECTRIC CLUTCH & BRAKE LINKAGE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

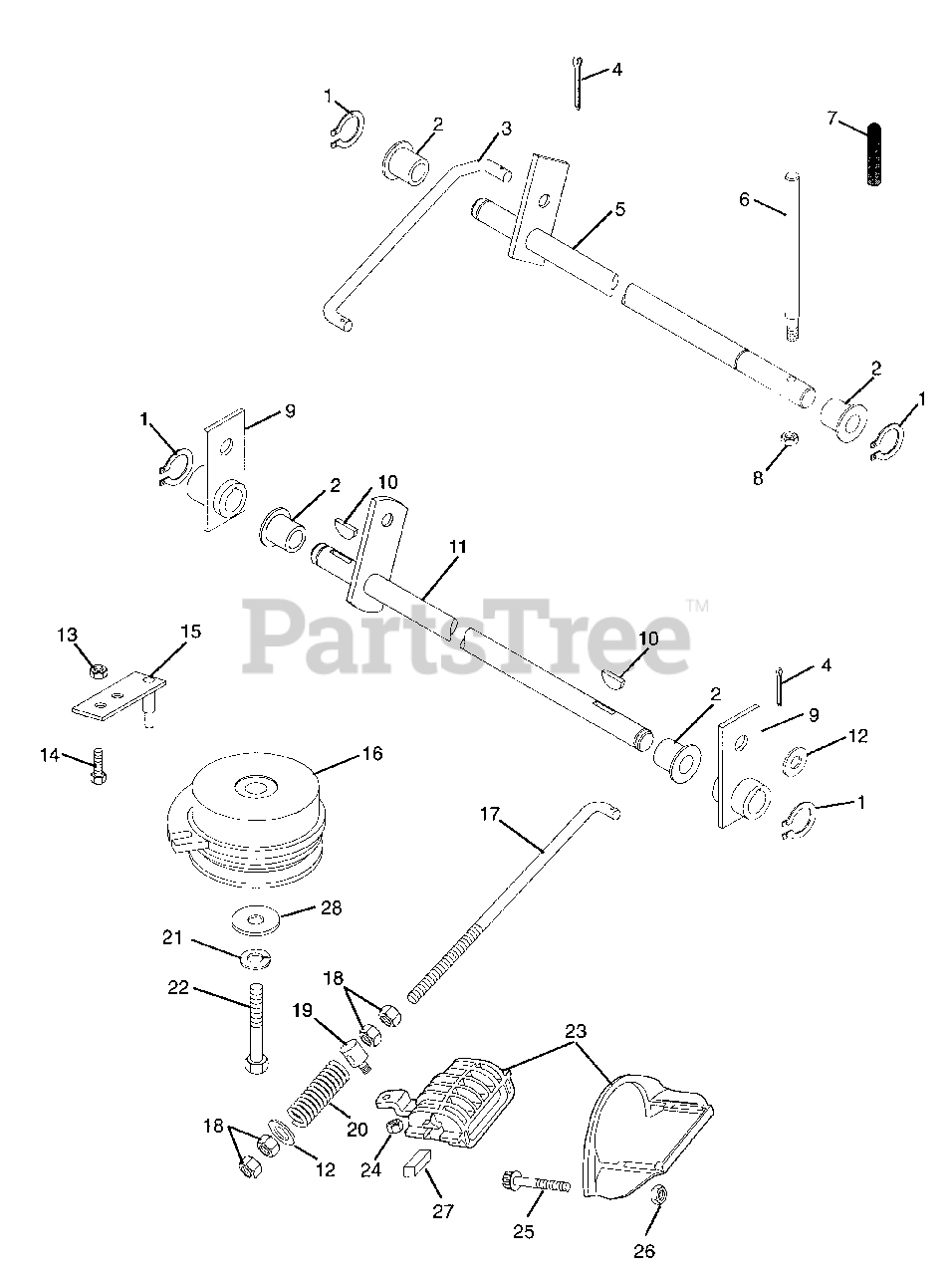

ELECTRIC CLUTCH & BRAKE LINKAGE Parts Diagram

  • Title

1

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

3

Gravely 09208200

ROD, BRAKE ACTUATING

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

5

Gravely 09203500

WLDM'T, BRAKE ACTUATING SHAFT

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 09104500

LVR,PTO ACTUATING

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06524400

NUT-HEX-JAM .437-20

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 09206600

WLDM'T, BRAKE ARM

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09203900

WLDM'T, BRAKE CROSS SHAFT

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

15

Gravely 09207700

WLDM'T, ELECT CLUTCH ANCHOR
(Superseded to 09207753)

$

$

Not available

16

Gravely 09225400

CLUTCH, ELECTRIC

$376.99

$

Usually ships in 4-12 days

0

17

Gravely 09209300

ROD, BRAKE

$

$

Not available

18

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09209100

PIVOT, BRAKE ROD
(Superseded to 09267300)

$7.49

$

In Stock, only 2 left!

0

20

Gravely 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

Note: (015,016)

$7.49

$

In Stock, Qty 14

0

Gravely 05946700

BLT-HEX M10 X 1.50X75
(Superseded to 05969700)

Note: (013,014)

$

$

Not available

23

Gravely 09205100

BRK,DISC R.H.

$

$

Not available

Gravely 09205000

BRK,DISC L.H.

$

$

Not available

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 053344

SCR, FLANGE .50-13X2.25 GR5
(Superseded to 08944700)

$

$

Not available

26

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

27

Gravely 09200600

PAD SET, DISK BRAKE

$60.99

$

In Stock, only 4 left!

0

28

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0
