992014 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) FRONT FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

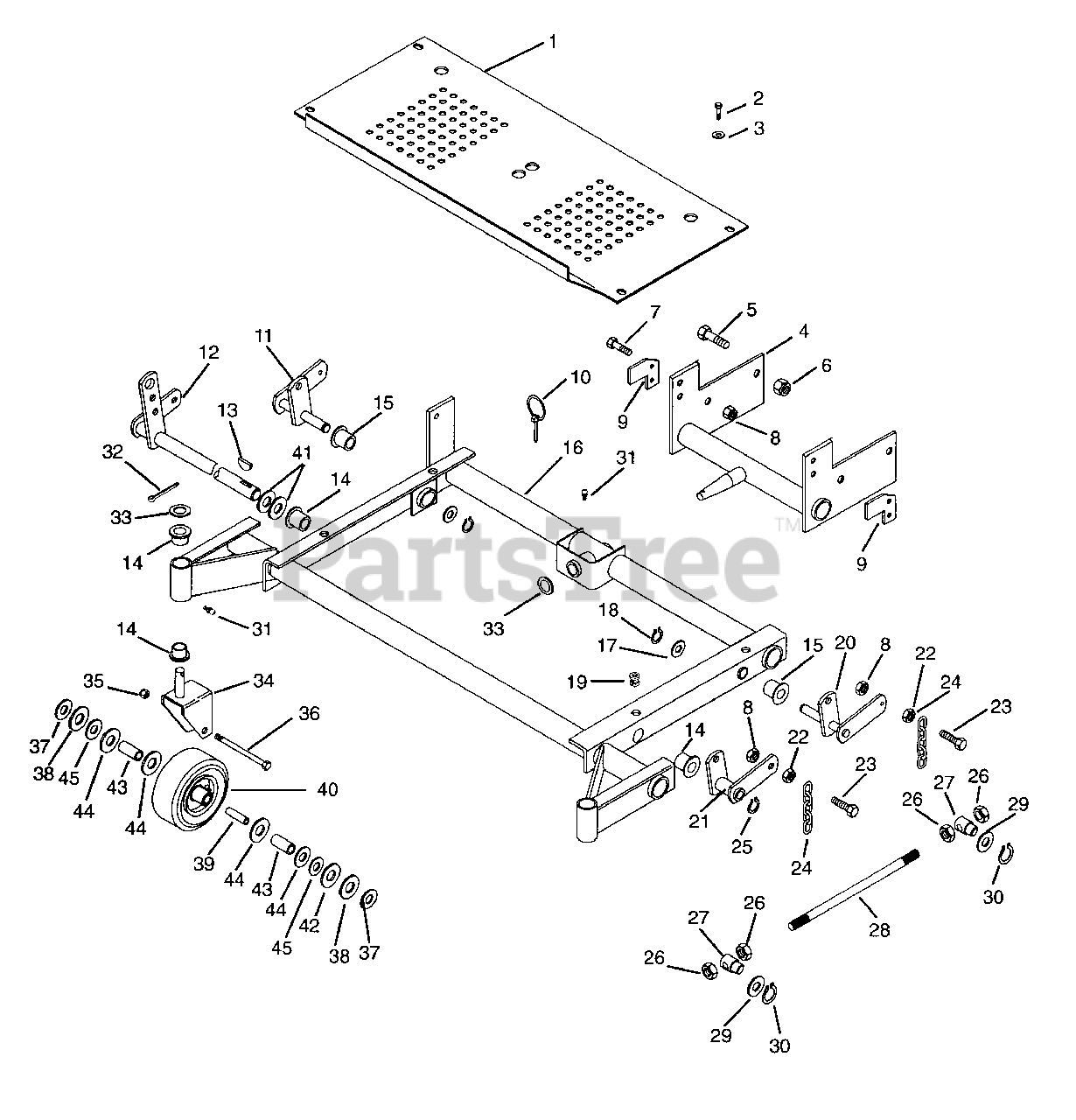

FRONT FRAME Parts Diagram

  • Title

1

Gravely 09203600

FOOTBOARD PM200
(Superseded to 09203653)

$

$

Not available

2

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09225100

WLDM'T, MWR FRAME MTG
(Superseded to 09225153)

$

$

Not available

5

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

6

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09220800

PLATE, PIVOT STOP
(Superseded to 09220853)

$

$

Not available

10

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 09205300

WLDM'T, LIFT ARM SHAFT (R.H.)

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 09204000

WLDM'T, MWR LIFT SHAFT, FRT

Note: (Front)

$

$

Not available

13

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

14

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

16

Gravely 09226800

FRAME - FRONT PM200
(Superseded to 09226853)

$

$

Not available

17

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 06527400

CLIP,U-TYPE EATON #C17453-1420

$

$

Not available

20

Gravely 09205400

WLDM'T, LIFT ARM SHAFT (L.H.)

Note: (R.H.)

$

$

Not available

21

Gravely 09204200

WLDM'T, LIFT ARM (FRT)

Note: (Front)

$

$

Not available

22

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

24

Gravely 09215300

CHAIN, LINK

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 050203

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

26

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 09212700

PIVOT, MWR LIFT

$

$

Not available

28

Gravely 09210200

TIE ROD, LIFT LEVER

$

$

Not available

29

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

32

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

34

Gravely 09206200

WELDMENT, CASTER
(Superseded to 09206253)

$157.99

$

Usually ships in 4-12 days

0

35

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

36

Gravely 05968400

BLT-HEX .50-13X8.00 GR5 YWZC

$8.49

$

In Stock, Qty 20+

0

37

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

38

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 09206100

AXLE,CASTER

$

$

Not available

40

Gravely 07145700

T/WHL ASSY 13X5-6 TURF TRAC RS

$

$

Not available

Gravely 07139000

TIRE, 13X5-6 TURF TRAC RS

Note: NS

$

$

Not available

41

Gravely 06428500

WSHR-FL-STL 1.063X2.00X.134

$3.49

$

Usually ships in 4-12 days

0

42

Gravely 09202700

END CAP

$8.49

$

Usually ships in 4-12 days

0

43

Gravely 05422800

BRG-ROLLER

$

$

Not available

44

Gravely 09202800

STOP WASHER

$

$

Not available

45

Gravely 05619000

FELT WASHER 3/4 ID #1444D

$

$

Not available
