992014 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

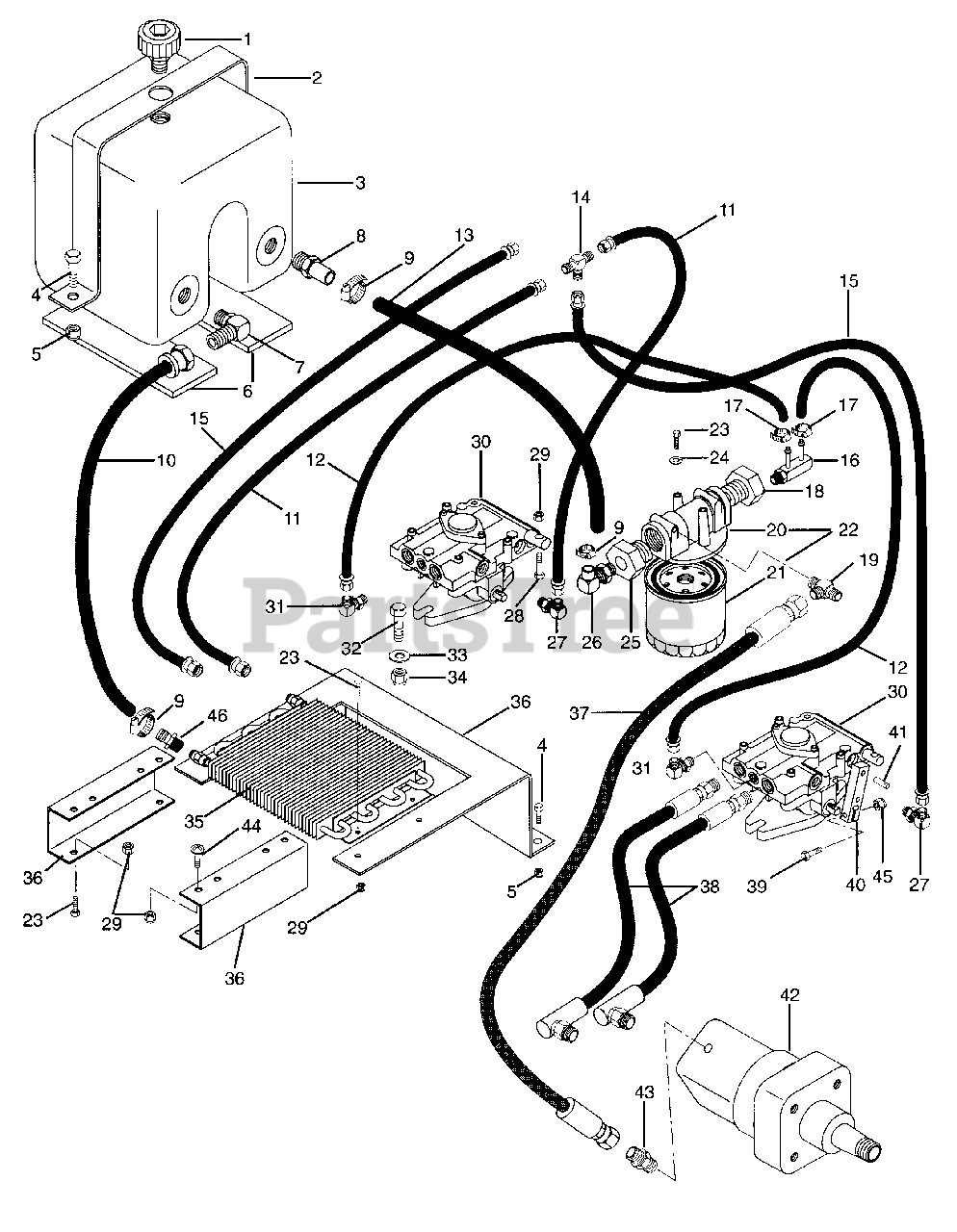

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 050507

CAP,FILTER
(Superseded to 08996400)

$36.99

$

In Stock, only 1 left!

0

2

Gravely 050525

STRAP,TANK
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 050272

TANK,HYDRAULIC
(Superseded to 09032900)

$

$

Not available

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

7

Gravely 046072

ADPTR-HYD EL 7/8 "O" TO 3/4
(Superseded to 07020000)

$

$

Not available

8

Gravely 045226

FTG-ADPTR 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 09106100

HOSE,HYD COOLER TO TANK

Note: (015,016)

$

$

Not available

Gravely 09223800

HOSE, HYD (OIL COOLER TO TANK)

Note: (013,014)

$

$

Not available

11

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

Note: (015,016)

$40.99

$

Usually ships in 4-12 days

0

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

Note: (013,014)

$40.99

$

Usually ships in 4-12 days

0

12

Gravely 09221300

HOSE, OIL FILTER TO PUMP

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 046379

HOSE .62 ID X .91 OD BLK
(Superseded to 00915100)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 021799

ADPT-TEE .56-18
(Superseded to 07021500)

$31.99

$

Usually ships in 4-12 days

0

15

Gravely 053103

HOSE,PUMP TO TEE
(Superseded to 08856400)

Note: (015,016)

$46.99

$

Usually ships in 4-12 days

0

Gravely 053103

HOSE,PUMP TO TEE
(Superseded to 08856400)

Note: (013,014)

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 081178

Fitting-Pipe .563-18

$

$

Not available

17

Gravely 052577

CLAMP-HOSE WRM .44/.78X.53 F06
(Superseded to 06922100)

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 07026500

ADPT, HYD 0510-12-06

$

$

Not available

19

Gravely 07027500

ADPT, HYD (PARKER 013T-2-4)

$

$

Not available

20

Gravely 09221100

HEAD, OIL FILTER

$

$

Not available

21

Gravely 04108100

REPLACEMENT ELEMENT

$51.99

$

Usually ships in 4-12 days

0

22

Gravely 09204900

ASM,FILTER 12AT-10C-N-X-MM-RI

$

$

Not available

23

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

24

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

25

Gravely 07020600

ADPT-HYD 0510-12-10

$

$

Not available

26

Gravely 050192

FITTING
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

28

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

29

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 053330

PUMP, BDP-10L
(Superseded to 09279900)

$1263.99

$

Usually ships in 4-12 days

0

31

Gravely 040723

ADPT 2503-4-6 OR 6801-6-4
(Superseded to 08936400)

$

$

Not available

32

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

36

Gravely 09224900

BRKT, OIL COOLER
(Superseded to 09224951)

Note: (015,016)

$

$

Not available

Gravely 09222100

BRKT, OIL COOLER (18HP KAW)
(Superseded to 09222151)

Note: (013,014)

$

$

Not available

37

Gravely 092219000

Hose Assembly-Motor to Oil Filter

$

$

Not available

38

Gravely 09220500

ASM, HOSE WHL MTR TO PUMP

$

$

Not available

39

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

40

Gravely 08880700

ARM, PUMP ACTUATING

$

$

Not available

41

Gravely 051889

PIN-DWL .312X1.25
(Superseded to 05808000)

$6.49

$

Usually ships in 4-12 days

0

42

Gravely 09200500

MOTOR, WHEEL HB 14 07 53 7 P

$879.99

$

Usually ships in 4-12 days

0

43

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

$6.49

$

Usually ships in 4-12 days

0

44

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 07032400

ADAPTOR, MALE 3/8X1/2

$3.49

$

Usually ships in 4-12 days

0
