992014 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) SEAT Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

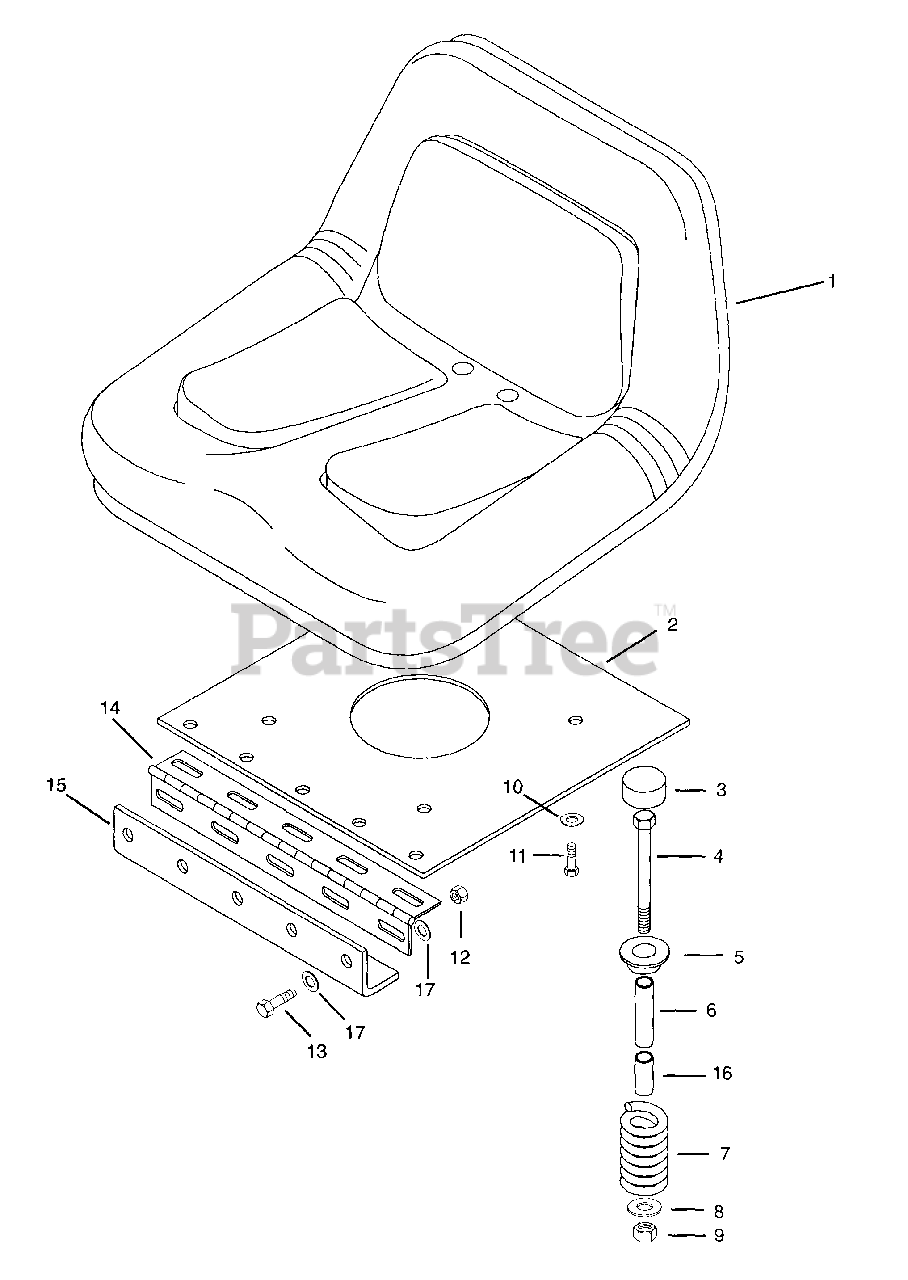

SEAT Parts Diagram

  • Title

1

Gravely 09112400

SEAT, V-560 HIGH BACK

$

$

Not available

Gravely 044144

KIT,ARM REST G SERIES

Note: NS

$

$

Not available

2

Gravely 09106800

PLT,SEAT MTG

$

$

Not available

3

Gravely 011768

MOLDED CAP 1.5OD,1.0ID,.44THK
(Superseded to 07521100)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 005741

CAP, VALVE SPRING

$

$

Not available

6

Gravely 09107900

BUSHING, SPLIT ROLLED

$

$

Not available

7

Gravely 053368

SG-COMP .148X1.095X1.75
(Superseded to 08328400)

$

$

Not available

8

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05952200

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05952200

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

15

Gravely 09106900

BRKT,SEAT SUPPORT

$

$

Not available

16

Gravely 09222900

BUSHING, SPLIT ROLLED

Note: (013,014)

$

$

Not available

17

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
