992014 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) STEERING & DIRECTION CONTROLS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

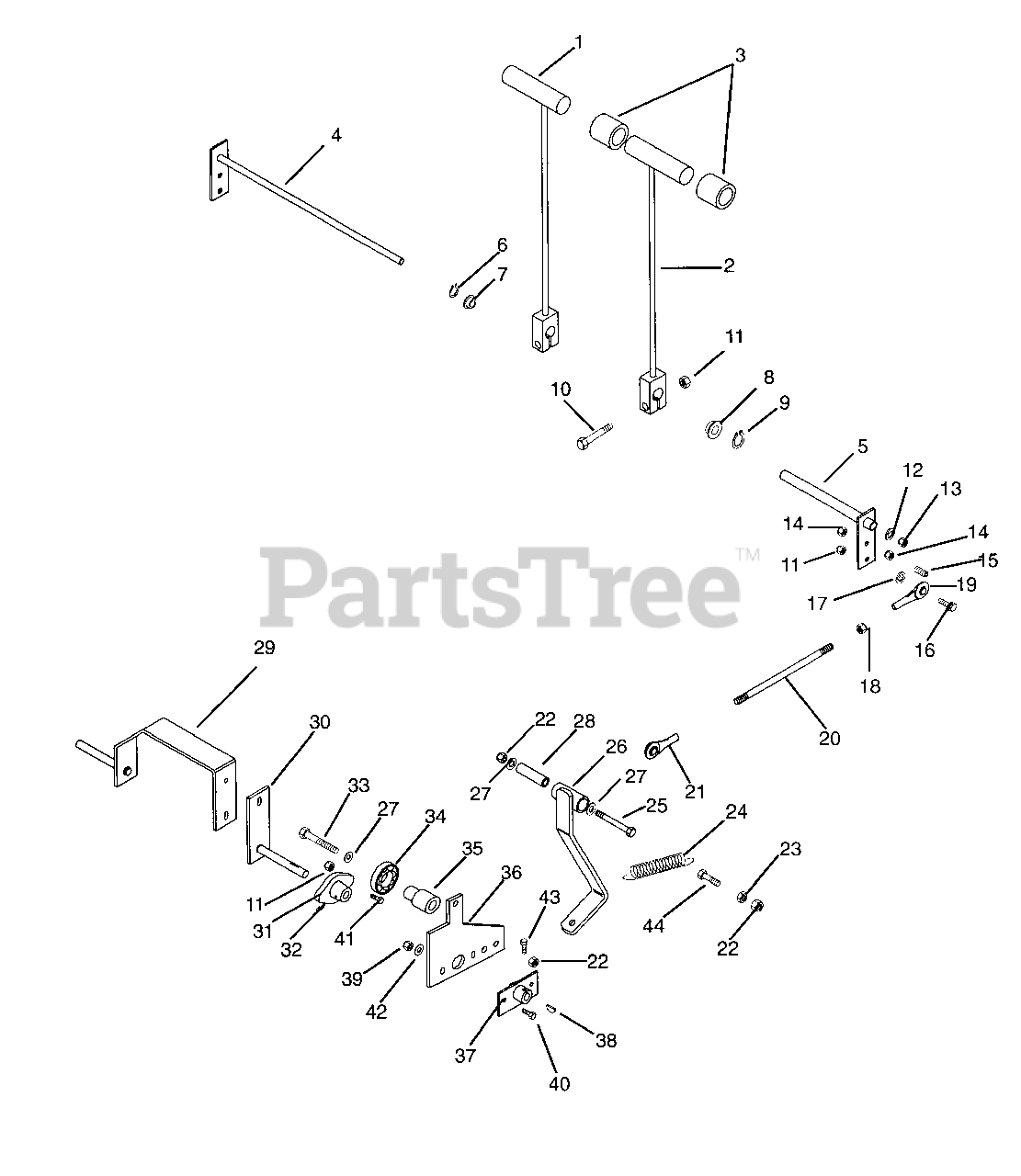

STEERING & DIRECTION CONTROLS Parts Diagram

  • Title

1

Gravely 09102700

WLDMT,STEERING LEVER L.H.

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09102600

WLDMT,STEERING LEVER R.H.

$

$

Not available

3

Gravely 09108500

GRIP, T-BAR

$

$

Not available

4

Gravely 09203300

WLDM'T, STEERING ROD

$275.99

$

Usually ships in 4-12 days

0

5

Gravely 09203200

WLDM'T, STEERING TUBE

$124.99

$

Usually ships in 4-12 days

0

6

Gravely 053329

RG-RTNG-EXT .500X.050 (SNAP)
(Superseded to 05717100)

$3.49

$

In Stock, Qty 14

0

7

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 16

0

14

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

15

Gravely 06003400

SCR-SET .32-18X1.50 SKHCUP

$

$

Not available

16

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

17

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

Note: (LH)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 045002

ALIGNABALL, 5/16 RH THREAD
(Superseded to 03787100)

$19.99

$

In Stock, only 3 left!

0

20

Gravely 09105300

ROD,STEERING ADJ .31-24 X 10

$

$

Not available

21

Gravely 053366

ROD END, 5\16 LH - FEMALE
(Superseded to 09107800)

$

$

Not available

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 051233

SG-TENS .063X.62X2.75
(Superseded to 08345500)

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

26

Gravely 09107400

WLDM'T, NEUTRAL DETENT

$

$

Not available

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 049022

BUSH.,S.385X.610X1.80 ST
(Superseded to 08831500)

$6.99

$

In Stock, only 2 left!

0

29

Gravely 052682

WLDMT,PUMP CONTROL R.H.
(Superseded to 08848400)

$

$

Not available

30

Gravely 052683

WLDMT,PUMP CONTROL L.H.
(Superseded to 08848500)

$117.99

$

Usually ships in 4-12 days

0

31

Gravely 01522000

BUSHING, FLANGED

$36.99

$

In Stock, only 1 left!

0

32

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

33

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.99

$

In Stock, Qty 20+

0

34

Gravely 05407900

BRG-BALL .500X1.375X.437
(Superseded to 05408000)

$7.49

$

In Stock, Qty 20+

0

35

Gravely 091072

HUB, BRG. MOUNT
(Superseded to 09107200)

$

$

Not available

36

Gravely 091031

ARM, SPEED CONTROL
(Superseded to 01539700)

$28.99

$

Usually ships in 4-12 days

0

37

Gravely 015255

SG-TENS .091X.500X5.500
(Superseded to 08327500)

$

$

Not available

38

Gravely 124547

KEY-WDRF .125X.75
(Superseded to 06608600)

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

42

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0
