992015 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000124 & Above) 50" MOWER DRIVE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

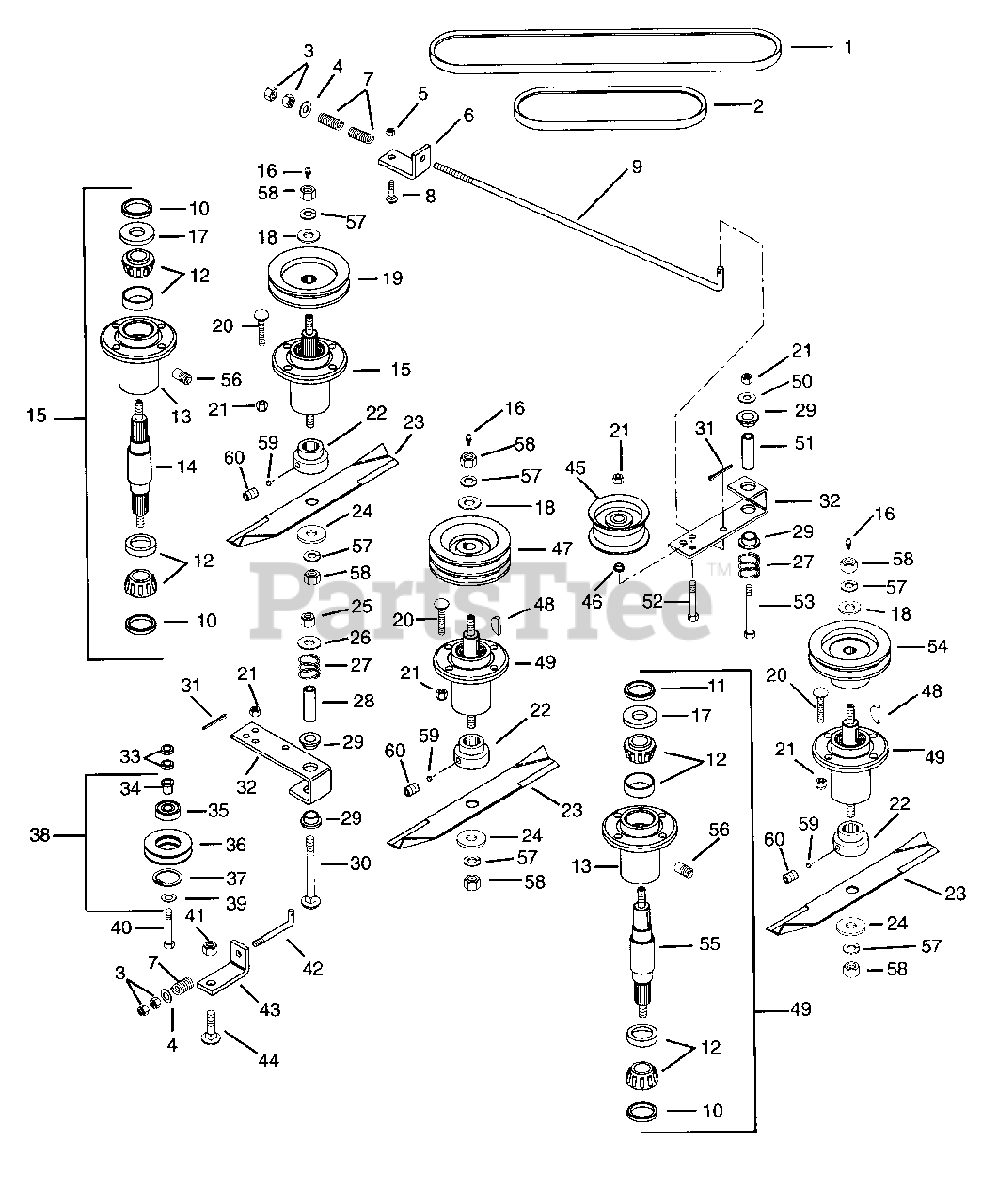

50" MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07228700

Drive Belt 54.90 x 17/32

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

Right Spindle Belt 18.05 x .495
(Superseded to 07220000)

$27.99

$

In Stock, only 3 left!

0

3

Gravely 06529400

Nut-Hex .375 - 16 Grade 2
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 4 left!

0

8

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.0 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

9

Gravely 031913

Rod-Idler L.H.
(Superseded to 08654100)

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, Qty 11

0

11

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

12

Gravely 038199

Assembly-Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

13

Gravely 08894500

Bearing Housing

$

$

Not available

14

Gravely 08898600

Spindle Shaft
(Superseded to 58802800)

$85.99

$

In Stock, only 3 left!

0

15

Gravely 58802300

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

16

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

17

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

18

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 08894900

Sheave
(Superseded to 58803500)

$119.99

$

Usually ships in 4-12 days

0

20

Gravely 06215300

Bolt-Round Head Square Neck .38 - 16 x 1.50
(Superseded to 06224200)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06529600

Nut-Locking-Center .375 - 16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 046998

Blade 50 Inch Mower
(Superseded to 08779200)

$26.99

$

In Stock, Qty 18

0

24

Gravely 06435200

Washer
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

25

Gravely 06536300

Nut-Locking-Center .50 - 13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

27

Gravely 020444

Spring-Compression .085 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 034119

Bushing-Steel .560 x .750 x 2.44
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0

29

Gravely 049669

Bushing-Flange .762 x 1.0 x .580 x 1.48

$

$

Not available

30

Gravely 06223000

Bolt-Round Head Square Neck .50 - 13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, only 2 left!

0

31

Gravely 06706900

Pin-Center .09 x .75

$0.99

$

In Stock, Qty 5

0

32

Gravely 034120

Arm-Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

33

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 10

0

34

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 038898

Bearing - Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

36

Gravely 038896

Sheave-Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

37

Gravely 018960

Ring-Retaining Internal 2.05 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 038900

Assembly-Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

39

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

41

Gravely 06536300

Nut-Locking-Center .50 - 13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

42

Gravely 038714

Rod-Idler
(Superseded to 08876000)

$

$

Not available

43

Gravely 038713

Bracket-Belt Tensioner
(Superseded to 08928800)

$

$

Not available

44

Gravely 06223100

Bolt-Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

45

Gravely 034286

Idler-Flat 4 - .687 x .38
(Superseded to 07327800)

$79.99

$

In Stock, Qty 15

0

46

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, Qty 9

0

47

Gravely 08894800

Sheave
(Superseded to 08895900)

$

$

Not available

48

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

49

Gravely 58802400

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

50

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

51

Gravely 034938

Bushing-Steel .437 x .750 x 2.44
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

52

Gravely 05962900

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

53

Gravely 05960900

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901818)

$3.99

$

Usually ships in 4-12 days

0

54

Gravely 08895000

Sheave
(Superseded to 08895500)

$

$

Not available

55

Gravely 08898500

Spindle Shaft
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

56

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0

57

Gravely 06300700

Washer-Locking .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

58

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

59

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

60
