992015 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000124 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

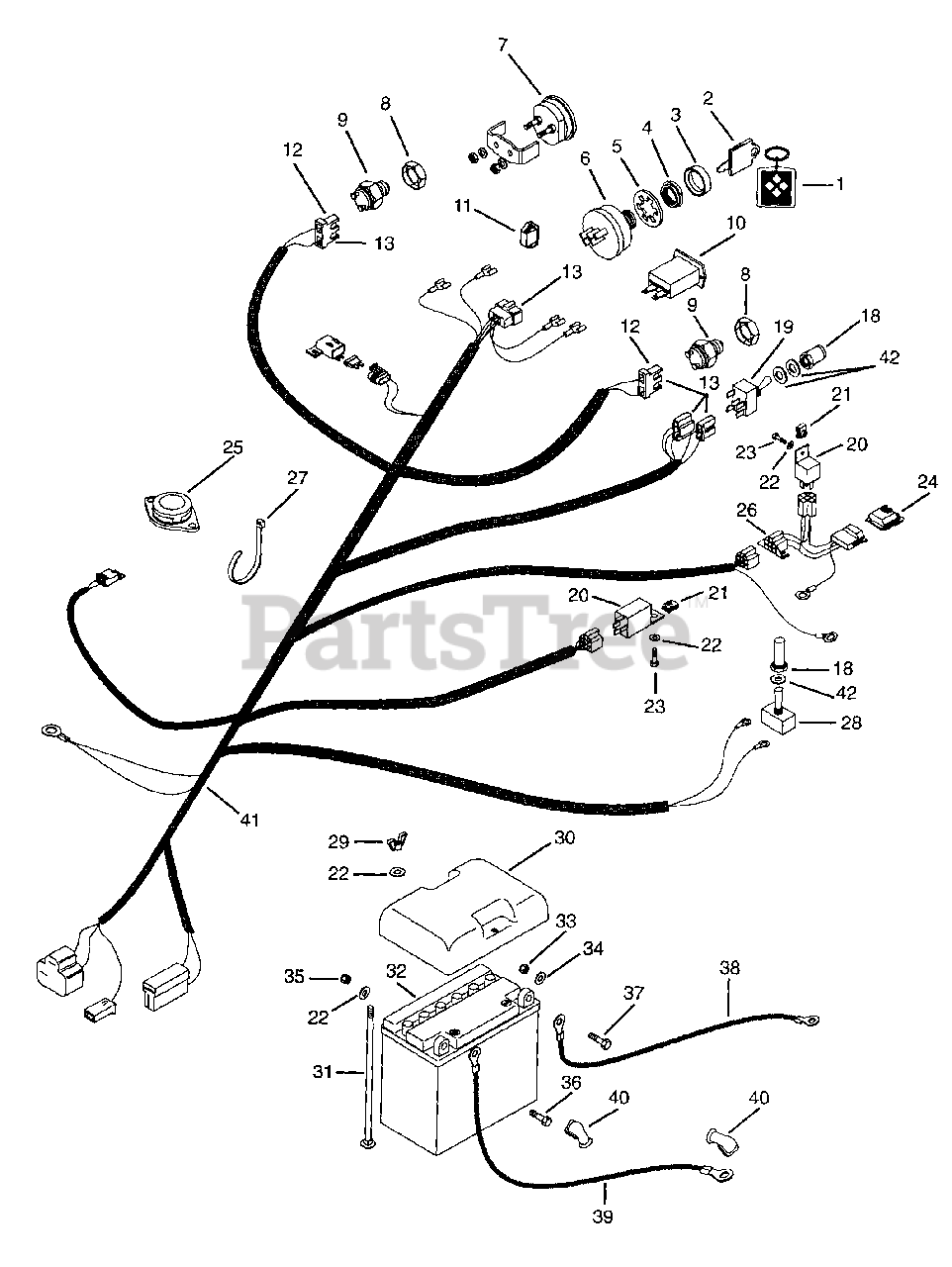

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 15

0

3

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 7

0

4

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 06306900

Washer-Lock Internal .625 x .045
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

7

Gravely 021848

Gauge-Ammeter
(Superseded to 03490800)

$

$

Not available

8

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

10

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 3 left!

0

11

Gravely 050673

Light-Indicator
(Superseded to 05128700)

Note: (015,016)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 050673

Light-Indicator
(Superseded to 05128700)

Note: (013,014)

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 042176

Connector-2-Wire Switch 2
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

15

Gravely 045037

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

16

Gravely 045920

Assembly-Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

17

Gravely 045923

Terminal-For 10-12 Ga Wire
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 09207600

Boot

$45.99

$

Usually ships in 4-12 days

0

19

Gravely 045848

Switch Assembly
(Superseded to 03454900)

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 6

0

21

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

22

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 13

0

23

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 7

0

24

Gravely 09044200

Module-Time Delay

$71.99

$

In Stock, only 1 left!

0

25

Gravely 036542

Switch-Seat 4

$

$

Not available

26

Gravely 09040000

Adapter Harness

Note: (013,014)

$

$

Not available

26

Gravely 09044100

Adapter Harness

Note: (015,016)

$47.99

$

Usually ships in 4-12 days

0

27

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 03437900

Switch Assembly

$71.99

$

Usually ships in 4-12 days

0

29

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

30

Gravely 044348

Cover-Battery
(Superseded to 04912900)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 06220400

Bolt-Round Head Square Neck Grade 25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, Qty 7

0

32

Gravely 78509300

12 Volt Battery (8 HP)

Note: (8 HP)

$

$

Not available

33

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 6

0

35

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 7

0

37

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

38

Gravely 08840400

Cable-Negative Battery

Note: (015,016)

$17.99

$

Usually ships in 4-12 days

0

38

Gravely 09222700

Cable-Negative Battery
(Superseded to 03288200)

Note: (013,014)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 042129

Cable-Battery To Solenoid
(Superseded to 08816700)

Note: (015,016)

$

$

Not available

39

Gravely 09222600

Cable-Positive Battery

Note: (013,014)

$

$

Not available

40

Gravely 03384700

Boot Insulator

$

$

Not available

41

Gravely 09201600

Harness-Wiring

Note: (015,016)

$

$

Not available

41

Gravely 09225500

Harness-Wiring

Note: (013,014)

$

$

Not available

42

064366

Washer-Flat-Steel .344 x .688 x .065

$

$

Not available
