992015 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000124 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

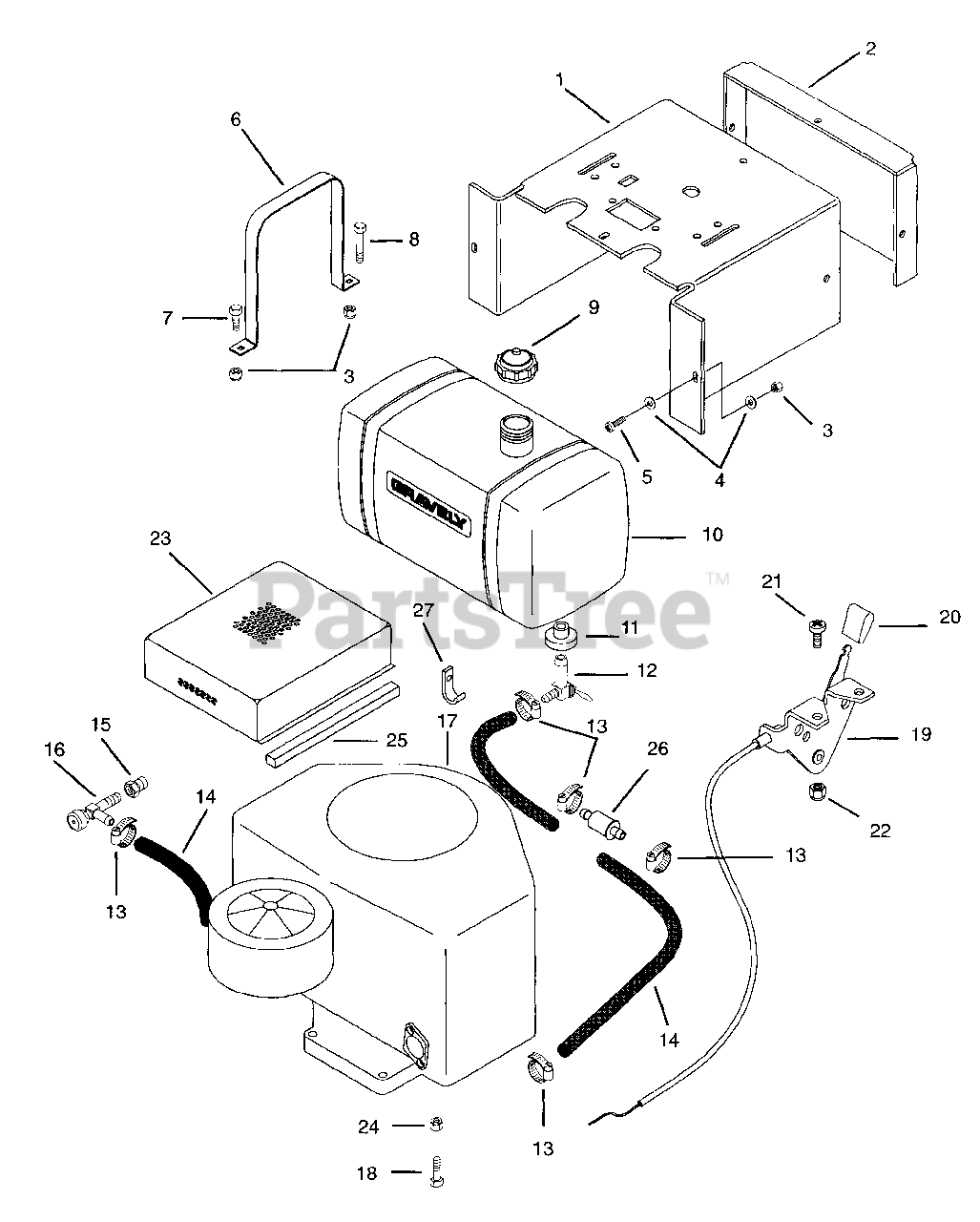

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 09102200

Panel-Silkscreen
(Superseded to 59100300)

Note: (015,016)

$

$

Not available

1

Gravely 09222500

Panel-Silkscreen

Note: (013,014)

$

$

Not available

2

Gravely 09106700

Cover-Instrument Panel

$

$

Not available

3

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 06118000

Screw-Machine-Hex-Washer-Head .25-20 x .75
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

6

Gravely 09220700

Strap-Fuel Tank
(Superseded to 09220751)

$

$

Not available

7

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

8

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

9

Gravely 048856

Cap-Fuel Tank
(Superseded to 07533400)

$23.99

$

In Stock, only 1 left!

0

10

Gravely 09220600

Tank-Fuel PM 200
(Superseded to 59200400)

$

$

Not available

11

Gravely 050246

Bushing
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 09203000

Fitting-Tank

$

$

Not available

13

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

Note: (015,016)

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 09222300

Adapter-Oil Drain

Note: (013,014)

$33.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$40.99

$

Usually ships in 4-12 days

0

17

082482

Engine-Kohler CV20

Note: (015,016)

$

$

Not available

17

Gravely 082400

Engine-Kawasaki

Note: (013,014)

$

$

Not available

18

Gravely 07414100

Screw-Tapping-Hex-Washer-Head .375-16 x 1.0
(Superseded to 07417500)

Note: (015,016)

$3.99

$

In Stock, Qty 16

0

18

Gravely 05964900

Bolt-Hex M8 x 1.25 x 25 Grade 8

Note: (013,014)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 05969600

Bolt-Hex M8 x 1.25 x 55

Note: (013,014)

$

$

Not available

19

Gravely 053237

Assembly-Throttle Control
(Superseded to 06923300)

Note: (015,016)

$

$

Not available

19

Gravely 053385

Assembly-Choke-Kohler
(Superseded to 06923400)

Note: (015,016)

$

$

Not available

19

Gravely 06941100

Assembly-Throttle Control

Note: (013,014)

$47.99

$

Usually ships in 4-12 days

0

20

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

21

Gravely 06116700

Screw-Machine-Hex-Washer-Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06536000

Nut-Locking-Nylon w/Insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09223100

Weldment-Pre-Cleaner Screen
(Superseded to 09223151)

Note: (013,014)

$

$

Not available

24

Gravely 06538500

Nut-Locking-Center M8-1.25
(Superseded to 06541700)

Note: (013,014)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 09201700

Pad-Pre-Cleaner Screen

Note: (013,014)

$

$

Not available

26

Gravely 08811700

Filter-Fuel

Note: (013,014)

$10.99

$

Usually ships in 4-12 days

0

27

Gravely 06909400

J-Clamp

$3.99

$

In Stock, only 2 left!

0
