992016 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) FRONT FRAME Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

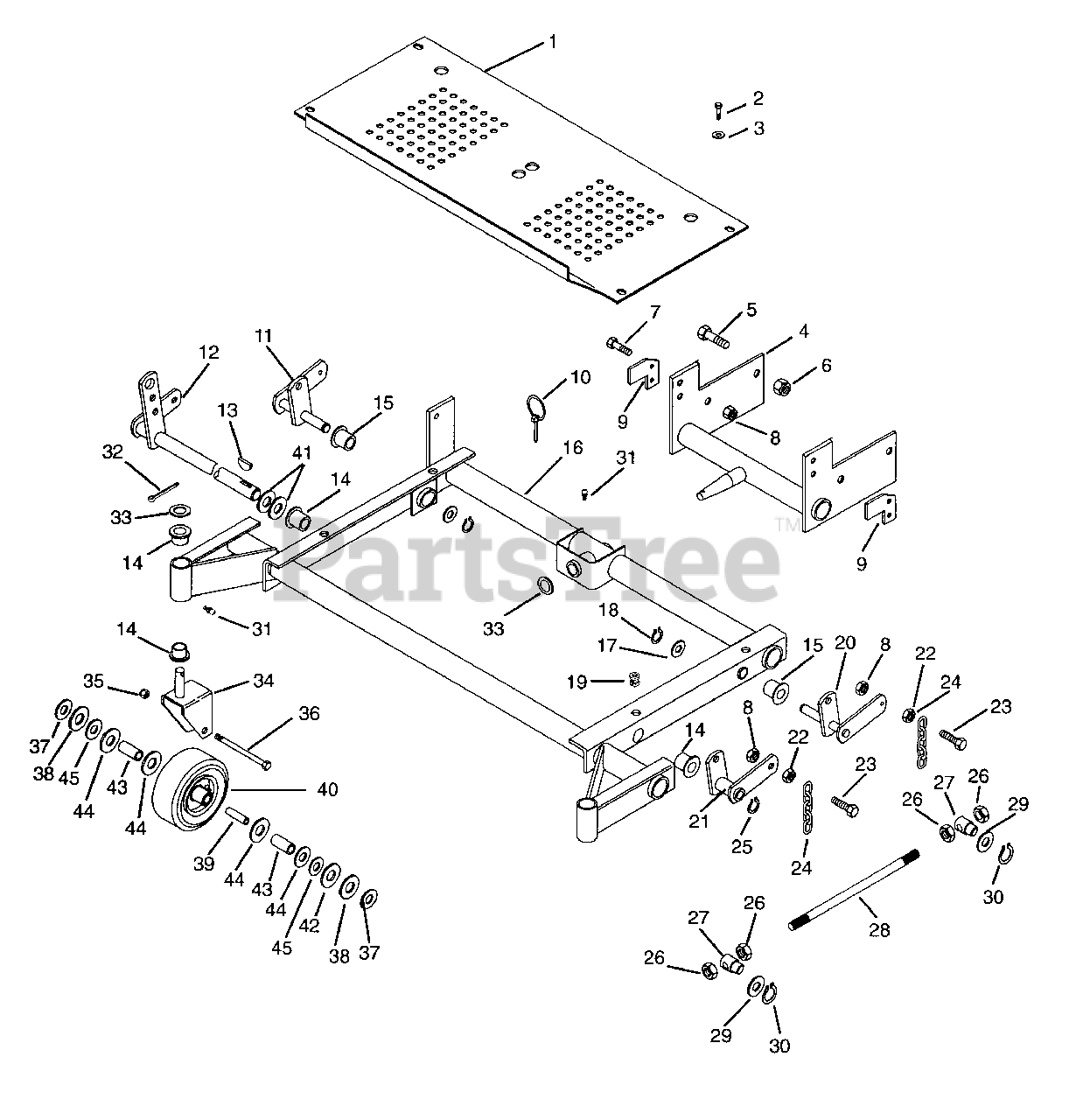

FRONT FRAME Parts Diagram

  • Title

1

Gravely 09203600

Footboard PM200
(Superseded to 09203653)

$

$

Not available

2

Gravely 06118000

Screw-Machine-Hex-Washer-Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

4

Gravely 09225100

Weldment-Mower Frame Mounting
(Superseded to 09225153)

$

$

Not available

5

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

7

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09220800

Plate-Pivot Stop
(Superseded to 09220853)

$

$

Not available

10

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 09205300

Weldment-Lift Arm Shaft

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 09204000

Weldment-Mower Lift Shaft (Front)

Note: (Front)

$

$

Not available

13

Gravely 124553

Key-Woodruff .25 x 1.0
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

16

092268

Weldment-Front Frame PM200

$

$

Not available

17

Gravely 011223

Bearing-N-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

19

Gravely 06527400

Clip U-Type

$

$

Not available

20

Gravely 09205400

Weldment-Lift Arm Shaft (R.H.)

Note: (R.H.)

$

$

Not available

21

Gravely 09204200

Weldment-Lift Arm (Front)

Note: (Front)

$

$

Not available

22

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

23

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

24

Gravely 09215300

Chain-Link

$8.99

$

Usually ships in 4-12 days

0

25

Gravely 050203

Ring-Retaining-External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 06537300

Nut .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 09212700

Pivot-Mower Lift

$

$

Not available

28

Gravely 09210200

Tie Rod-Lift Lever

$

$

Not available

29

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05709200

Ring-Retaining-External .625 x .050

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

32

Gravely 06712600

Pin-Center .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

33

Gravely 019340

Bearing-R-Thrust 1.022 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

34

Gravely 09206200

Weldment-Caster
(Superseded to 09206253)

$153.99

$

Usually ships in 4-12 days

0

35

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

36

Gravely 05968400

Bolt-Hex .50-13 x 8.00

$7.99

$

In Stock, Qty 11

0

37

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

38

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

39

Gravely 09206100

Axle-Caster

$

$

Not available

40

071457

Tire/Wheel Assembly 13 x 5-6

$

$

Not available

40

Gravely 07139000

Tire 13 x 5-6 Turf Trac

Note: NS

$

$

Not available

41

Gravely 06428500

Washer-Flat-Steel .063 x 2.000 x .134

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 09202700

End Cap

$7.99

$

Usually ships in 4-12 days

0

43

Gravely 05422800

Bearing-Roller

$29.99

$

Usually ships in 4-12 days

0

44

Gravely 09202800

Stop Washer

$

$

Not available

45

056190

Felt-Washer

$

$

Not available
