992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) 50" DECK AND SPINDLES Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

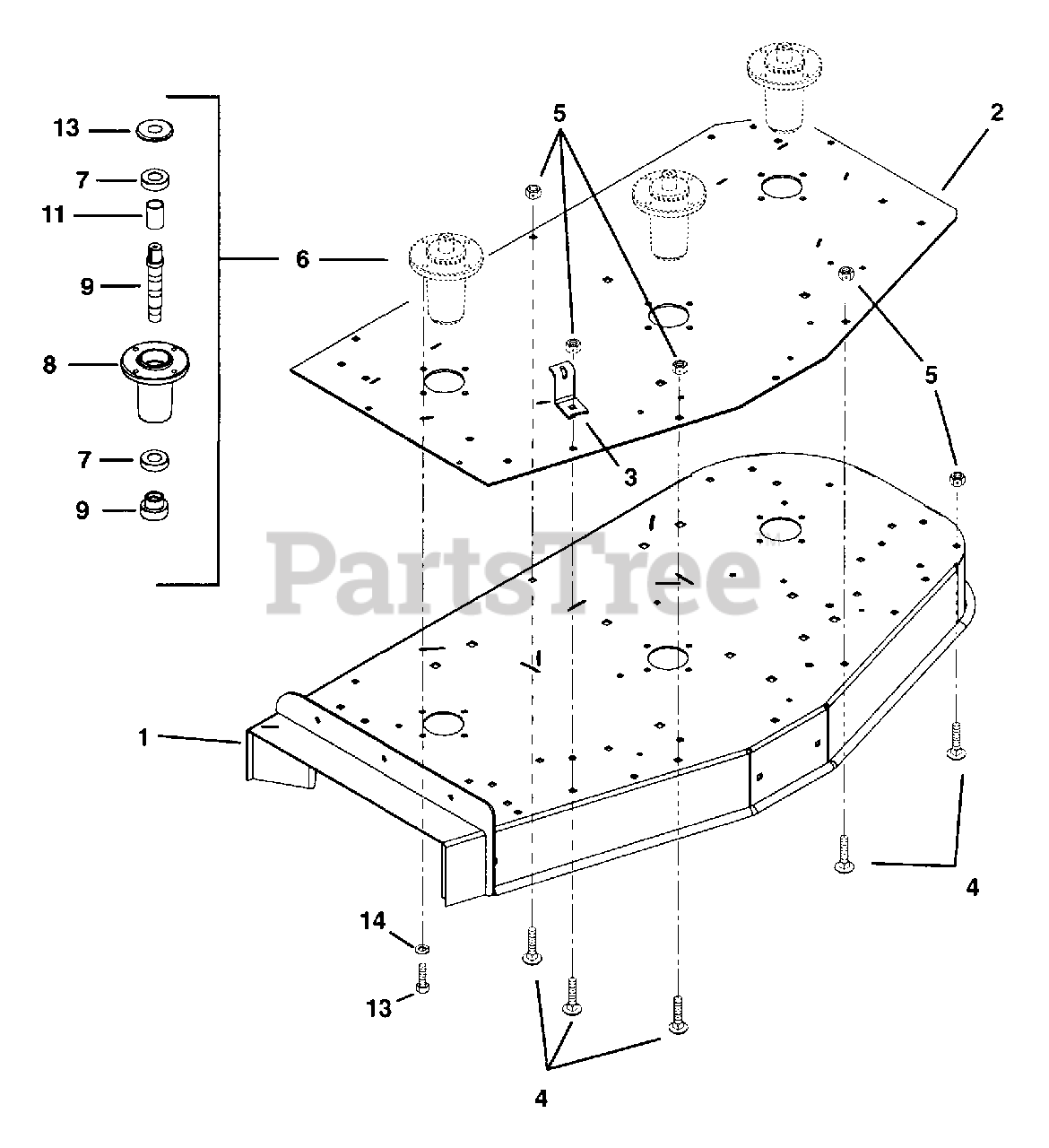

50" DECK AND SPINDLES Parts Diagram

  • Title

1

Gravely 09242100

WELDMENT, 50" DECK (SD DSCHRG)

Note: (Side Discharge)

$

$

Not available

2

Gravely 09243000

PLATE, 50" REINFORCEMENT

$

$

Not available

3

Gravely 09245300

ANCHOR, SPRING

$

$

Not available

4

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 09239400

ASS'Y, SPINDLE (TORRING) L-HUB
(Superseded to 59114000)

Note: (Contains Items 6-11)

$273.99

$

In Stock, Qty 14

0

7

Gravely 05434700

BEARING, RG 1.00X2.0467X.591
(Superseded to 05400730)

$21.99

$

In Stock, Qty 10

0

8

Gravely 09237800

HOUSING, BEARING

$

$

Not available

9

Gravely 09237900

SHAFT, SPINDLE

$

$

Not available

10

Gravely 09238000

HUB

$

$

Not available

11

Gravely 09238100

SPACER 1.010 X 1.250 X 1.875

$

$

Not available

12

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0
