992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) 50" DISCHARGE CHUTE AND BAFFLES Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

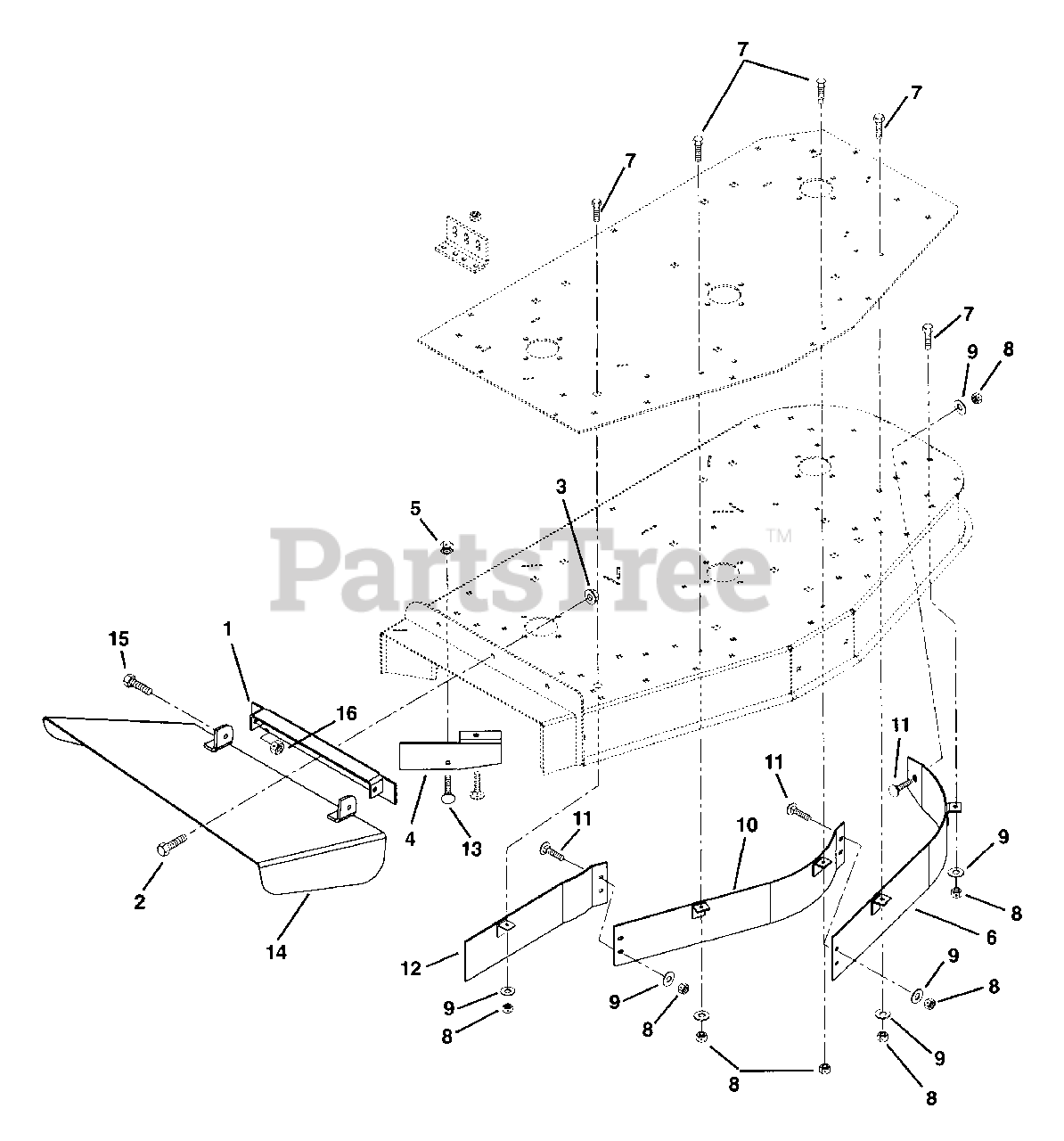

50" DISCHARGE CHUTE AND BAFFLES Parts Diagram

  • Title

1

Gravely 09238300

WELDMENT, DISCH. CHUTE BRACKET
(Superseded to 00253253)

$92.99

$

Usually ships in 4-12 days

0

2

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

3

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09242200

DEFLECTOR
(Superseded to 09242251)

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09242300

BAFFLE - LEFT FRONT - 50"
(Superseded to 09242351)

$

$

Not available

7

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

9

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09242400

BAFFLE - CENTER FRONT - 50"
(Superseded to 09242451)

$

$

Not available

11

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09247300

BAFFLE - RIGHT FRONT - 50"

$

$

Not available

13

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 09242700

WELDMENT, DSCHRG.CHUTE 50"
(Superseded to 09250853)

$260.99

$

Usually ships in 4-12 days

0

15

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
