992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) ENGINE AND CLUTCH Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

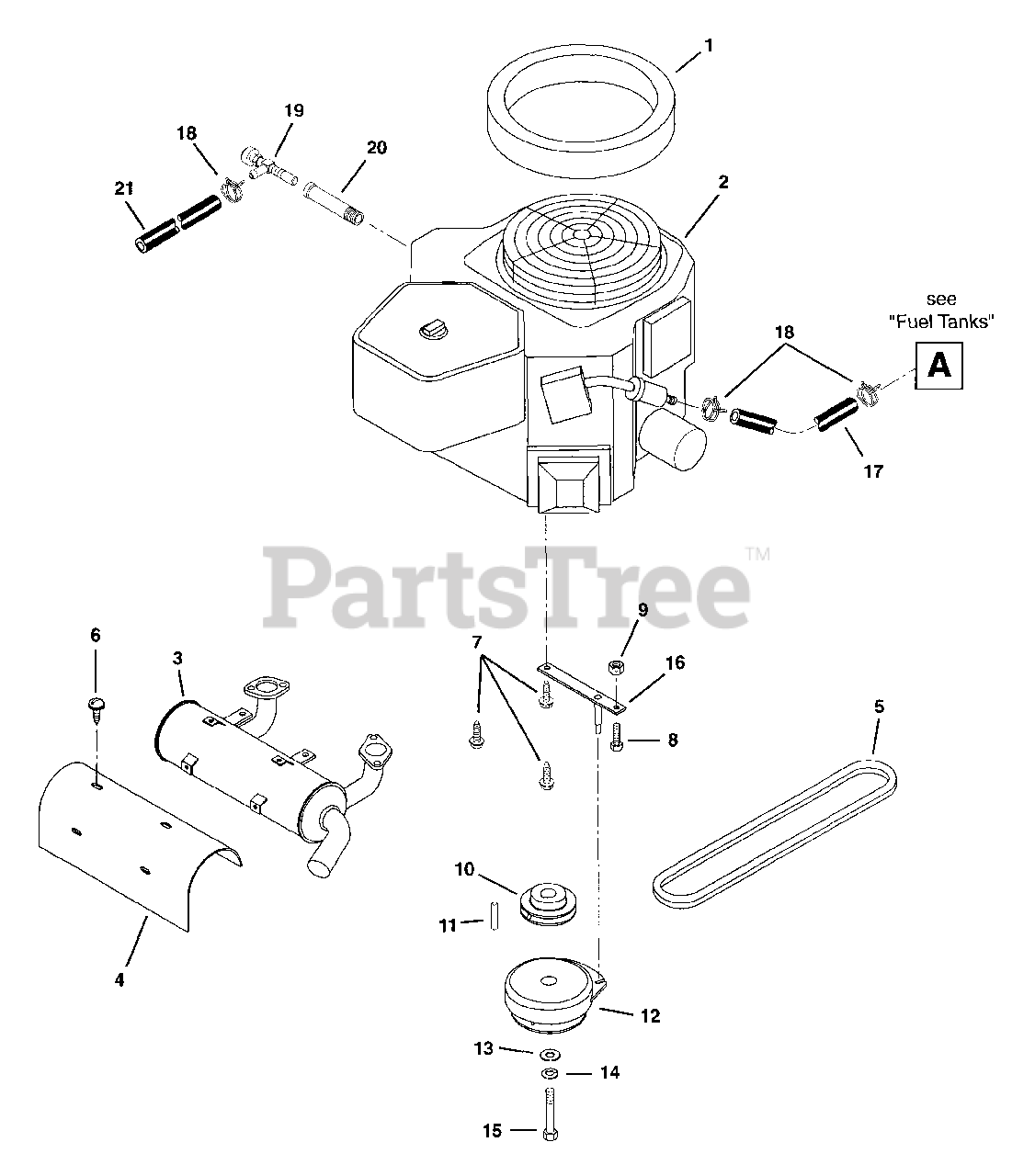

ENGINE AND CLUTCH Parts Diagram

  • Title

1

Gravely 09231400

SEAL-FOAM KOHLER TO ADAPTER

$

$

Not available

2

Gravely 08254400

25HP KOHLER COMMAND VERT

$

$

Not available

3

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

$342.99

$

Usually ships in 4-12 days

0

4

Gravely 08898000

HEAT SHIELD, CV18-25

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 07235500

V-BELT, HA-RAW EDGE

$45.99

$

In Stock, Qty 5

0

6

Gravely 07413200

SCR-TAP W/ WASHER (BULK)

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07325300

PLY- 4.50X1.12

$84.99

$

In Stock, only 2 left!

0

11

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

12

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

In Stock, only 1 left!

0

13

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

14

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

16

Gravely 09232900

ANCHOR - CLUTCH
(Superseded to 04907200)

$75.99

$

In Stock, only 3 left!

0

17

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

19

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

20

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0
