992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) SEAT AND HOOD FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

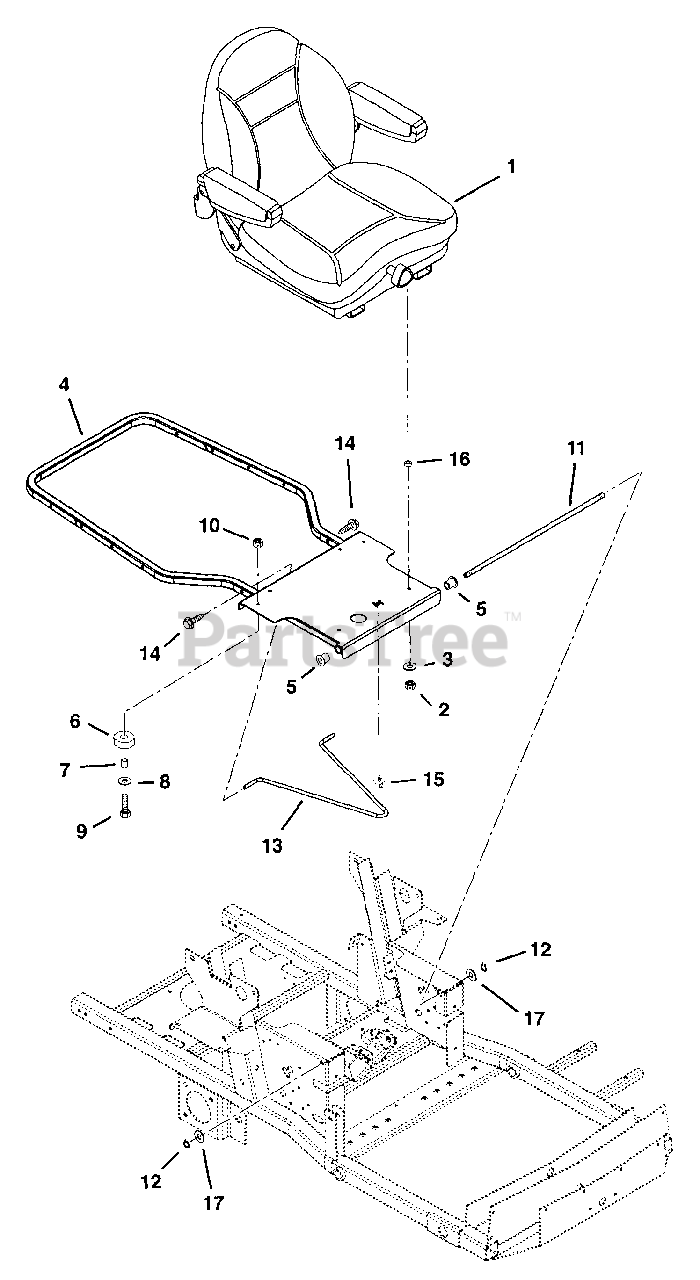

SEAT AND HOOD FRAME Parts Diagram

  • Title

1

Gravely 09230000

SEAT, MILSCO SUSPENSION
(Superseded to 79207100)

$

$

Not available

2

Gravely 06538500

NUT-LK-CTR M8-1.25 YWZC
(Superseded to 06541700)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09235000

WMT, HOOD FRAME
(Superseded to 59202400)

$

$

Not available

5

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 024357

BMPR,SEAT
(Superseded to 07521800)

$

$

Not available

7

Gravely 034723

BSHG-SLV .265X.375X.250 ST
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09245400

ROD - SEAT FRAME PIVOT

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 09236300

ROD - PROP

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530100

CLIP
(Superseded to 07534100)

$10.99

$

In Stock, only 2 left!

0

16

Gravely 039145

BSHG-SLV .377X.624X.235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

17

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0
