992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) SEAT AND HOOD FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

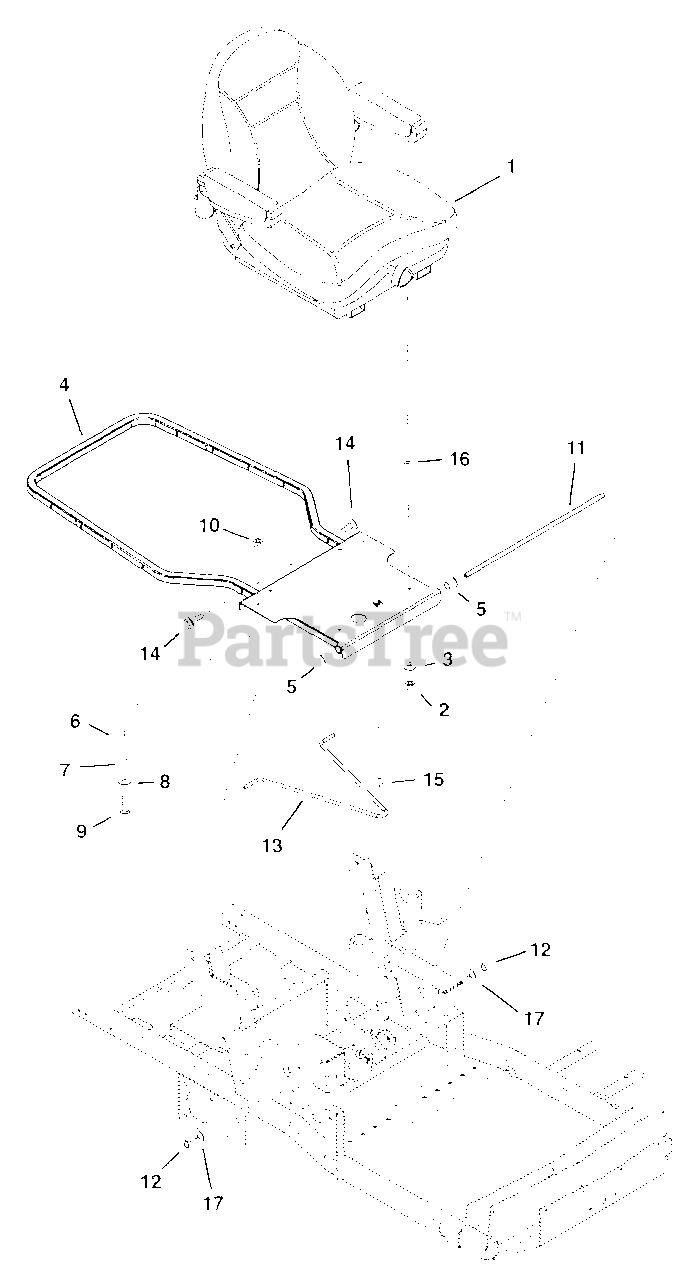

SEAT AND HOOD FRAME Parts Diagram

  • Title

1

Gravely 09230000

Seat, Suspension
(Superseded to 79207100)

$

$

Not available

2

Gravely 06538500

Nut-Locking-Center M8-1.25
(Superseded to 06541700)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09235000

Weldment- Hood Frame
(Superseded to 59202400)

$

$

Not available

5

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, only 3 left!

0

6

Gravely 024357

Bumper-Seat
(Superseded to 07521800)

$

$

Not available

7

Gravely 034723

Bushing-Sleeve .265 x .375 x .250
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 7

0

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09245400

Rod-Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.99

$

In Stock, only 2 left!

0

13

Gravely 09236300

Rod-Prop

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530100

Clip
(Superseded to 07534100)

$10.99

$

In Stock, only 1 left!

0

16

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

17

Gravely 06439200

Washer-Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+
