992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 010000 - 011999) Motors And Wheels Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

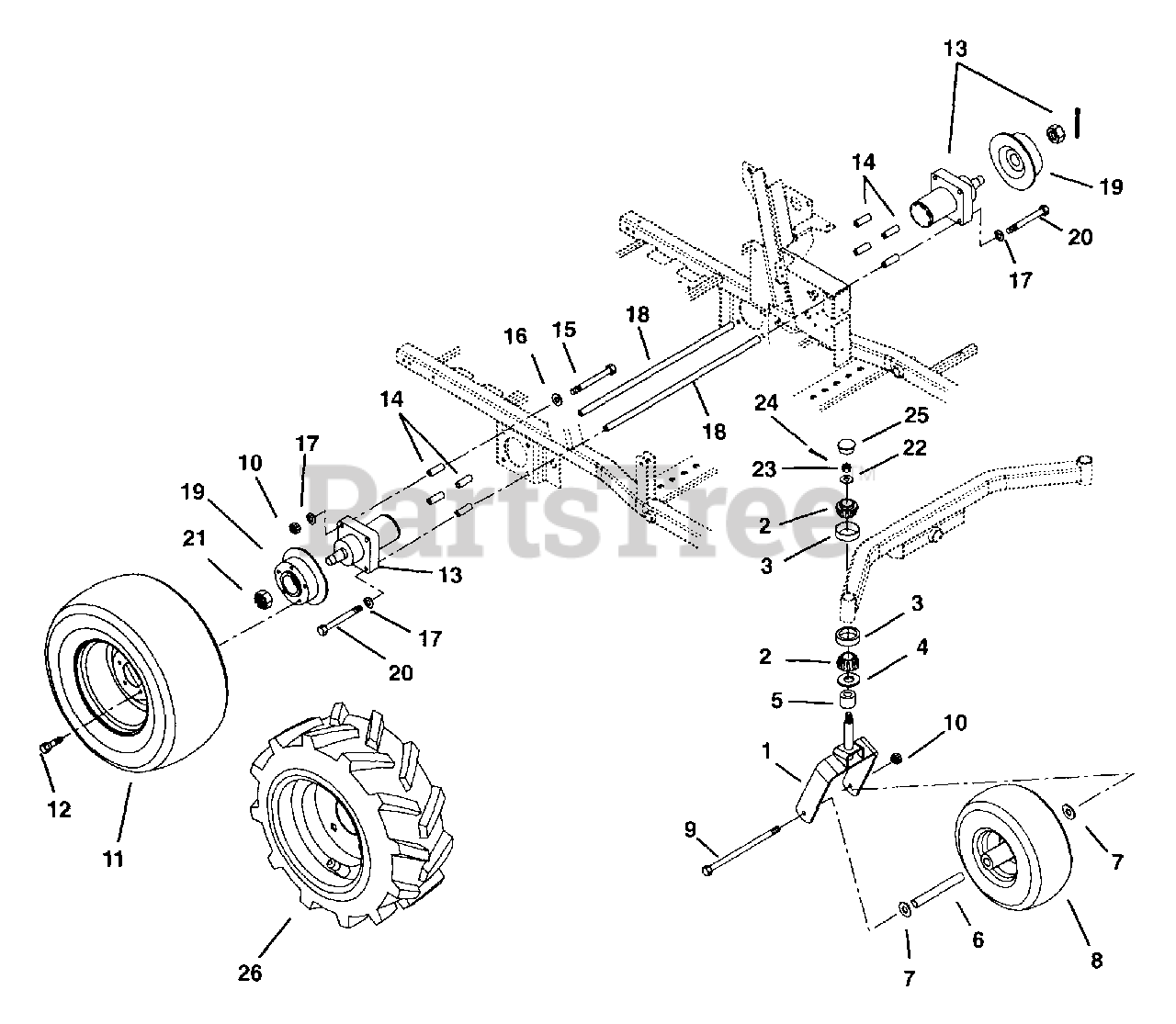

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09247453

FORK - FRONT (RED)

$145.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 13

0

6

Gravely 09231800

SPACER - WHEEL

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

8

Gravely 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$197.99

$

In Stock, only 4 left!

0

Gravely 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$76.99

$

In Stock, only 2 left!

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 07148900

WHL/TIRE 23X10.50-12 MULTITRAC
(Superseded to 07101116)

Note: (Models 018, 020, 021, 022, 024, 305)

$319.99

$

Usually ships in 4-12 days

0

Gravely 07149000

TIRE 23X10.50-12 MULTITRAC C/S

Note: (Models 018, 020, 021, 022, 024, 305)

$

$

Not available

Gravely 07152300

TIRE/WHEEL ASSY, 23X10.50-12
(Superseded to 59101000)

Note: (Models 027)

$298.99

$

Usually ships in 4-12 days

0

Gravely 07150700

WHL/TIRE 23X8.50-12 MULTITRAC

Note: (Model 023)

$

$

Not available

Gravely 07150000

ASSY, TIRE & WHEEL, 16X7.5-8
(Superseded to 07150700)

Note: (Model 023)

$

$

Not available

12

Gravely 07014600

BLT-LUG .50-20X.75X1.62 PL
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 09232300

HYDRAULIC WHEEL MOTOR

Note: (Includes 21)

$963.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

16

Gravely 00211100

BSHG, SPCR.500X.750X.321 PM

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09236200

ROD-MOTOR CONNECTING

$96.99

$

Usually ships in 4-12 days

0

19

Gravely 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$303.99

$

Usually ships in 4-12 days

0

20

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

21

Gravely 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$33.99

$

Usually ships in 4-12 days

0

22

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 00595500

NUT, SLOTTED .75-16

$3.99

$

In Stock, Qty 6

0

24

Gravely 06712300

PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 12

0

25

Gravely 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

26

Gravely 79200700

KIT, L&R TRUPOWER WHL/TIRE

Note: (Optional); (Includes 1 L.H. & 1 R.H.)

$

$

Not available

Gravely 07149100

LH WHL/TIRE 23X10.5-12TRUPOWER

Note: (Optional)

$

$

Not available

Gravely 07149200

RH WHL/TIRE 23X10.5-12TRUPOWER

Note: (Optional)

$

$

Not available

Gravely 07149300

TIRE 23X10.50-12 TRU POWER

$

$

Not available
