992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) 50" & 60" Deck And Spindles Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

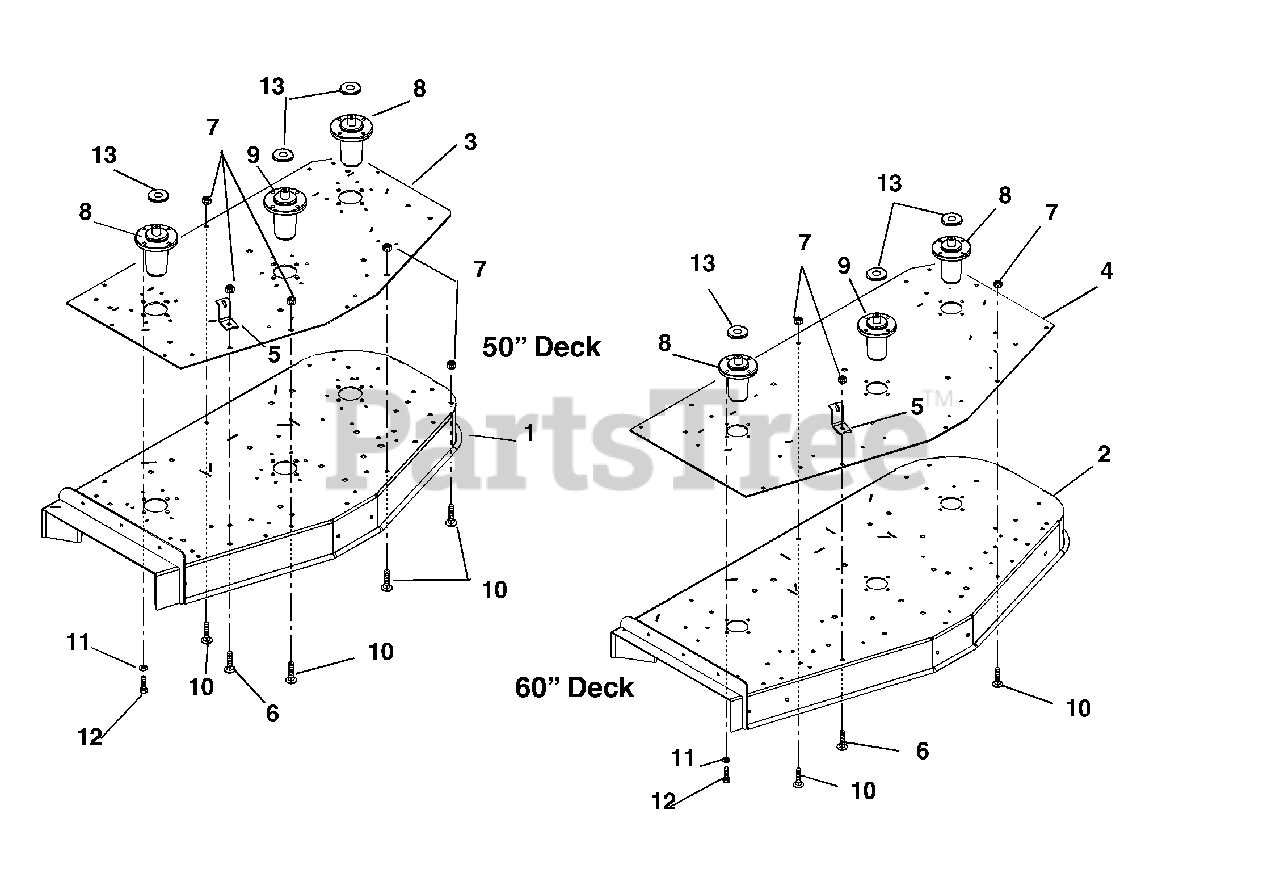

50" & 60" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09242153

Weldment, 50"Deck (Side Discharge)

Note: (Side Discharge)

$

$

Not available

2

Gravely 09237653

Weldment, 60" Deck (Side Discharge)

Note: (Side Discharge)

$

$

Not available

3

Gravely 09243053

Plate, 50" Reinforcement

$435.99

$

Usually ships in 4-12 days

0

4

Gravely 09239753

Plate, 60" Reinforcing

$

$

Not available

5

Gravely 09245353

Anchor, Spring

Note: (50" Deck)

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 09075853

Anchor, Spring
(Superseded to 09245353)

Note: (60" Deck)

$42.99

$

Usually ships in 4-12 days

0

6

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

Note: (50" Deck)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

Note: (60" Deck)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 13)

$273.99

$

In Stock, Qty 14

0

9

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Contains Item 13)

$361.99

$

In Stock, Qty 20+

0

10

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06200313)

Note: (50" Deck)

$2.99

$

In Stock, only 3 left!

0

10

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06200313)

Note: (60" Deck)

$2.99

$

In Stock, only 3 left!

0

11

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

12

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 2 left!

0
