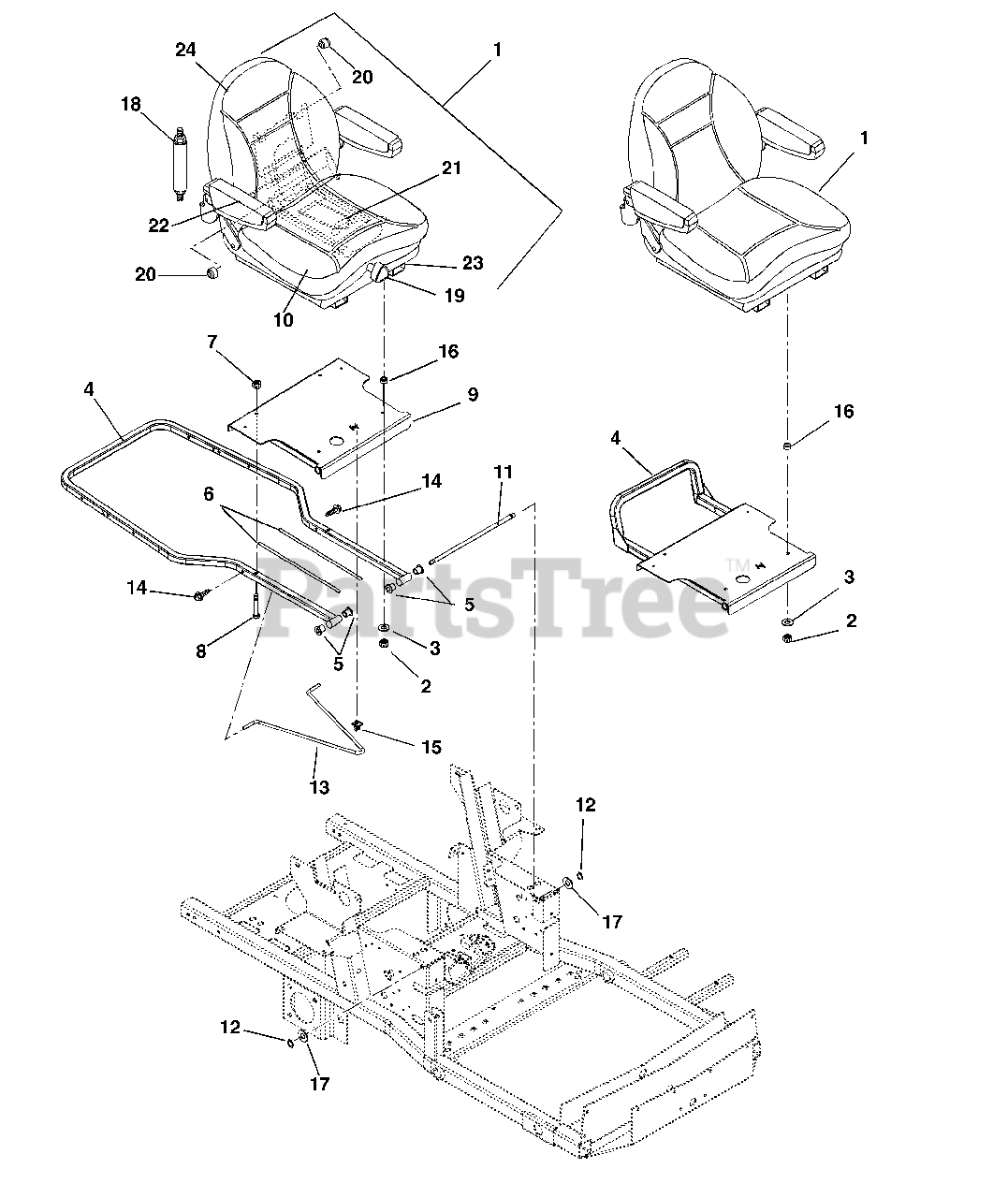

992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09230000

Seat-Suspension
(Superseded to 79207100)

Note: (Models 020, 027, 305)

$905.99

$

Usually ships in 4-12 days

0

1

Gravely 09210500

Seat- Suspension
(Superseded to 03829400)

Note: (Model 023)

$439.99

$

In Stock, only 4 left!

0

2

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

Note: (Models 020, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

2

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

Note: (Model 023)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

4

Gravely 09249053

Weldment- Hood Frame

Note: (Models 020, 027, 305)

$

$

Not available

4

Gravely 09210400

Weldment - Seat Frame

Note: (Model 023)

$

$

Not available

5

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

6

Gravely 00932300

Tape -VHB 4941F

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07056300

Bolt-Rib Neck .38-16 x 1.50

$

$

Not available

9

Gravely 09249353

Weldment-Seat Pivot Plate
(Superseded to 03259951)

$

$

Not available

10

Gravely 59202100

Kit-Cushion (1 per carton)
(Superseded to 59203200)

Note: (1 per carton)

$502.99

$

Usually ships in 4-12 days

0

11

Gravely 09245400

Rod-Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 09236300

Rod-Prop

Note: (Models 020, 305)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

Note: (Models 020, 027, 305)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530100

Clip
(Superseded to 07534100)

Note: (Models 020, 027, 305)

$9.49

$

In Stock, only 1 left!

0

16

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

17

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 59201300

Kit-Damper w/Hardware

Note: (Models 020, 027, 305)

$199.99

$

Usually ships in 4-12 days

0

19

Gravely 59201600

Kit-Knob (1 per bag)

Note: (1 per bag)

$

$

Not available

20

Gravely 59201700

Kit-Roller (4 per bag)

Note: (4 per bag)

$

$

Not available

21

Gravely 59201800

Kit-Spring Cable (1 per bag)

Note: (1 per bag)

$

$

Not available

22

Gravely 59201900

Kit-Arm Pad (1 per bag)

Note: (1 per bag)

$166.99

$

Usually ships in 4-12 days

0

23

Gravely 59202000

Kit-Adjuster (1 per carton)

Note: (1 per carton)

$243.99

$

Usually ships in 4-12 days

0

24

Gravely 59203200

Kit-Seatback

Note: (Models 018, 020, 027, 029, 030, 305)

$502.99

$

Usually ships in 4-12 days

0
