992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) 60" DISCHARGE CHUTE AND BAFFLES Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

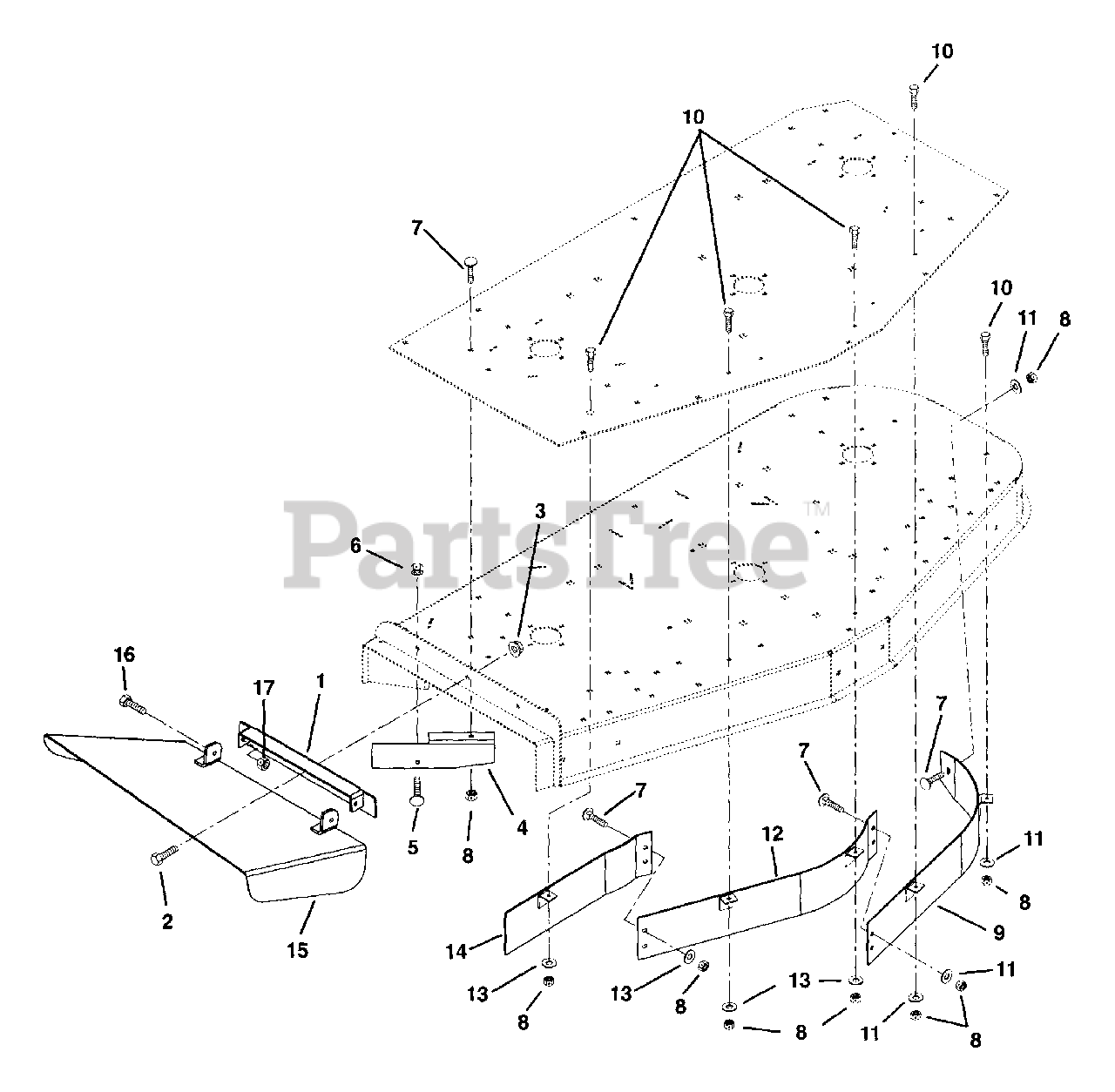

60" DISCHARGE CHUTE AND BAFFLES Parts Diagram

  • Title

1

Gravely 09238300

Weldment, Discharge Chute Bracket
(Superseded to 00253253)

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 06534800

Nut-Locking-Flange .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09238400

Deflector, 60"
(Superseded to 09238451)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

8

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 09241600

Weldment, 60" Left Hand Baffle-Upper
(Superseded to 09241651)

$110.99

$

In Stock, only 1 left!

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

12

Gravely 09241700

Weldment, 60" Center Baffle-Up
(Superseded to 09241751)

$100.99

$

In Stock, only 2 left!

0

13

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

14

Gravely 09241800

Weldment, 60" Right Hand Baffle-Upper
(Superseded to 09241851)

$56.99

$

In Stock, only 1 left!

0

15

Gravely 09239000

Weldment, Discharge Chute 60"
(Superseded to 00198253)

$228.99

$

In Stock, only 1 left!

0

16

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
