992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Brakes Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

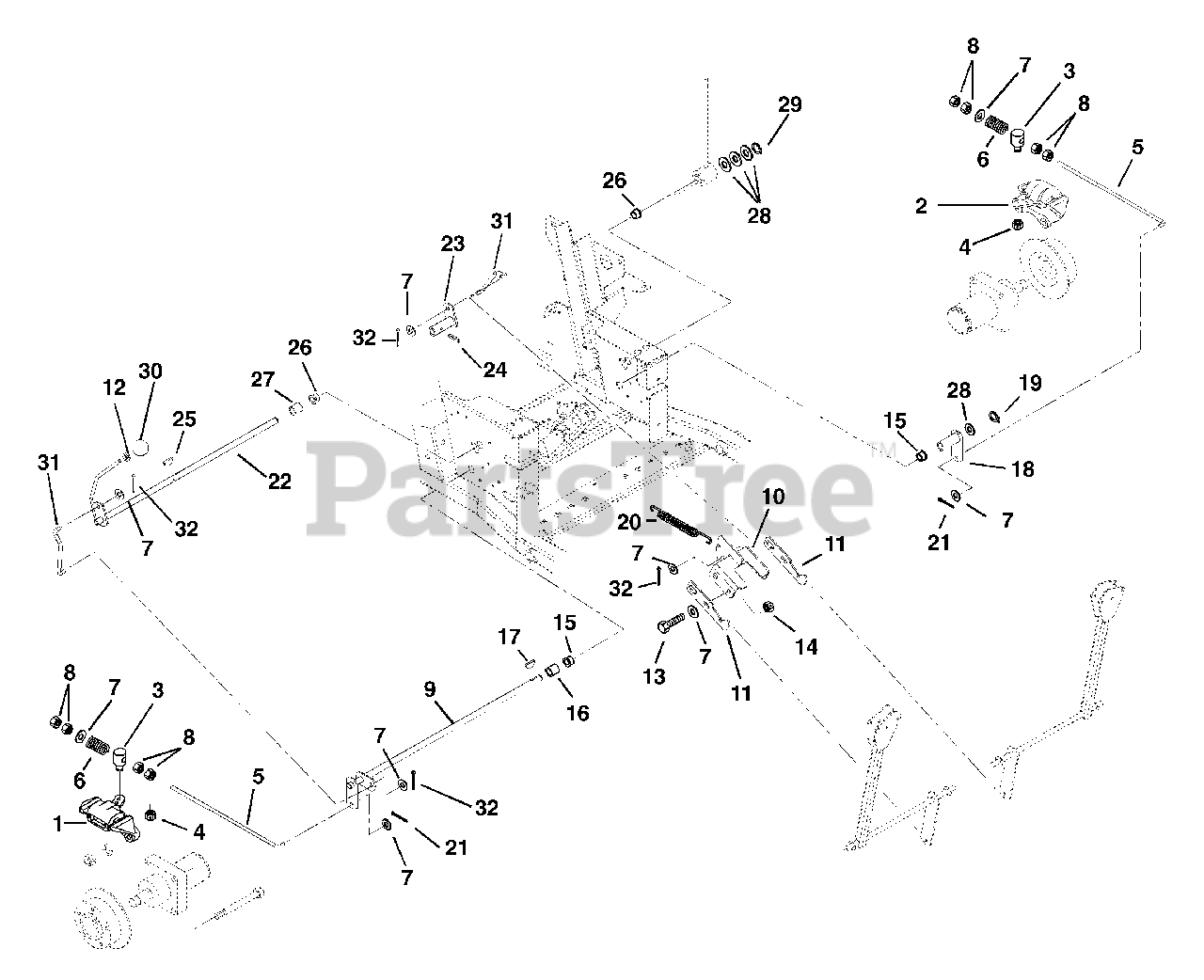

Brakes Parts Diagram

  • Title

1

Gravely 09243600

CALIPER PARK BRAKE (CW) RH 2"

Note: (CW) Right Hand

$197.99

$

Usually ships in 4-12 days

0

2

Gravely 09243500

CALIPER,PARK BRAKE (CCW) LH 2"

Note: (CCW) Left Hand

$197.99

$

Usually ships in 4-12 days

0

3

Gravely 09209100

PIVOT, BRAKE ROD
(Superseded to 09267300)

$7.49

$

In Stock, only 2 left!

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09248000

ROD - BRAKE 12 INCH

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09235200

SHAFT - BRAKE CROSS

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 09236900

INTERLOCK - FIXED

$

$

Not available

11

Gravely 09237400

INTERLOCK - ADJUSTABLE

$

$

Not available

12

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

16

Gravely 09304700

SPACER .630X.878X1.000

$

$

Not available

17

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09235300

ARM - BRAKE LH

$

$

Not available

19

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 08333200

SG-TENS .105X.85X5.00 WLD 40

$15.99

$

In Stock, Qty 6

0

21

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

22

Gravely 09237200

SHAFT - BRAKE ACTUATING

$

$

Not available

23

Gravely 09237000

ACTUATOR

$

$

Not available

24

Gravely 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

25

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

27

Gravely 09304700

SPACER .630X.878X1.000

$

$

Not available

28

Gravely 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

29

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$22.99

$

In Stock, only 3 left!

0

31

Gravely 09237100

ROD - BRAKE ACTUATING

$

$

Not available

32

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

Gravely 09200600

PAD SET, DISK BRAKE

Note: Not Shown

$60.99

$

In Stock, only 4 left!

0
