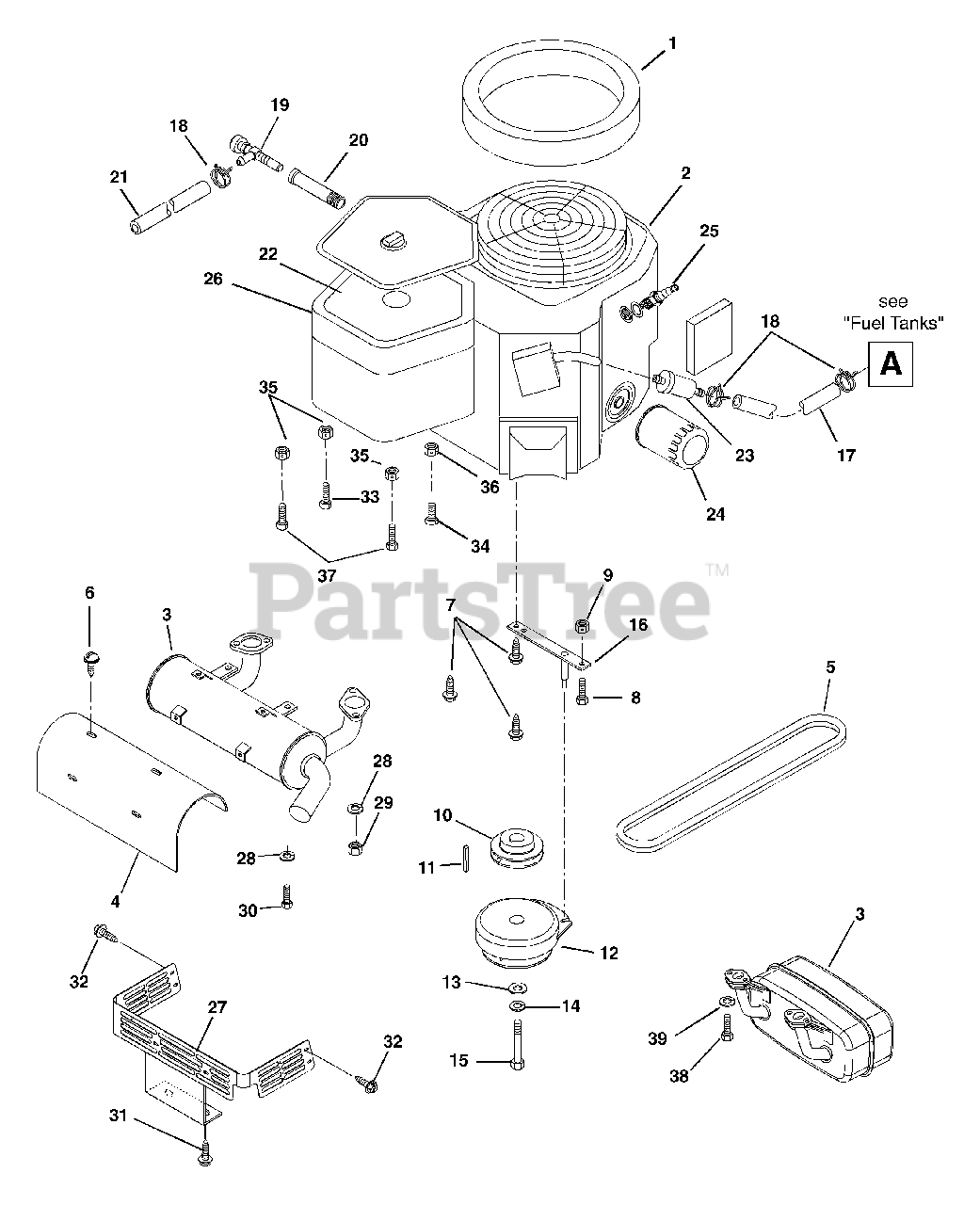

992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09231400

SEAL-FOAM KOHLER TO ADAPTER

Note: (Model 020, 022)

$

$

Not available

Gravely 09251500

SEAL-FOAM ROBIN TO PLENUM

Note: (Model 021, 024, 305)

$

$

Not available

2

Gravely 08254400

25HP KOHLER COMMAND VERT

Note: (Model 020, 022)

$

$

Not available

Gravely 08256700

ENGINE, ROBIN EH65V

Note: (Model 021, 305)

$

$

Not available

Gravely 08259400

ENGINE, B&S VANGUARD 20HP

Note: (Model 023)

$

$

Not available

3

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

Note: (Model 020, 022)

$342.99

$

Usually ships in 4-12 days

0

Gravely 09254100

MUFFLER, ROBIN

Note: (Model 021, 024, 305)

$

$

Not available

Gravely 01523600

MUFFLER ASSY.

Note: (Model 023)

$460.99

$

In Stock, only 1 left!

0

4

Gravely 08898000

HEAT SHIELD, CV18-25

Note: (Model 020, 021, 022, 024)

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 07235500

V-BELT, HA-RAW EDGE

$45.99

$

In Stock, Qty 6

0

6

Gravely 07413200

SCR-TAP W/ WASHER (BULK)

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07325300

PLY- 4.50X1.12

$84.99

$

In Stock, only 2 left!

0

11

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

12

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

13

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

14

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

16

Gravely 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 3 left!

0

17

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

19

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

20

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 21416800

ELEMENT,AIR CLEANER -KOH CV20
(Superseded to 08563700)

Note: (Model 020, 022)

$29.99

$

In Stock, Qty 18

0

Gravely 21527200

ASSY, AIR CLEANER

Note: (Model 021, 024, 305)

$

$

Not available

Gravely 21530000

FILTER, AIR 20HP B&S VANGUARD

Note: (Model 023)

$24.99

$

Usually ships in 4-12 days

0

23

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (Model 020, 022)

$13.99

$

In Stock, Qty 20+

0

Gravely 08811700

FILTER,FUEL

Note: (Model 021, 024, 305)

$10.99

$

Usually ships in 4-12 days

0

Gravely 21530400

PLUG, SPARK - TEC. SNO-THRO

Note: (Model 023)

$

$

Not available

24

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (Model 020, 022)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21530700

FILTER, OIL 20HP B&S VANGUARD
(Superseded to 21556900)

Note: (Model 023)

$19.99

$

In Stock, Qty 20+

0

25

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (Model 020, 022)

$7.49

$

In Stock, Qty 20+

0

Gravely 21526900

SPARK PLUG NGKBP6ES

Note: (Model 021, 024, 305)

$

$

Not available

Gravely 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: (Model 023)

$6.49

$

In Stock, Qty 20+

0

26

Gravely 21416700

ELEMENT, PRECLEANER - KOH CV20
(Superseded to 08563900)

Note: (Model 020, 022)

$14.99

$

In Stock, only 1 left!

0

27

Gravely 09255300

SHIELD, CE HEAT
(Superseded to 09255351)

Note: (Model 305)

$

$

Not available

28

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Model 021, 024, 305)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Model 021, 024, 305)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 05943400

BLT-HEX M8 X 1.25X20 PL
(Superseded to 05901628)

Note: (Model 021, 024, 305)

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (Model 305)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (Model 305)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (Model 021, 024, 305)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (Model 021, 024, 305)

$3.49

$

In Stock, Qty 10

0

35

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (Model 021, 024, 305)

$3.49

$

In Stock, Qty 20+

0

36

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (Model 021, 024, 305)

$1.49

$

In Stock, Qty 5

0

37

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (Model 021, 024, 305)

$1.99

$

In Stock, Qty 17

0

38

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (Model 023)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Model 023)

$1.49

$

In Stock, Qty 20+

0
