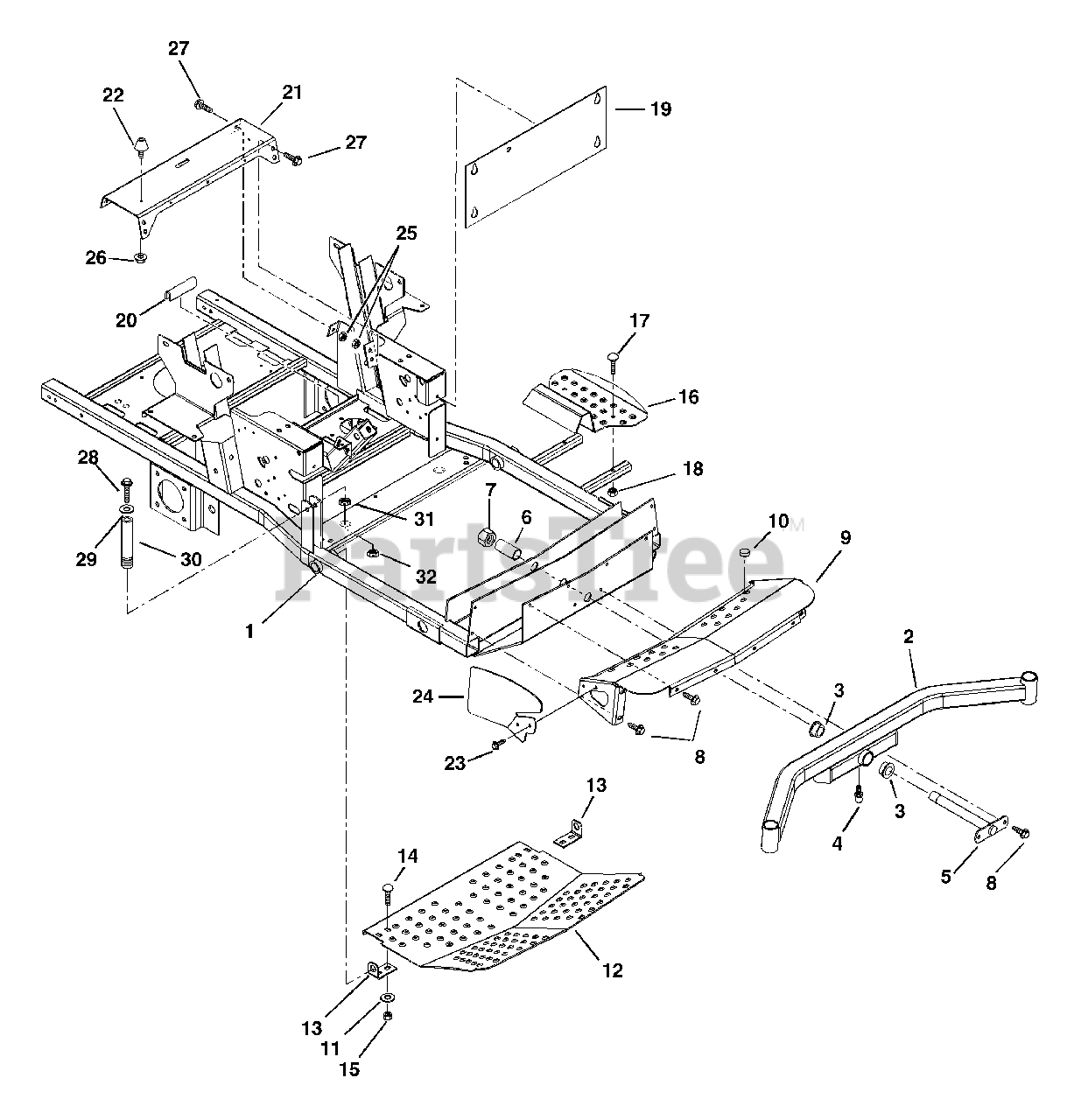

992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

Frame Parts Diagram

  • Title

1

Gravely 09233000

FRAME

Note: (Serial Numbers 000101 to 000499)

$

$

Not available

Gravely 09248253

FRAME, SHORT WHEELBASE (RED)

Note: (Serial Numbers 000500 and up)

$

$

Not available

2

Gravely 09247553

AXLE, FRONT (RED)
(Superseded to 09247551)

Note: (Model 020, 021, 022, 023, 024, 305)

$

$

Not available

Gravely 09252353

WLDMT, FRONT AXLE

Note: (Model 027)

$

$

Not available

3

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

4

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

5

Gravely 09232000

PIN - AXLE

$70.99

$

In Stock, only 2 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 2 left!

0

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 09233453

COVER - AXLE (RED)
(Superseded to 09278053)

$

$

Not available

10

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09233353

PANEL - INSPECTION (RED)

$115.99

$

Usually ships in 4-12 days

0

13

Gravely 09231051

MOUNT, INSPECTION PANEL(BLACK)
(Superseded to 09231000)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09231253

STEP, INGRESS (RED)
(Superseded to 09231251)

$

$

Not available

17

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09234053

PLATE - KICK (RED)
(Superseded to 00483153)

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09246453

CHANNEL - CROSS (RED)

$

$

Not available

22

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

In Stock, only 2 left!

0

23

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 09255851

GUARD, FOOT

$

$

Not available

25

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

26

Gravely 06534600

NUT-SPNLK-FLG .312-24 YWZC

$

$

Not available

27

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 09255700

POST
(Superseded to 09260800)

$

$

Not available

31

Gravely 06539900

NUT-JAM .75-16 YWZC

$3.99

$

In Stock, only 2 left!

0

32

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 11

0
