992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Fuel Tanks Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

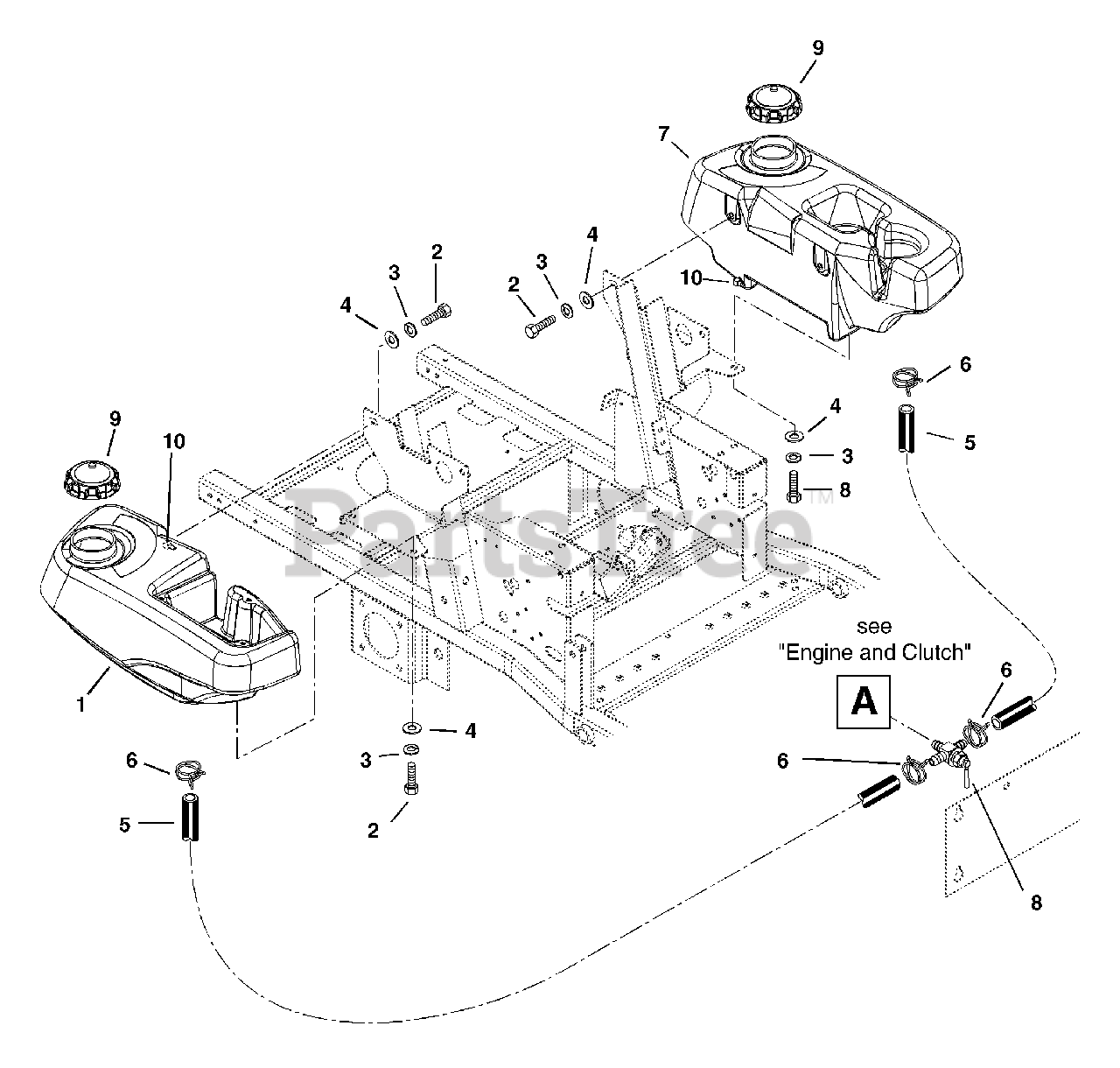

Fuel Tanks Parts Diagram

  • Title

1

Gravely 09230100

FUEL TANK RH

$

$

Not available

1

Gravely 07064500

FITTING, TANK

$13.99

$

In Stock, Qty 10

0

1

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

7

Gravely 09230200

FUEL TANK LH

$

$

Not available

7

Gravely 07064500

FITTING, TANK

$13.99

$

In Stock, Qty 10

0

7

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

8

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

$46.99

$

In Stock, only 3 left!

0

9

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

10

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0
