992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Hood Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

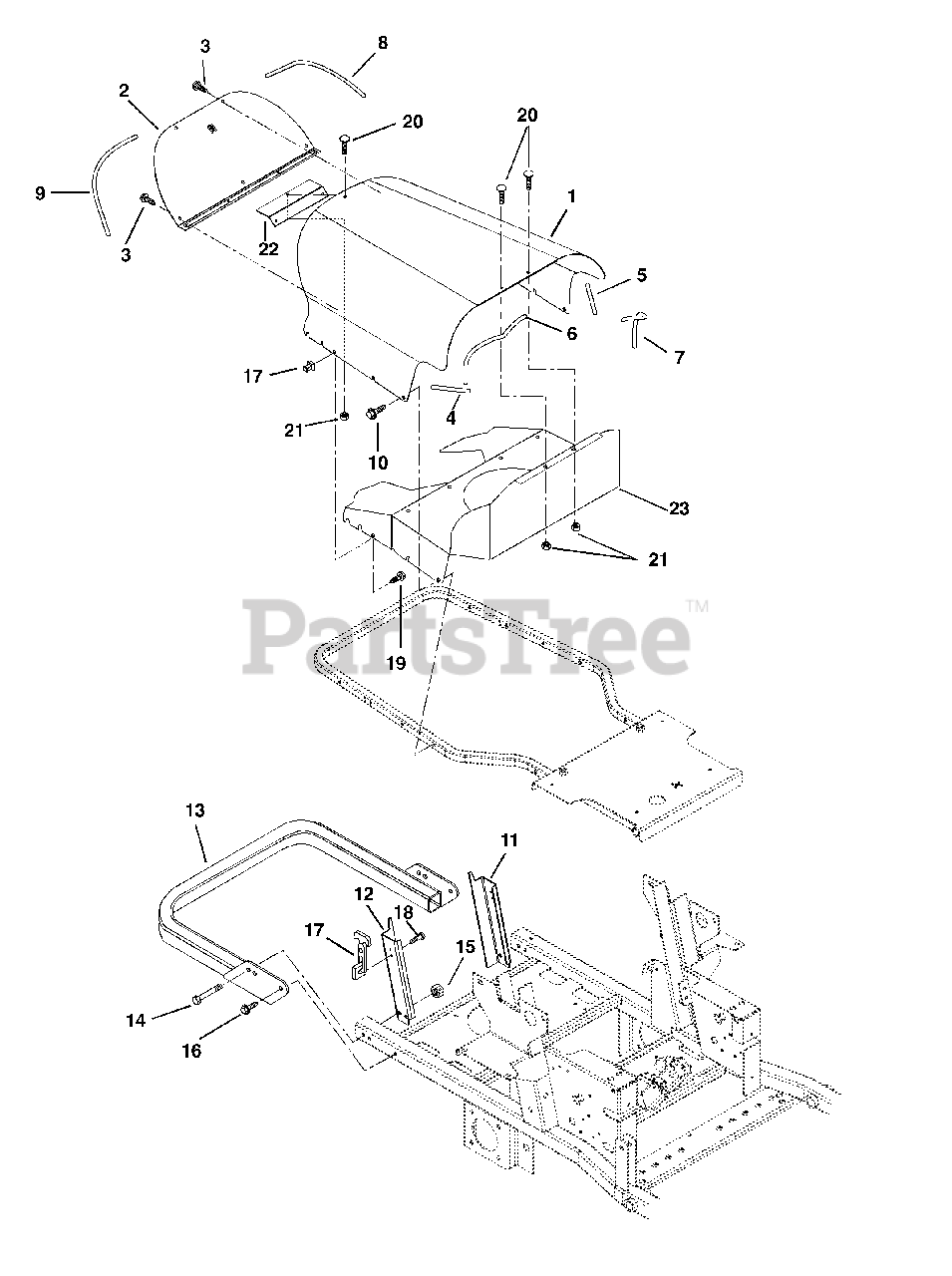

Hood Parts Diagram

  • Title

1

Gravely 09252753

HOOD

Note: (Model 020, 021, 022, 024, 027, 305)

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 09252951

WLDMT, SCREEN

Note: (Model 020, 021, 022, 024, 027, 305)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (Model 020, 021, 022, 024, 027, 305)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (Model 020, 021, 022, 024, 027, 305)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09234553

HOOD SUPPORT LH (RED)
(Superseded to 09253953)

Note: (Model 020, 021, 022, 024, 027, 305)

$51.99

$

Usually ships in 4-12 days

0

12

Gravely 09234653

HOOD SUPPORT RH (RED)
(Superseded to 09254253)

Note: (Model 020, 021, 022, 024, 027, 305)

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 09249953

BUMPER, REAR - RED

$

$

Not available

14

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: (Model 020, 021, 022, 024, 027, 305)

$2.99

$

In Stock, Qty 13

0

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

Note: (Model 023)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09079500

LATCH, RUBBER

Note: (Model 020, 021, 022, 024, 027, 305)

$35.99

$

In Stock, Qty 14

0

18

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (Model 020, 021, 022, 024, 027, 305)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

Note: (Model 020, 021, 022, 024, 027, 305)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (Model 020, 021, 022, 024, 027, 305)

$1.49

$

In Stock, Qty 11

0

21

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (Model 020, 021, 022, 024, 027, 305)

$5.49

$

In Stock, Qty 12

0

22

Gravely 09244700

BRACKET - SCREEN SUPPORT

Note: (Model 020, 021, 022, 024, 027, 305)

$

$

Not available

23

Gravely 09252851

PLENUM, HOOD

Note: (Model 020, 021, 022, 024, 027, 305)

$

$

Not available
