992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Rollers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

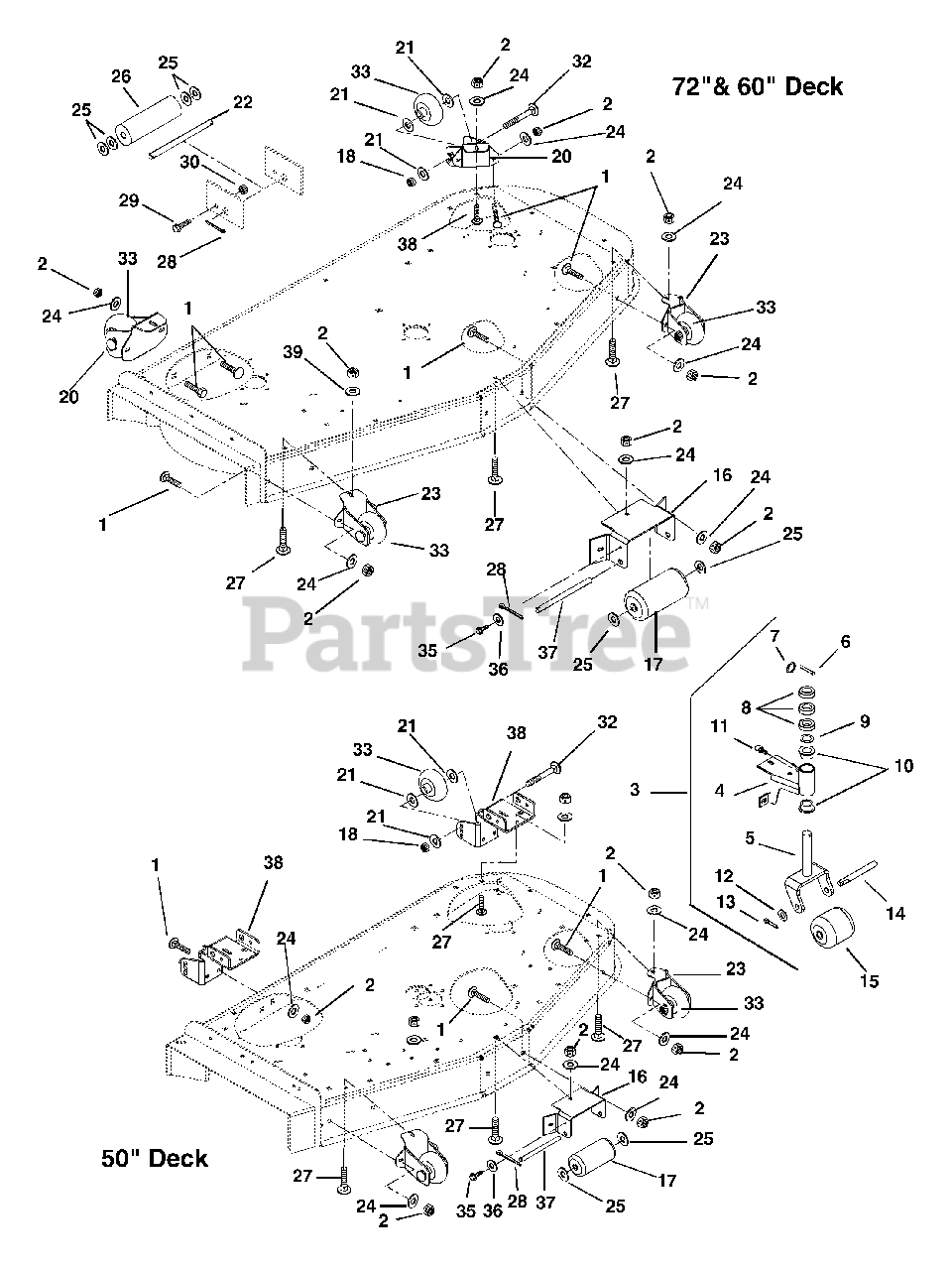

Rollers Parts Diagram

  • Title

1

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (72" & 60" Deck)

$2.99

$

In Stock, Qty 20+

0

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (50" Deck)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (72" & 60" Deck)

$3.49

$

In Stock, Qty 20+

0

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (50" Deck)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09241000

ASS'Y, ROLLER BRACKET
(Superseded to 09251000)

Note: (72" & 60" Deck)(Contains Items 4-15)(Optional)

$435.99

$

Usually ships in 4-12 days

0

Gravely 09241200

ASS'Y, ROLLER BRACKET(LFT FRT)
(Superseded to 09251100)

Note: (72" & 60" Deck)(Contains Items 5-15,17)

$479.99

$

Usually ships in 4-12 days

0

4

Gravely 09241153

WLDMT. ROLLER BRACKET (RED)

Note: (Optional)

$171.99

$

Usually ships in 4-12 days

0

Gravely 09241353

WLDMT. ROLLER BRKT LEFT FRONT

Note: (72" & 60" Deck)

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 09249600

WELDMENT, ROLLER FORK
(Superseded to 69206700)

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 06815500

PIN-CLEV .19X2.00 YWZC

$5.49

$

In Stock, only 2 left!

0

7

Gravely 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 045138

BSHG-SLV 1.04X1.75X.500 ST
(Superseded to 05519553)

$17.99

$

In Stock, only 2 left!

0

9

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0

10

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

11

Gravely 07012800

FTG,LUBE 90 DEG .250-28 TAPER

$5.49

$

In Stock, Qty 5

0

12

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06713000

PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

14

Gravely 09240900

SHAFT, CASTOR

$37.99

$

In Stock, only 2 left!

0

15

Gravely 09240600

ROLLER

$38.99

$

In Stock, only 2 left!

0

16

Gravely 09094953

BRACKET, ANTI SCALP ROLLER

$103.99

$

In Stock, only 1 left!

0

17

Gravely 09078100

ROLLER

$48.99

$

In Stock, Qty 7

0

18

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

Note: (72" & 60" Deck)

$2.99

$

In Stock, Qty 20+

0

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

Note: (50" Deck)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (60" Deck)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 09253653

WLDMT, WHEEL SUPPORT, LH

Note: (72" & 60" Deck)

$

$

Not available

Gravely 09253553

WLDMT, WHEEL SUPPORT, RH

Note: (72" & 60" Deck)

$186.99

$

Usually ships in 4-12 days

0

21

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

Note: (72" & 60" Deck)

$1.49

$

In Stock, Qty 20+

0

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

Note: (50" Deck)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

Note: (60" Deck)

$61.99

$

Usually ships in 4-12 days

0

23

Gravely 09254553

WLDMT, LEFT FRONT ROLLER BRKT

Note: (72" & 60" Deck)

$

$

Not available

Gravely 09254653

WLDMT, RIGHT FRONT ROLLER BRKT

Note: (72" & 60" Deck)

$243.99

$

Usually ships in 4-12 days

0

Gravely 09255453

WLDMT, WHEEL SUPPORT, LH

Note: (50" Deck)

$

$

Not available

Gravely 09255553

WLDMT, WHEEL SUPPORT, RH

Note: (50" Deck)

$

$

Not available

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (72" & 60" Deck)

$1.49

$

In Stock, Qty 20+

0

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (50"Deck)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (72" & 60" Deck)

$2.99

$

In Stock, Qty 20+

0

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (50" Deck)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

Note: (60" Deck)

$38.99

$

In Stock, only 4 left!

0

27

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

Note: (72" & 60" Deck)

$2.99

$

In Stock, Qty 20+

0

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

Note: (50" Deck)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (72" & 60" Deck)

$4.99

$

In Stock, only 2 left!

0

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (50" Deck)

$4.99

$

In Stock, only 2 left!

0

29

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (72" & 60" Deck)

$1.49

$

In Stock, only 3 left!

0

30

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (72" & 60" Deck)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (60" Deck)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (72" & 60" Deck)

$

$

Not available

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (50" Deck)

$

$

Not available

33

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

35

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 09075300

PIN

$40.99

$

In Stock, only 2 left!

0

38

Gravely 09255653

BRKT, REAR MWR MTG/ANTI SCALP

Note: (50" Deck)

$

$

Not available

39

UNKNOWN

$

$

Not available
