992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 022476) Transmission Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

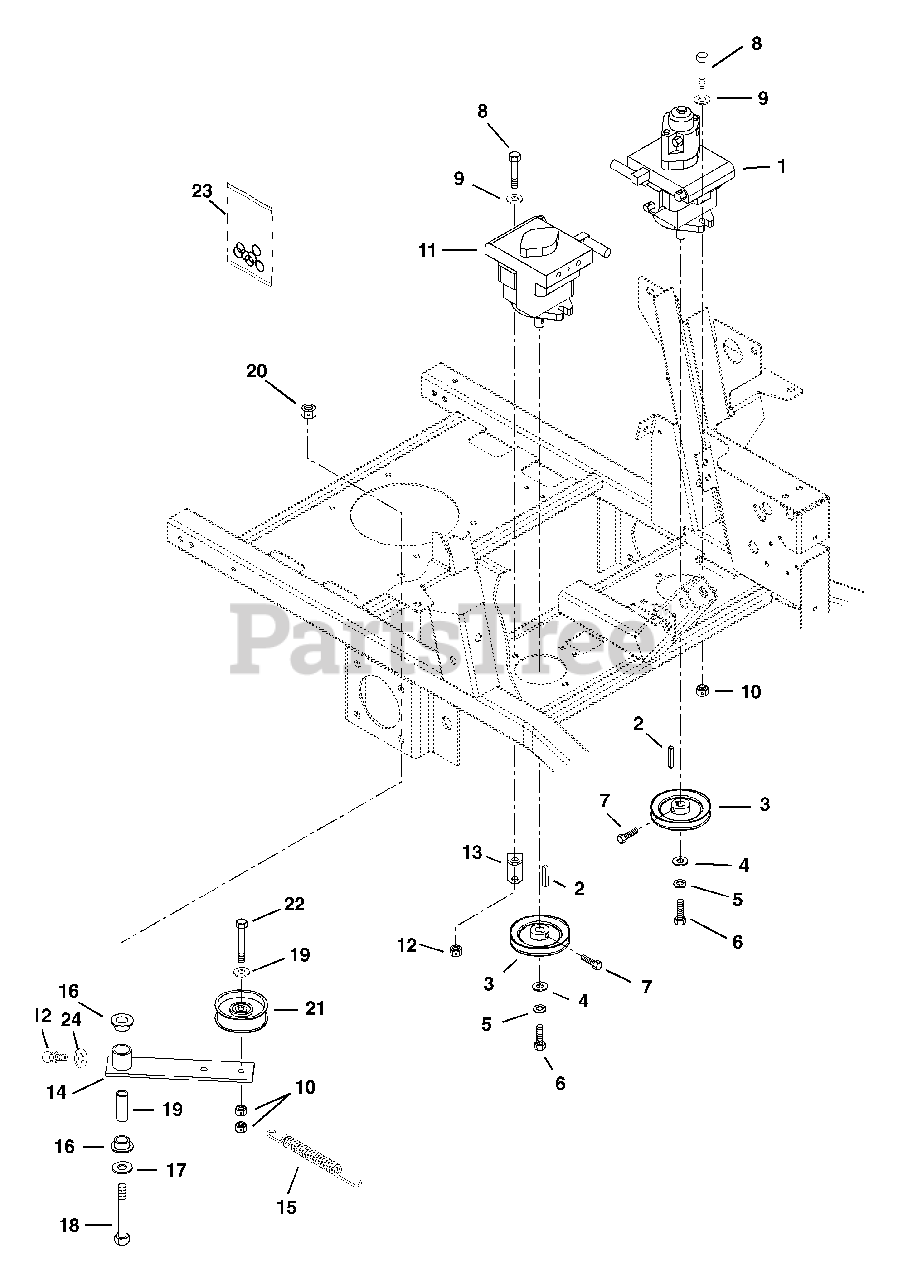

Transmission Parts Diagram

  • Title

1

Gravely 09235800

HYDROSTAT BDP-10L-901P W/AUX
(Superseded to 09279800)

$1978.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

3

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

$52.99

$

In Stock, Qty 10

0

4

Gravely 06442200

WSHR-FL-STL .281X1.0X.048 YWZC
(Superseded to 06426600)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

7

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

10

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 053330

PUMP, BDP-10L
(Superseded to 09279900)

$1263.99

$

Usually ships in 4-12 days

0

12

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

13

Gravely 09231151

ANCHOR, SPRING IDLER
(Superseded to 09231100)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 09249500

IDLER ARM - GROUND DRIVE
(Superseded to 09249551)

$67.99

$

Usually ships in 4-12 days

0

15

Gravely 08334100

SG-TENS .120 X .845 X 6.50
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

16

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

17

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

19

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

20

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

21

Gravely 053125

IDLER, FLAT .377X4.0X.96W POLY
(Superseded to 07320800)

$35.99

$

In Stock, Qty 19

0

22

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 58800300

KIT, PUMP SEAL (P/N 2513018)

Note: (One Kit Required for each Pump)

$46.99

$

Usually ships in 4-12 days

0

24

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0
