992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 035000 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

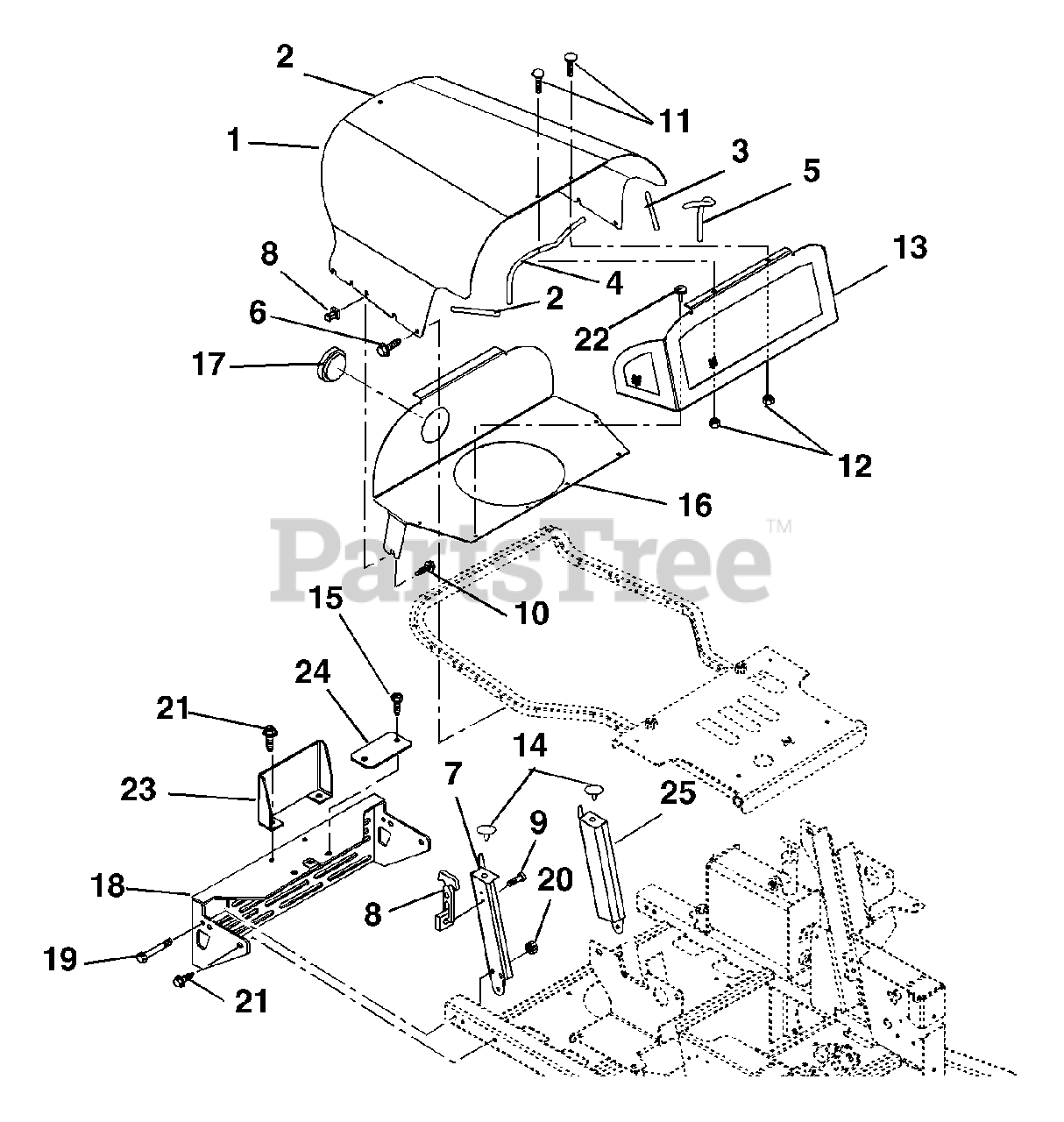

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

Hood

$

$

Not available

2

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 09227953

Hood Support Right-Hand

$102.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

Latch-Rubber

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06118200

Screw Machine 10-24 x .50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06220600

Bolt-Round Head Square Shank .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

12

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

13

Gravely 09257951

Weldment, Plenum

$

$

Not available

14

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

15

Gravely 07411600

Screw-Tapping .250-20 x .37 Hex Washer Head (020)
(Superseded to 07400125)

Note: (020)

$0.99

$

In Stock, Qty 6

0

16

Gravely 09259000

Back, Plenum

$

$

Not available

17

Gravely 07533700

Plug, Hole-3.38 (032, 033)

Note: (032, 033)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 09258151

Bumper-Rear
(Superseded to 09293451)

$262.99

$

Usually ships in 4-12 days

0

19

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head (020)
(Superseded to 07400129)

Note: (020)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head (029, 030, 032, 033, 034, 035)
(Superseded to 07400129)

Note: (029, 030, 032, 033, 034, 035)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06817000

Rivet-Pop .18 x .402

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 09229951

Guard, Muffler (029, 030, 032, 033, 034, 035)

Note: (029, 030, 032, 033, 034, 035)

$64.99

$

Usually ships in 4-12 days

0

24

Gravely 09259451

Plate, Bumper (020)

Note: (020)

$

$

Not available

25

Gravely 09275153

Weldment, Hood Support-Left Hand

$136.99

$

Usually ships in 4-12 days

0
