992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 009999) Hood Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

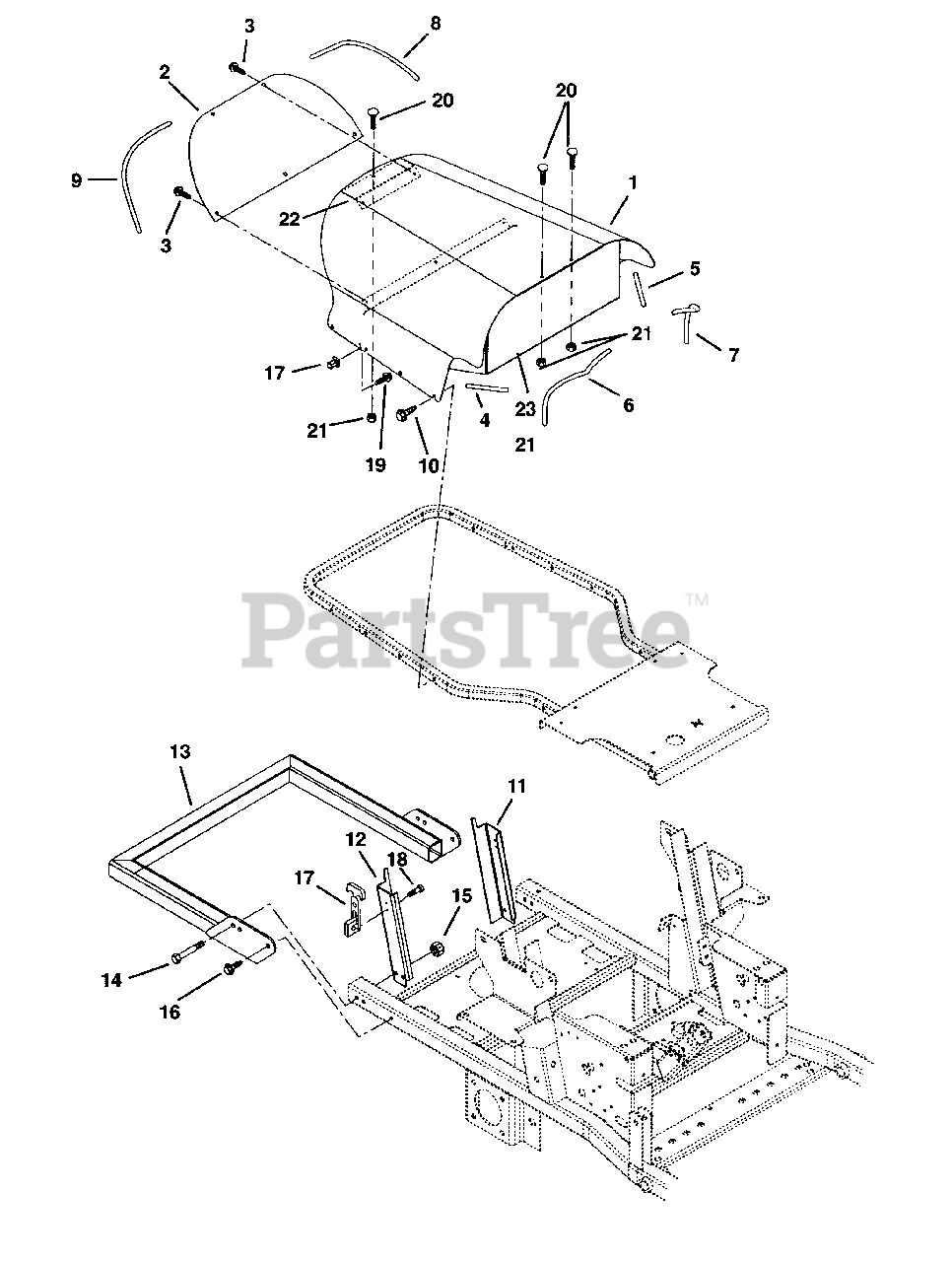

Hood Parts Diagram

  • Title

1

Gravely 09244600

Hood

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available

2

Gravely 09244900

Screen-Hood

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available

3

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

Note: Models (018, 020, 021, 022, 024, 305)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

Note: Models (018, 020, 021, 022, 024, 305)

$1.99

$

In Stock, Qty 15

0

11

Gravely 09234553

Hood Support Left-Hand
(Superseded to 09253953)

Note: Models (018, 020, 021, 022, 024, 305)

$51.99

$

Usually ships in 4-12 days

0

12

Gravely 09234653

Hood Support Right-Hand
(Superseded to 09254253)

Note: Models (018, 020, 025, 022, 024, 305)

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 09247200

Bumper-Rear
(Superseded to 09247253)

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available

13

Gravely 09249953

Bumper-Rear

Note: Model (023)

$

$

Not available

14

Gravely 05957800

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

Note: Models (018, 020, 021, 022, 024, 305)

$2.99

$

In Stock, Qty 19

0

14

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

Note: Model (023)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09079500

Latch-Rubber

Note: Models (018, 020, 021, 022, 024, 305)

$35.99

$

In Stock, Qty 10

0

18

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

Note: Models (018, 020, 021, 022, 024, 305)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06118200

Screw Machine 10-24 x .50 Hex Washer Head

Note: Models (018, 020, 021, 022, 024, 305)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06220600

Bolt-Round Head Square Shank .25-20 x .50 Grade 5
(Superseded to 06200306)

Note: Models (018, 020, 021, 022, 024, 305)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

Note: Models (018, 020, 021, 022, 024, 305)

$5.49

$

In Stock, only 2 left!

0

22

Gravely 09244700

Bracket-Screen Support

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available

23

Gravely 09244800

Weldment, Plenum

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available
