992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 009999) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

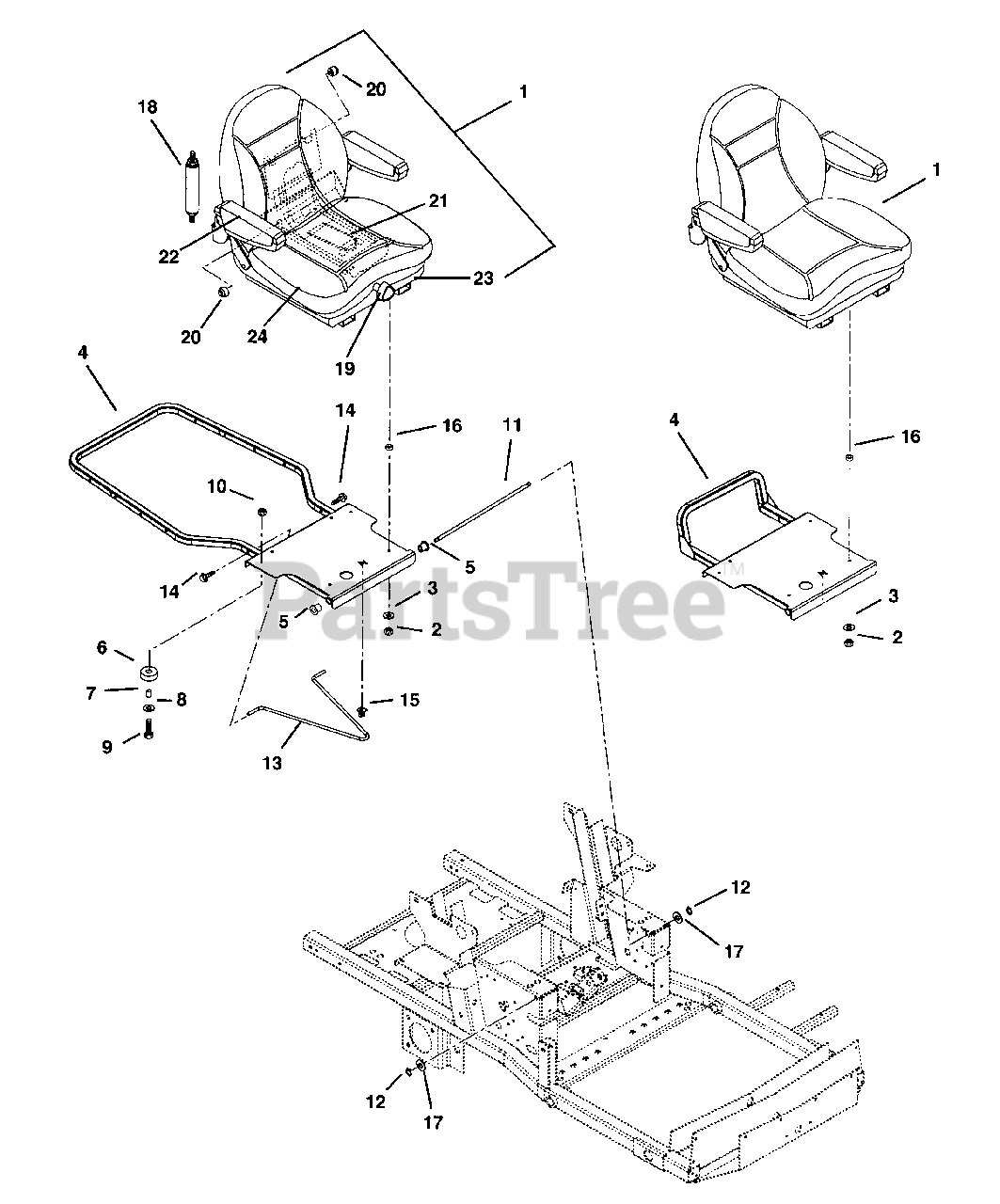

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09230000

Seat, Suspension
(Superseded to 79207100)

Note: Models (O18, 020, 021, 022, 024, 305)

$

$

Not available

1

Gravely 09210500

Seat, MILSCO Suspension
(Superseded to 03829400)

Note: Model (023)

$448.99

$

In Stock, only 1 left!

0

1

Gravely 06538500

Nut-Locking-Center M8-1.25
(Superseded to 06541700)

$1.99

$

Usually ships in 4-12 days

0

2

UNKNOWN

UNKNOWN

$

$

Not available

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09235000

Weldment- Hood Frame
(Superseded to 59202400)

Note: Models (018, 020, 021, 022, 024, 305)

$

$

Not available

4

Gravely 09210400

Weldment - Seat Frame

Note: Model (023)

$

$

Not available

5

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, Qty 18

0

6

Gravely 024357

Bumper-Seat
(Superseded to 07521800)

$

$

Not available

7

Gravely 034723

Bushing-Sleeve .265 x .375 x .250
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

10

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09245400

Rod-Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.99

$

In Stock, only 2 left!

0

13

Gravely 09236300

Rod-Prop

Note: Models (018, 020, 021, 022, 024, 305)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

Note: Models (018, 020, 021, 022, 024, 305)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530100

Clip
(Superseded to 07534100)

Note: Models (018, 020, 021, 022, 024, 305)

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

17

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 59201300

Kit-Damper w/Hardware

Note: Models (018, 020, 021, 022, 024, 305)

$212.99

$

Usually ships in 4-12 days

0

19

Gravely 59201600

Kit-Knob (1 per bag)

Note: (1 per bag)

$

$

Not available

20

Gravely 59201700

Kit-Roller (4 per bag)

Note: (4 per bag)

$

$

Not available

21

Gravely 59201800

Kit-Spring Cable (1 per bag)

Note: (1 per bag)

$

$

Not available

22

Gravely 59201900

Kit-Arm Pad (1 per bag)

Note: (1 per bag)

$182.99

$

Usually ships in 4-12 days

0

23

Gravely 59202000

Kit-Adjuster (1 per carton)

Note: (1 per carton)

$268.99

$

Usually ships in 4-12 days

0

24

Gravely 59202100

Kit-Cushion (1 per carton)
(Superseded to 59203200)

Note: (1 per carton)

$

$

Not available
