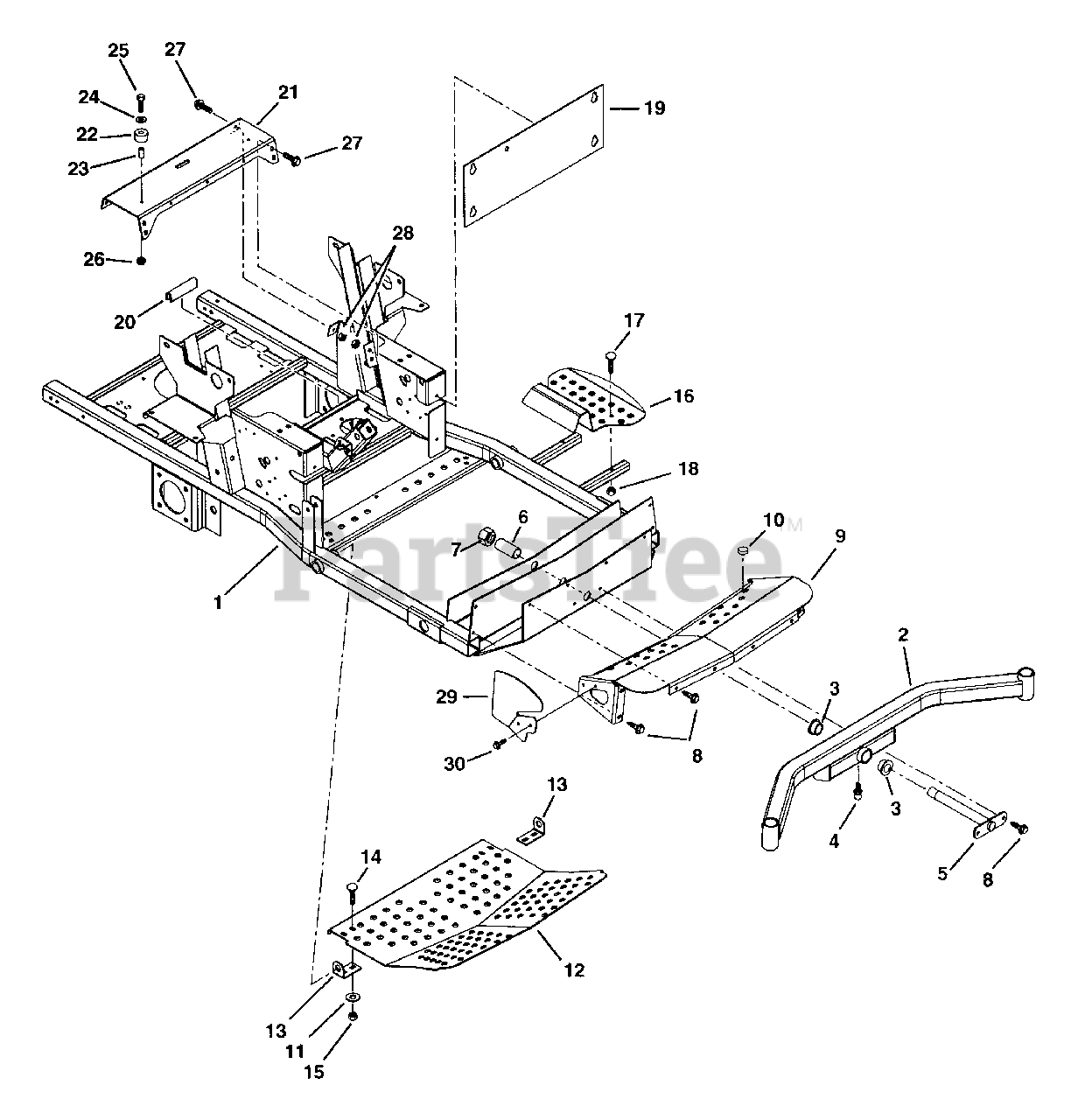

992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 010000 - 011999) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

Frame Parts Diagram

  • Title

1

Gravely 09233000

Frame

Note: (Serial Numbers 000101 to 000499)

$

$

Not available

1

Gravely 09248253

Frame

Note: (Serial Numbers 000500 and up)

$

$

Not available

2

Gravely 09247553

Axle-Front
(Superseded to 09247551)

Note: (Models 018, 020, 021, 022, 023, 024, 305)

$

$

Not available

2

Gravely 09252353

Axle-Front

Note: (Model 027)

$

$

Not available

3

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 20+

0

4

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

5

Gravely 09232000

Pin-Axle

$70.99

$

In Stock, Qty 5

0

6

Gravely 09231900

Spacer

$22.99

$

In Stock, only 2 left!

0

7

Gravely 06538400

Nut-Locking 1.0-14
(Superseded to 00181818)

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 07415400

Screw-Tapping .38-16 x .75
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 09233453

Cover-Axle
(Superseded to 09278053)

$

$

Not available

10

Gravely 07516000

Button Bumper

$1.49

$

In Stock, only 2 left!

0

11

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09233353

Panel-Inspection

$115.99

$

Usually ships in 4-12 days

0

13

Gravely 09231053

Mount-Inspection Panel
(Superseded to 09231000)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.99

$

In Stock, only 1 left!

0

15

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09231253

Step-Ingress
(Superseded to 09231251)

$

$

Not available

17

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

18

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09234053

Plate-Kick
(Superseded to 00483153)

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 049767

Strip-Cowl
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09246453

Channel-Cross

$

$

Not available

22

Gravely 024357

Bumper-Seat
(Superseded to 07521800)

$

$

Not available

23

Gravely 034723

Bushing-Sleeve Steel .265 x .375 x .250
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 06435800

Washer-Flat-Steel .312 x. 734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

26

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07049900

Bolt-Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 07053300

Nut-Retainer .375-16 x .37

$3.99

$

In Stock, only 3 left!

0

29

Gravely 09245053

Cover, Cylinder Rod End
(Superseded to 09255851)

$

$

Not available

30

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
