992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 010000 - 011999) Rollers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

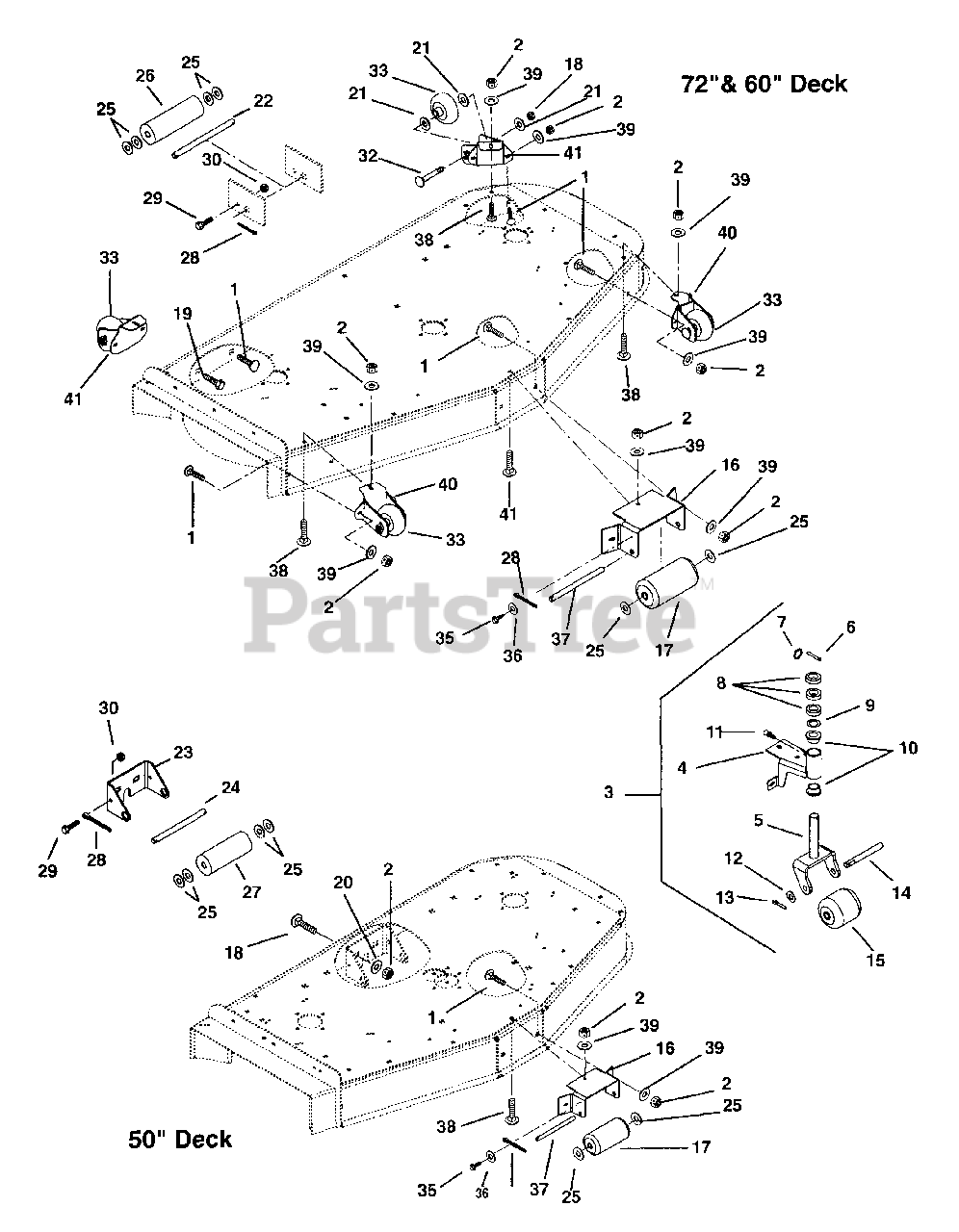

Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (72" & 60" Deck)

$2.99

$

In Stock, only 1 left!

0

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (50" Deck)

$2.99

$

In Stock, only 1 left!

0

2

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

Note: (72" & 60" Deck)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

Note: (50" Deck)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09241000

Assembly, Roller Bracket
(Superseded to 09251000)

Note: (72" & 60" Deck)(Contains items 4-15)(Optional)

$435.99

$

Usually ships in 4-12 days

0

3

Gravely 09241200

Assembly, Roller Bracket-Left Front
(Superseded to 09251100)

Note: (72" & 60" Deck); (Contains Items 5-15,17)

$479.99

$

Usually ships in 4-12 days

0

4

Gravely 09241153

Weldment-Roller Bracket

Note: (Optional)

$171.99

$

Usually ships in 4-12 days

0

4

Gravely 09241353

Weldment-Roller Bracket-Left Front

Note: (72" & 60" Deck)

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 09239100

Weldment-Roller Fork
(Superseded to 69206700)

$145.99

$

In Stock, only 1 left!

0

6

Gravely 06815500

Pin-Clevis .19 x 2.00

$5.49

$

In Stock, only 2 left!

0

7

Gravely 01169200

Kickout Ring
(Superseded to 01239800)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 045138

Bushing-Sleeve 1.04 x 1.75 x .500
(Superseded to 05519553)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 06435300

Washer-Hardened Thrust 1.00 x 1.55 x .03

$5.49

$

In Stock, Qty 11

0

10

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

11

Gravely 07012800

Fitting-Lube .25-28 Taper

$5.49

$

In Stock, Qty 5

0

12

Gravely 06442800

Washer-Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06713000

Pin-Cotter .25 x 1.00

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 09240900

Shaft, Castor

$37.99

$

In Stock, only 2 left!

0

15

Gravely 09240600

Roller

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 09094953

Bracket, Anti-Scalp Roller

$103.99

$

In Stock, only 1 left!

0

17

Gravely 09078100

Roller

$48.99

$

In Stock, Qty 6

0

18

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

Note: (72" & 60" Deck)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (60" Deck)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (72" & 60" Deck)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (50" Deck)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

Note: (72" & 60" Deck)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

Note: (60" Deck)

$61.99

$

In Stock, only 1 left!

0

23

Gravely 08966853

Bracket, Roller

Note: (50" Deck)

$

$

Not available

24

Gravely 045211

Rod
(Superseded to 08966900)

Note: (50" Deck)

$58.99

$

Usually ships in 4-12 days

0

25

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 031390

Roller, Gage
(Superseded to 08803300)

Note: (60" Deck)

$38.99

$

In Stock, only 2 left!

0

27

Gravely 015351

Roller, Gage
(Superseded to 07520100)

Note: (50" Deck)

$27.99

$

Usually ships in 4-12 days

0

28

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

29

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 2
(Superseded to 05901701)

Note: (60" Deck)

$1.99

$

In Stock, only 4 left!

0

32

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

Note: (72" & 60" Deck)

$

$

Not available

33

Gravely 09253700

Wheel, 3 x 5

Note: (72" & 60" Deck)

$15.99

$

In Stock, Qty 20+

0

35

Gravely 07412000

Screw-Self Tapping .25-20 x .50 x Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06437300

Washer-Flat-Steel
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

37

Gravely 09075300

Pin

$40.99

$

In Stock, only 2 left!

0

38

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (72" & 60" Deck)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (50" Decks)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 09254553

Weldment-Left Front Roller Bracket

Note: (72" & 60" Deck)

$

$

Not available

40

Gravely 09254653

Weldment-Right Front Roller Bracket

Note: (72" & 60" Deck)

$243.99

$

Usually ships in 4-12 days

0

41

Gravely 09253653

Weldment-Wheel Support Left Hand

Note: (72" & 60" Deck)

$

$

Not available

41

Gravely 09253553

Weldment-Wheel Support Right Hand

Note: (72" &, 60" Deck)

$186.99

$

Usually ships in 4-12 days

0
