992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) 60" Deck And Spindles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

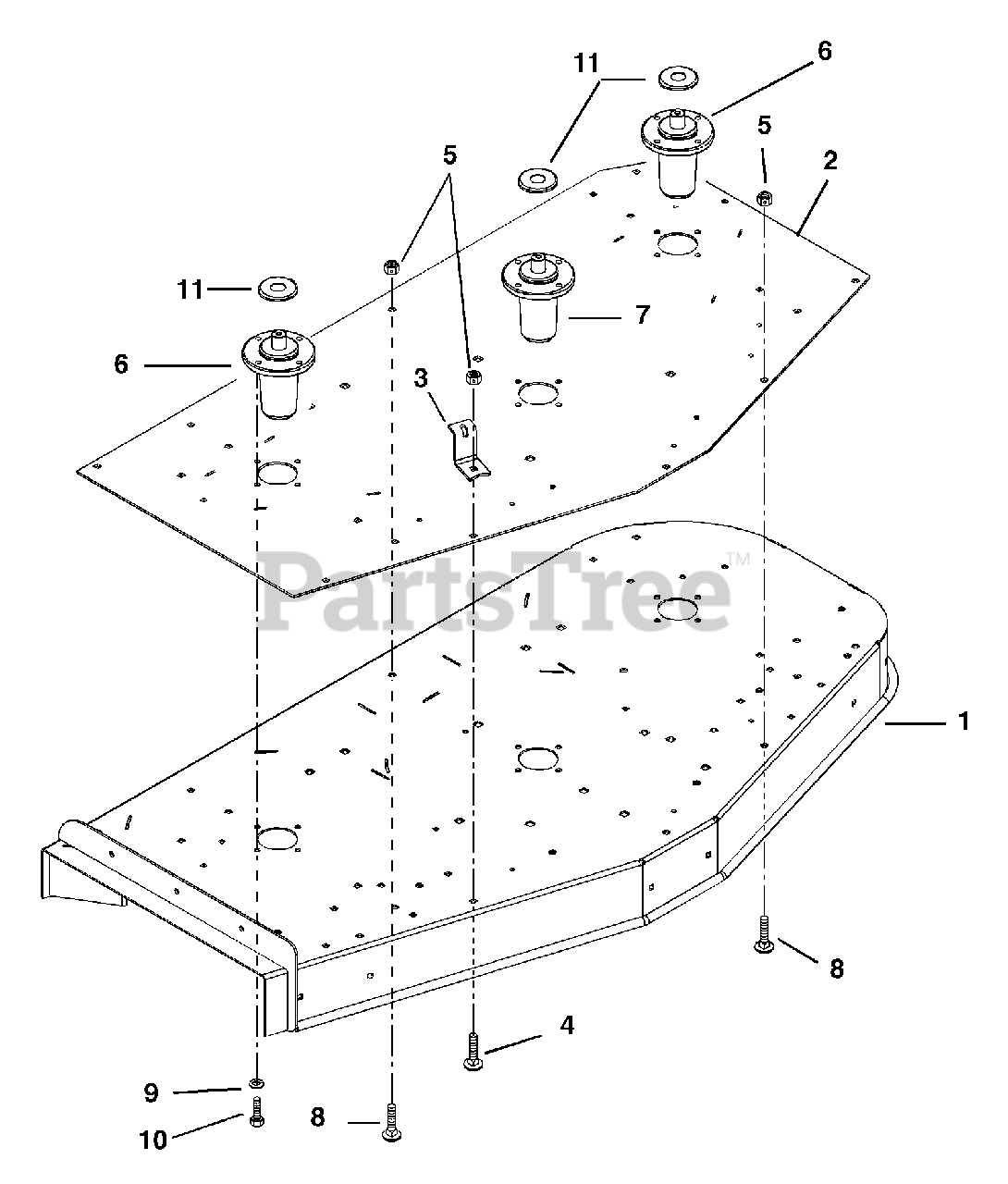

60" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09237653

Weldment, 60" Deck

Note: (Side Discharge)

$

$

Not available

2

Gravely 09239753

Plate, 60" Reinforcing

$

$

Not available

3

Gravely 09075853

Spring, Bracket
(Superseded to 09245353)

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 06221400

Bolt-Round Head Square Neck .38 - 16 x 1.25 Grade 2
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06535800

Nut-Locking-Nylon .38 - 16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 12)

$273.99

$

In Stock, Qty 16

0

7

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Contains Item 12)

$361.99

$

In Stock, Qty 20+

0

8

Gravely 06223600

Bolt-Round Head Square Neck .38 - 16 x 1.00 Grade 2
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

9

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

10

Gravely 05948700

Bolt-Hex .38 - 16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 1 left!

0
