992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) Lift Valve And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

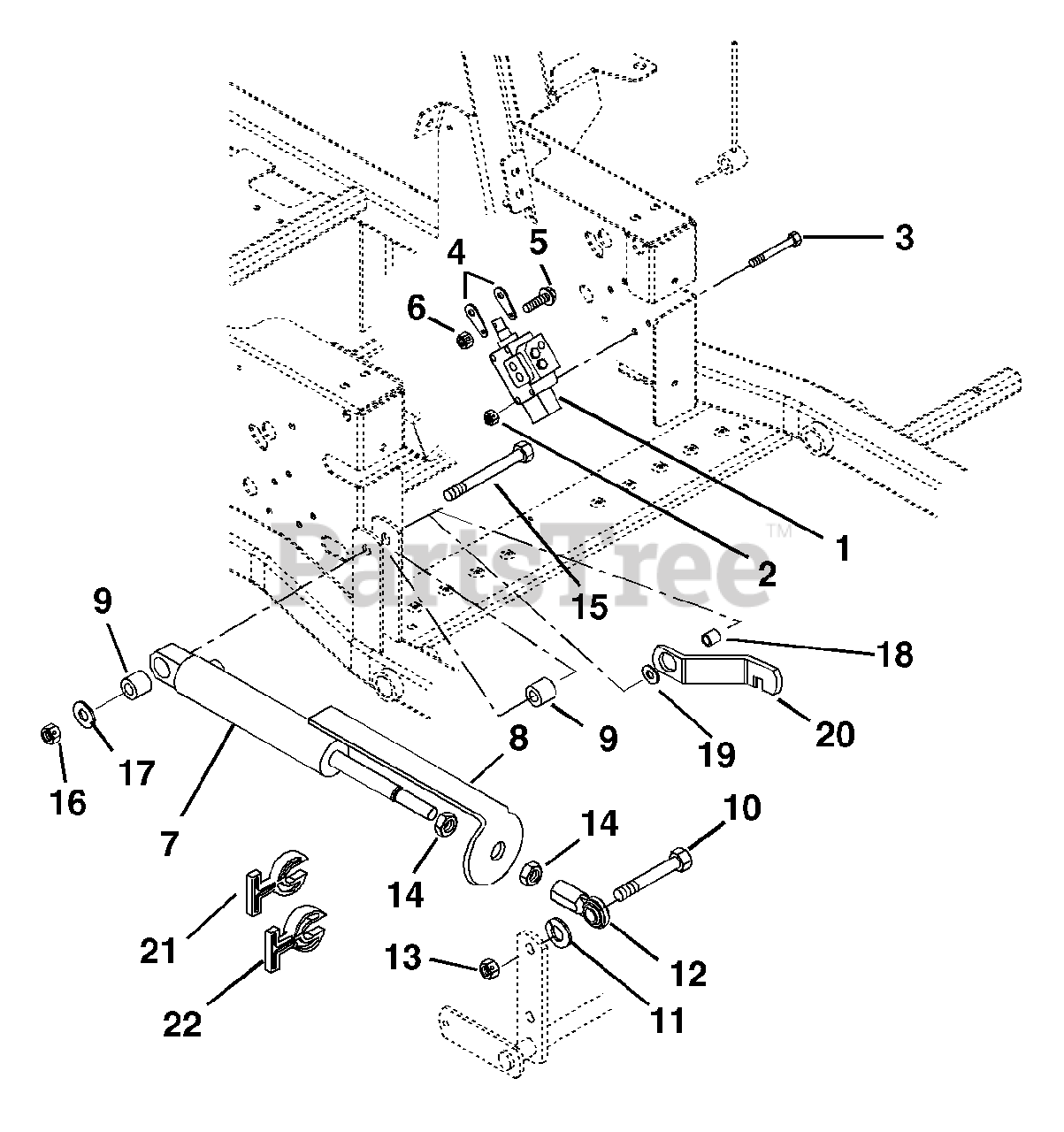

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09231300

Valve, Hydraulic Lift

$537.99

$

Usually ships in 4-12 days

0

2

Gravely 06531000

Nut-Locking-Nylon .25 - 20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

3

Gravely 05969900

Bolt-Hex .25 - 20 x 2.75 Grade 5

$

$

Not available

4

Gravely 09230300

Link

$

$

Not available

5

Gravely 06118500

Screw-Machine 10 - 24 x 1.00 Hex Washer Head
(Superseded to 05901838)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06536000

Nut-Locking-Nylon 10 - 24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09245100

Cylinder-Hydraulic Lift
(Superseded to 04864700)

$537.99

$

Usually ships in 4-12 days

0

8

09255953

Strap-Height of Cut Indicator

$

$

Not available

9

Gravely 09215200

Bushing .516 x 1.000 x 1.050

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

Bolt-Hex .62 - 11 x 2.25 Grade 8

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

Rod End-Right Hand-Female 5/8

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

Nut-Locking-Center .62 - 11

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06539600

Nut-Jam .625 - 18

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 05960100

Bolt-Hex .50 - 13 x 3.75 Grade 5
(Superseded to 05901703)

$6.49

$

In Stock, only 4 left!

0

16

Gravely 06536300

Nut-Locking-Center .50 - 13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

17

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$6.49

$

In Stock, Qty 20+

0

18

Gravely 05532100

Bushing-Flange .515 x .750 x .275 x 1.120

$

$

Not available

19

Gravely 03515000

Wave-Washer .76 x 1.12 x .08

$

$

Not available

20

Gravely 09250300

Latch

$

$

Not available

21

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, Qty 18

0

22

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0
