992027 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kohler (SN: 010000 - 011999) 72" Deck And Spindles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kohler

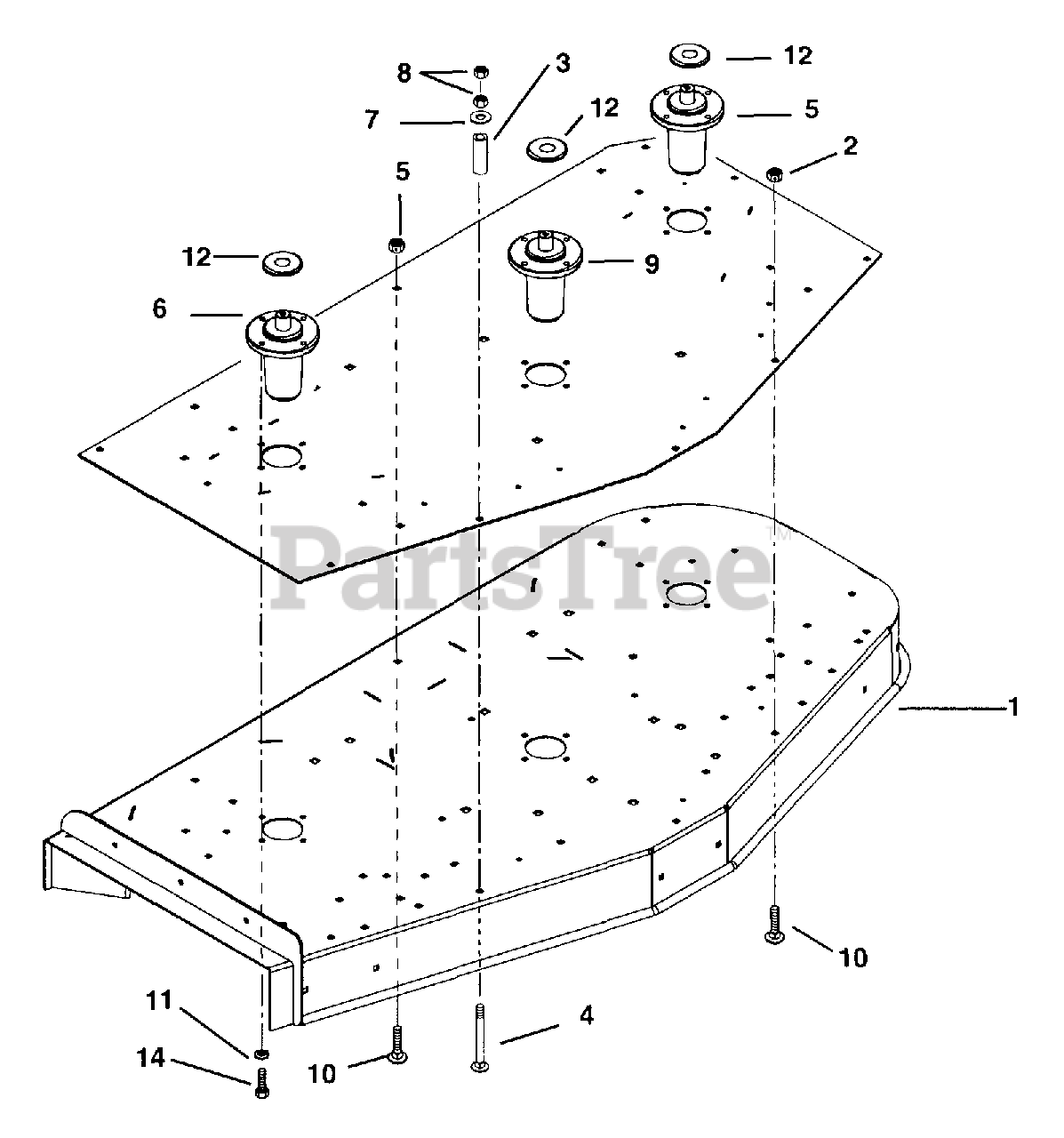

72" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09095953

WLDMT, 72" S.D. DECK

Note: (Side Discharge)

$581.99

$

Usually ships in 4-12 days

0

2

Gravely 09097553

PLATE, REINFORCMENT

$

$

Not available

3

Gravely 09054100

SPACER .380 X .625 X 1.500

$

$

Not available

4

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 09239400

ASS'Y, SPINDLE (TORRING) L-HUB
(Superseded to 59114000)

Note: (Contains Items 7-13)

$286.99

$

In Stock, Qty 13

0

7

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 69207500

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

10

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09238200

SLINGER, DUST

$18.99

$

In Stock, only 3 left!

0

13

Gravely 05714200

RG-RTNG-INT 2.210X.062

$3.49

$

In Stock, only 2 left!

0

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0
