992027 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kohler (SN: 012000 - 012053) 72" Deck And Spindles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kohler

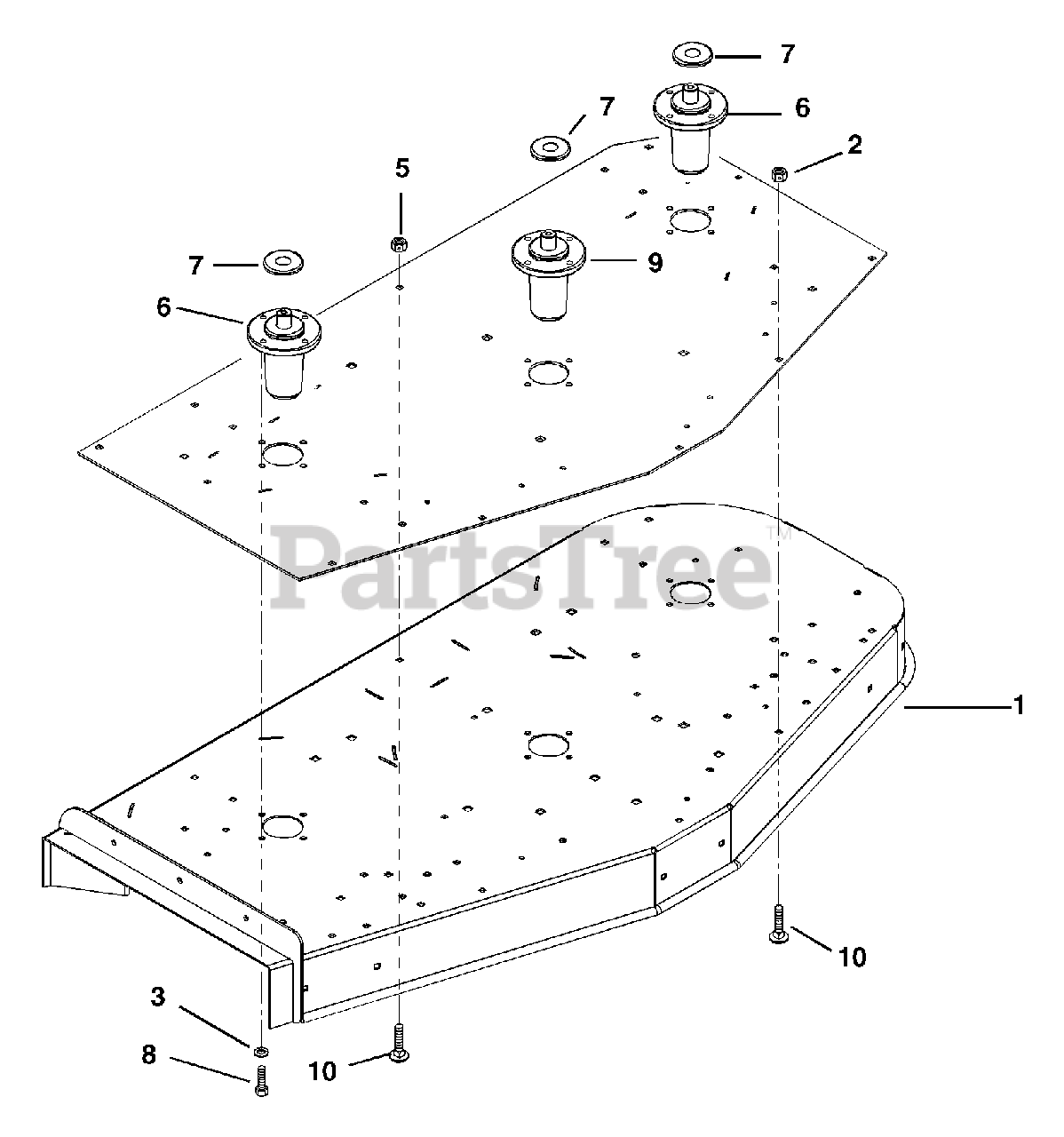

72" Deck And Spindles Parts Diagram

  • Title
1

Gravely 09095953

Weldment, 72" Deck

Note: (Side Discharge)

$581.99

$

Usually ships in 4-12 days

0

2

Gravely 09097553

Plate, 72" Reinforcement

$

$

Not available

3

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

4

Gravely 06225400

Bolt-Round Head Square Neck .38 - 16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 06535800

Nut-Locking-Nylon .38 - 16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 14

0

6

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 12)

$239.99

$

In Stock, Qty 5

0

7

Gravely 09238200

Slinger-Dust

$9.49

$

In Stock, Qty 16

0

8

Gravely 05948700

Bolt-Hex .38 - 16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 69207500

Assembly, Spindle
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

10

Gravely 06215500

Bolt-Round Head Square Neck .38 - 16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0
