992027 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kohler (SN: 012054 & Above) Control Panel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kohler

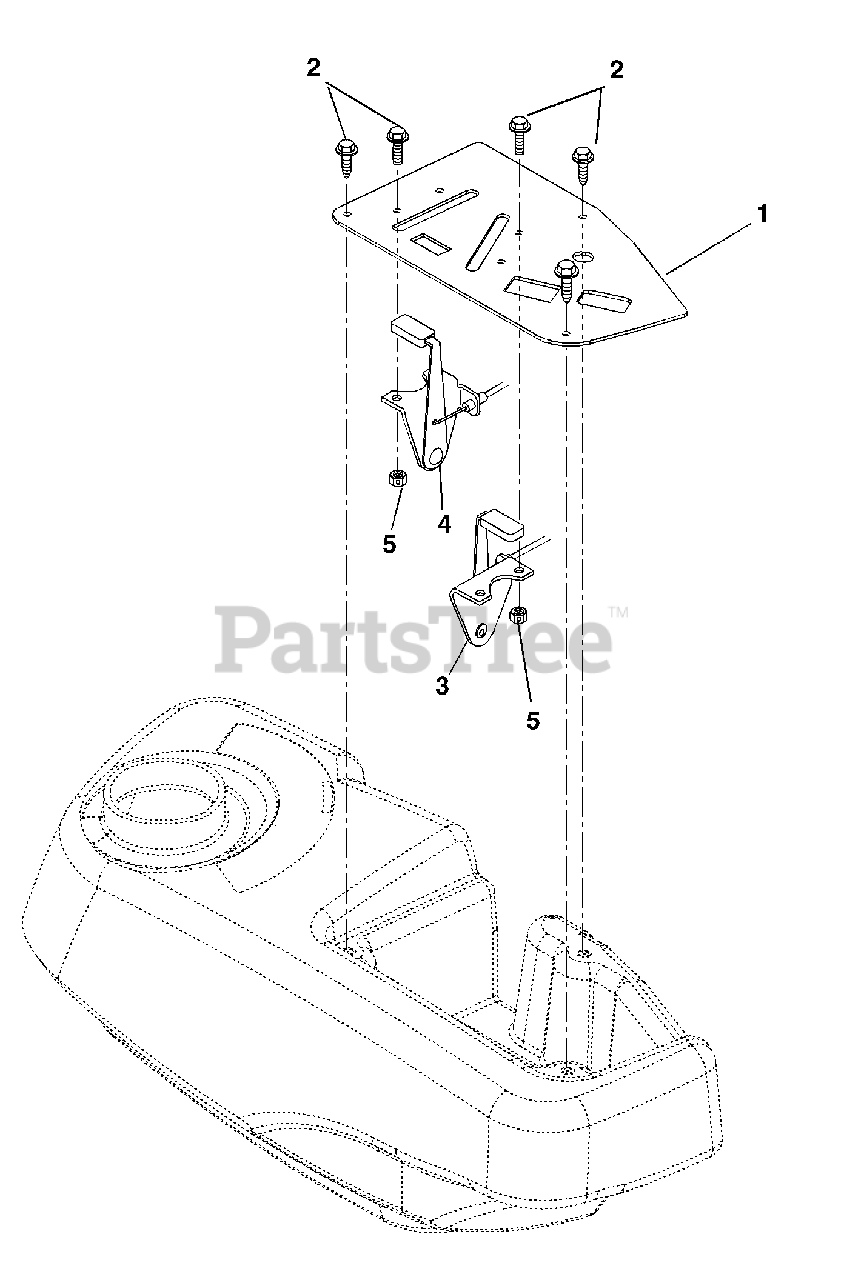

Control Panel Parts Diagram

  • Title
1

Gravely 09233500

Panel-Control
(Superseded to 09233551)

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09236700

Throttle Control
(Superseded to 06900026)

Note: (Models 020, 023)

$45.99

$

In Stock, only 1 left!

0

3

Gravely 06942400

Throttle Control

Note: (Model 305)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 09236800

Choke Control

Note: (Models 020, 022)

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 06942500

Choke-Control

Note: (Model 305)

$

$

Not available

4

Gravely 09252100

Choke-Control

Note: (Model 023)

$

$

Not available

5

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0
