992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Motors And Wheels Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

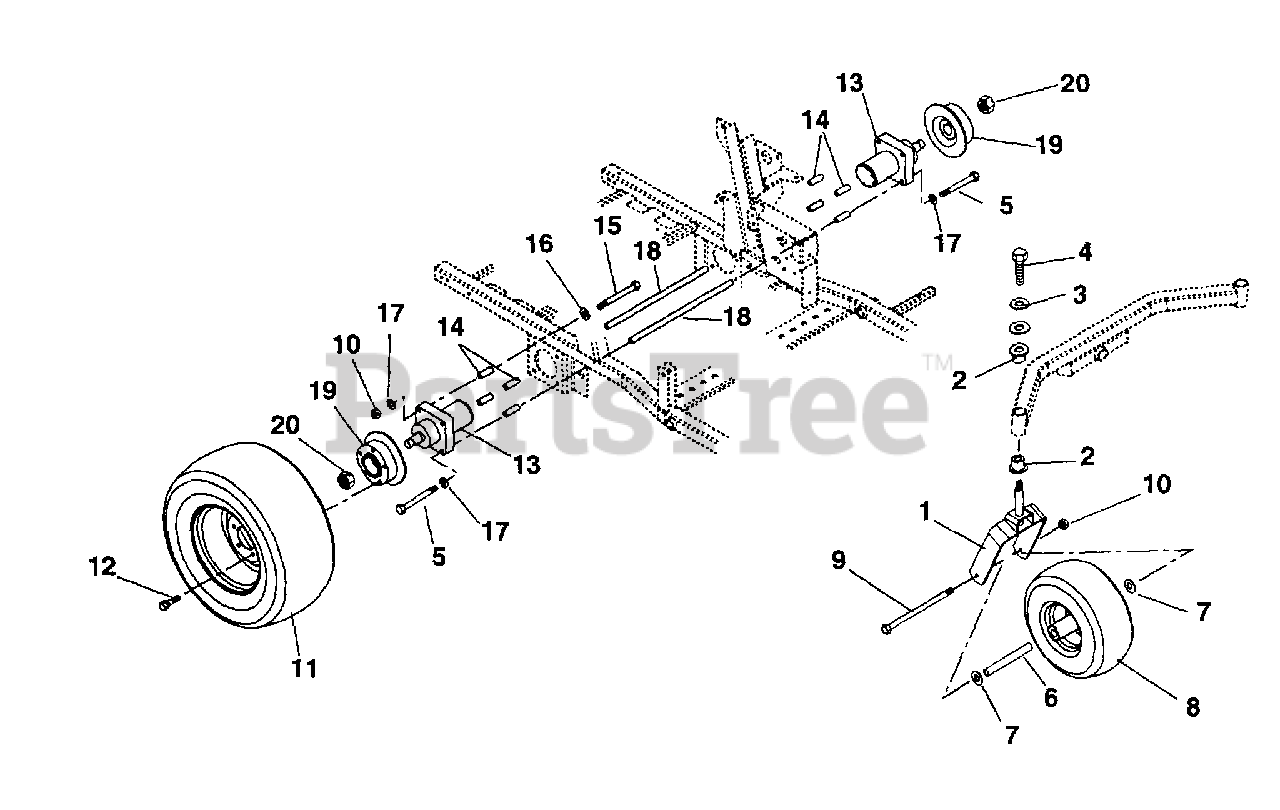

Motors And Wheels Parts Diagram

  • Title
1

Ariens 09214159

WMT, FRONT FORK - ORANGE

$

$

Not available

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$10.99

$

In Stock, Qty 20+

0

3

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

5

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

6

Ariens 09231800

SPACER - WHEEL

$47.99

$

Usually ships in 4-12 days

0

7

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 20+

0

8

Ariens 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$182.99

$

In Stock, Qty 12

0

Ariens 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$68.99

$

In Stock, only 3 left!

0

9

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 19

0

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

11

Ariens 07150700

WHL/TIRE 23X8.50-12 MULTITRAC

Note: (023)

$

$

Not available

Ariens 07150800

TIRE 23X8.50-12 MULTITRAC C/S

Note: (023)

$

$

Not available

12

Ariens 07014600

BLT-LUG .50-20X.75X1.62 PL
(Superseded to 07000143)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 09232300

HYDRAULIC WHEEL MOTOR

Note: (Includes 20)

$775.99

$

In Stock, only 1 left!

0

14

Ariens 05531400

BSHG-SLV .513X.748X2.129

$13.99

$

Usually ships in 4-12 days

0

15

Ariens 05975400

@BLT-HEX .50-13X5.00 GR8 YWZC

$5.99

$

In Stock, Qty 7

0

16

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

18

Ariens 09236200

ROD-MOTOR CONNECTING

$94.99

$

In Stock, Qty 5

0

19

Ariens 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$297.99

$

In Stock, only 1 left!

0

20

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$30.99

$

Usually ships in 4-12 days

0
