992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Mounting Arms And Belt Guards Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

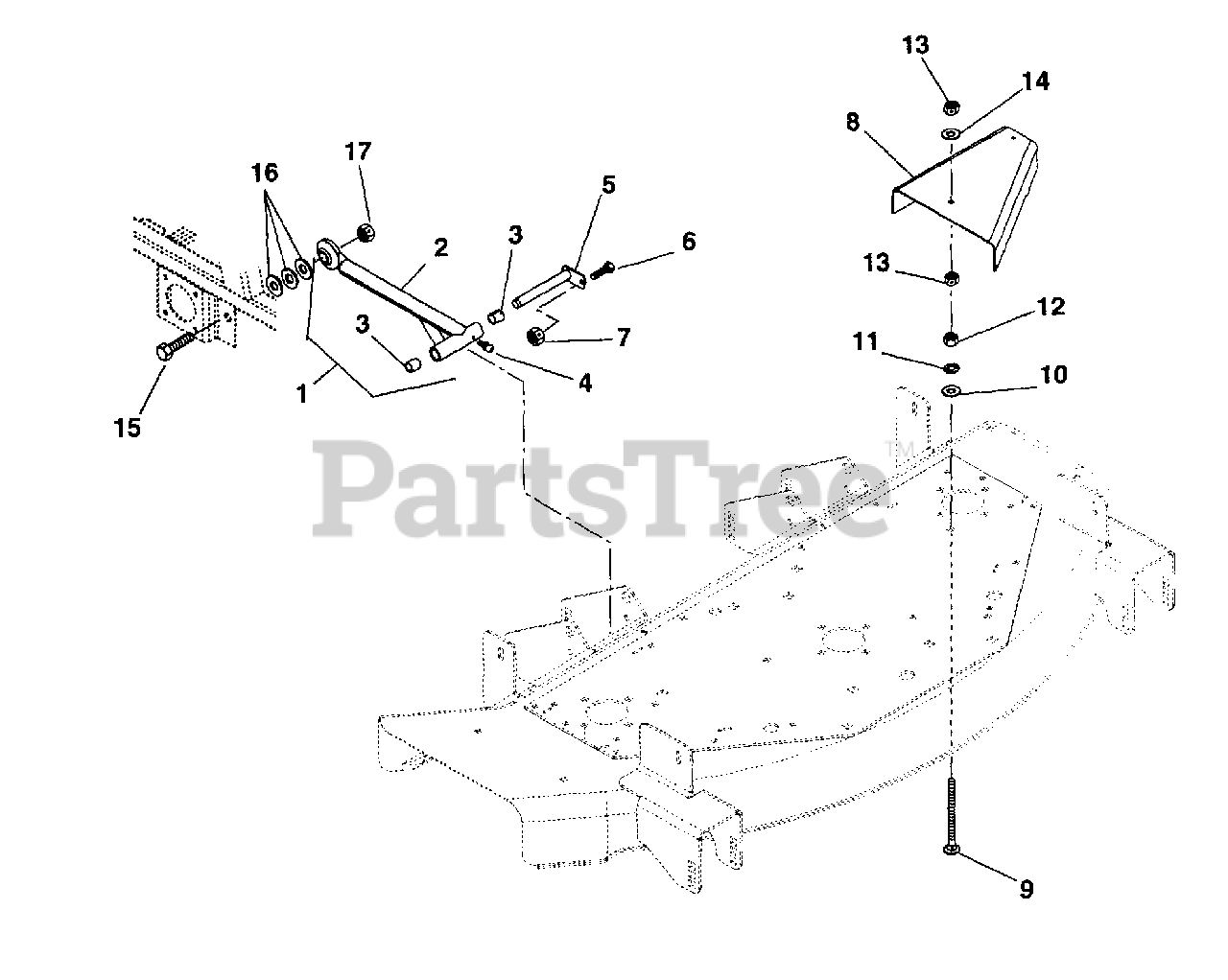

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Contains Items 2, 3)

$270.99

$

Usually ships in 4-12 days

0

2

Ariens 09247900

WELDMENT, MOWER MOUNTING ARM
(Superseded to 09247951)

$255.99

$

In Stock, only 1 left!

0

3

Ariens 05433400

BRG .75X.875X1.00
(Superseded to 05435900)

$5.99

$

In Stock, Qty 7

0

4

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

5

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$60.99

$

In Stock, only 3 left!

0

6

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 09246359

GUARD, PULLEY RH - ORANGE
(Superseded to 09246351)

$62.99

$

Usually ships in 4-12 days

0

Ariens 09246259

GUARD, PULLEY LH - ORANGE

$

$

Not available

9

Ariens 06221300

@BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$5.99

$

In Stock, only 2 left!

0

10

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

11

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

15

Ariens 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$7.99

$

In Stock, only 2 left!

0

16

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

17

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, only 4 left!

0
