992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Belts, Idlers And Blades Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

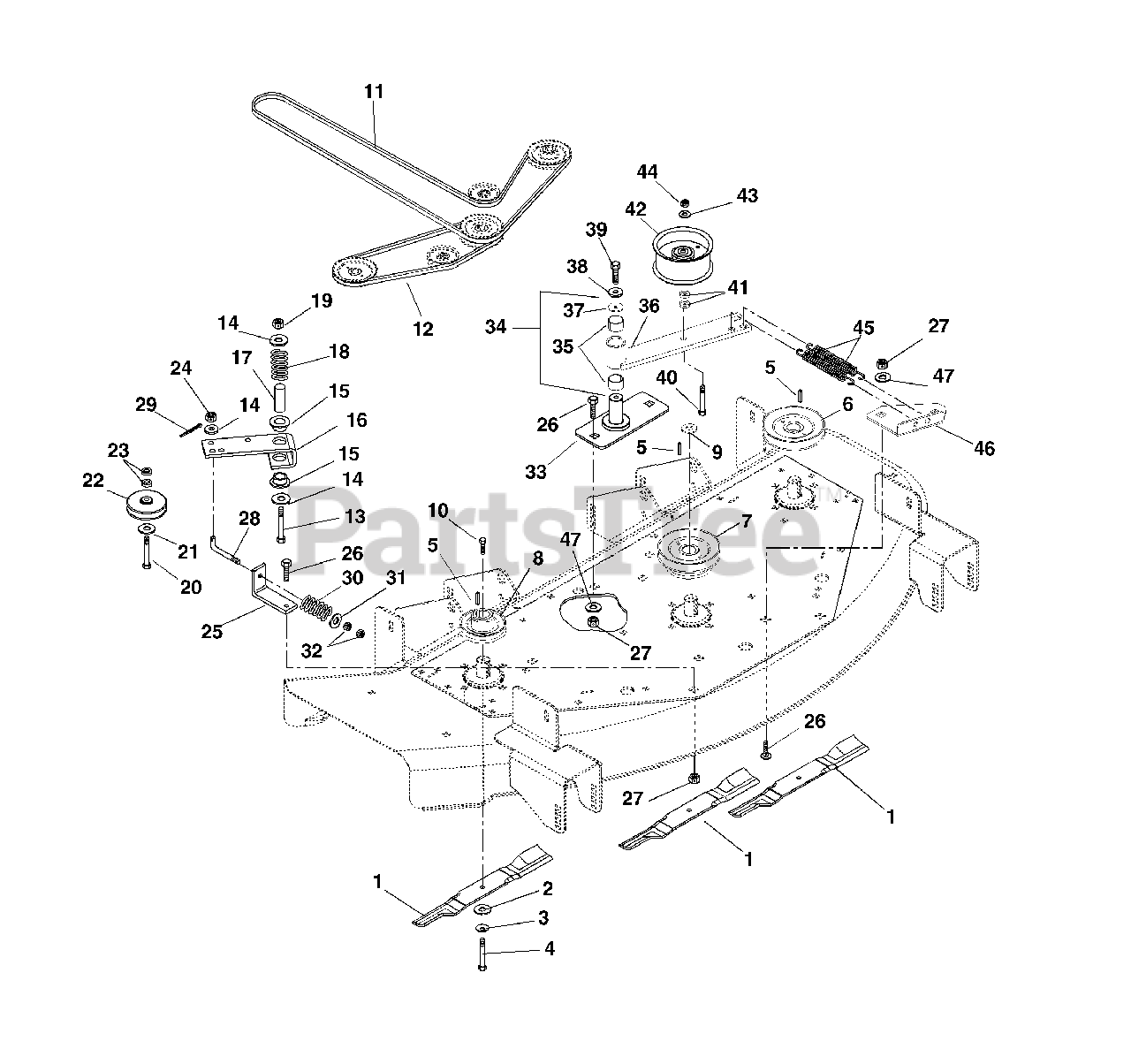

Belts, Idlers And Blades Parts Diagram

  • Title

1

Ariens 08779251

BLD, 50 INCH MOWER
(Superseded to 08779200)

$26.99

$

In Stock, only 3 left!

0

2

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

3

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

4

Ariens 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$48.99

$

Usually ships in 4-12 days

0

5

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 16

0

6

Ariens 04904300

WLDM'T,PLY-V 4.75X1.004

$101.99

$

Usually ships in 4-12 days

0

7

Ariens 04904200

WLDM'T PLY-DBLV 4.75,3.50X1.00

$87.99

$

In Stock, only 4 left!

0

8

Ariens 04903900

WLDM'T, PLY-V 3.50X1.004 W/KEY
(Superseded to 07333467)

$70.99

$

In Stock, only 2 left!

0

9

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07226000

V-BELT, A-RAW EDGE

$87.99

$

In Stock, only 2 left!

0

12

Ariens 07220000

V-BELT, HA-RAW EDGE

$29.99

$

In Stock, Qty 7

0

13

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

14

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.49

$

In Stock, only 1 left!

0

15

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 20+

0

16

Ariens 08905900

ARM,IDLER PIVOT

$84.99

$

Usually ships in 4-12 days

0

17

Ariens 08820500

SPACER .560X.750X2.437 ST

$19.99

$

In Stock, Qty 6

0

18

Ariens 08329100

SG-COMP .085X.80X1.00 WLD36

$14.99

$

In Stock, only 4 left!

0

19

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 14

0

20

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

22

Ariens 07309200

IDLER-V 3X.38

$38.99

$

In Stock, only 4 left!

0

23

Ariens 03488200

BUSHING .406 X .750 X .188

$6.49

$

In Stock, only 4 left!

0

24

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Ariens 08928800

BRKT,BELT TENSIONER

$

$

Not available

26

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 9

0

27

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 14

0

28

Ariens 08876000

ROD,IDLER

$

$

Not available

29

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

30

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$16.99

$

In Stock, only 4 left!

0

31

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 09213500

WMT, IDLER PIVOT

$

$

Not available

34

Ariens 09248400

ASSEMBLY, IDLER PIVOT ARM
(Superseded to 09286500)

$167.99

$

In Stock, only 2 left!

0

35

Ariens 05434800

BRG. 1.000 X 1.125 X .75
(Superseded to 05435800)

$9.99

$

In Stock, Qty 20+

0

36

Ariens 09248400

ASSEMBLY, IDLER PIVOT ARM
(Superseded to 09286500)

$167.99

$

In Stock, only 2 left!

0

37

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

39

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

40

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

41

Ariens 03488200

BUSHING .406 X .750 X .188

$6.49

$

In Stock, only 4 left!

0

42

Ariens 07317700

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

Note: (2.00 Wide)

$91.99

$

In Stock, Qty 20+

0

43

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

44

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 08335100

SG-EXT-.090X1.00X6.00
(Superseded to 08300513)

$35.99

$

In Stock, Qty 20+

0

46

Ariens 09213900

BRACKET, IDLER SPRING

$

$

Not available

47

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, only 3 left!

0
