992029 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 035000 & Above) 50" & 60" Deck And Spindles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

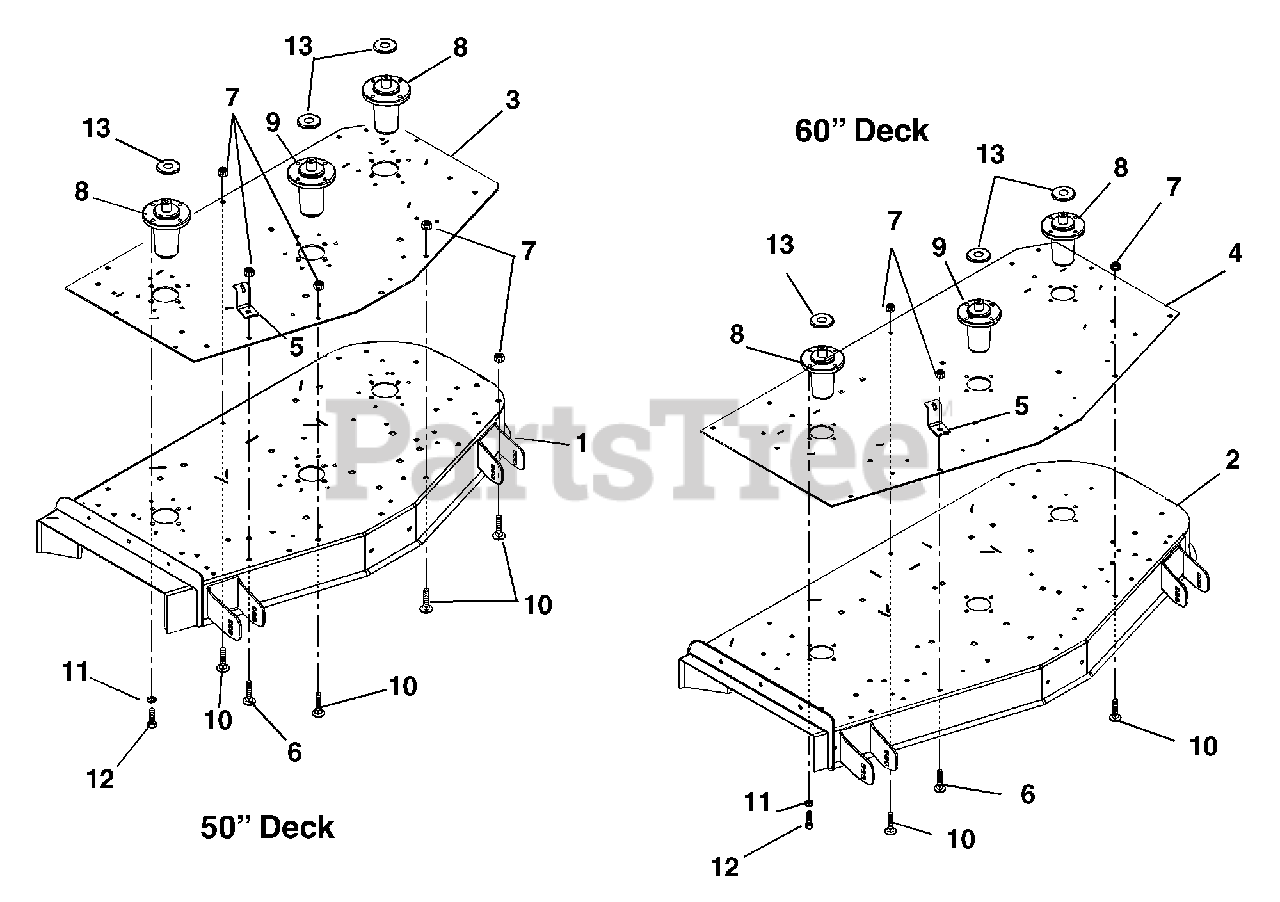

50" & 60" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09256953

WLDMT, 50" DECK

Note: (Side Discharge)

$

$

Not available

2

Gravely 09214953

WLDMT, 60" DECK

Note: (Side Discharge)

$

$

Not available

3

Gravely 09243053

PLATE, 50" REINFORCING (RED)

$455.99

$

Usually ships in 4-12 days

0

4

Gravely 09239753

PLATE, 60" REINFORCING (RED)

$

$

Not available

5

Gravely 09245353

ANCHOR, SPRING (RED)

$44.99

$

Usually ships in 4-12 days

0

6

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (50" Deck)

$3.99

$

In Stock, Qty 20+

0

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (60" Deck)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

Note: (Contains Item 13)

$286.99

$

In Stock, Qty 13

0

9

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Contains Item 13)

$361.99

$

In Stock, Qty 20+

0

10

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (50" Deck)

$3.49

$

In Stock, Qty 20+

0

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (60" Deck)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 09238200

SLINGER, DUST

$18.99

$

In Stock, only 3 left!

0
