992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) 50" Deck And Spindles Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

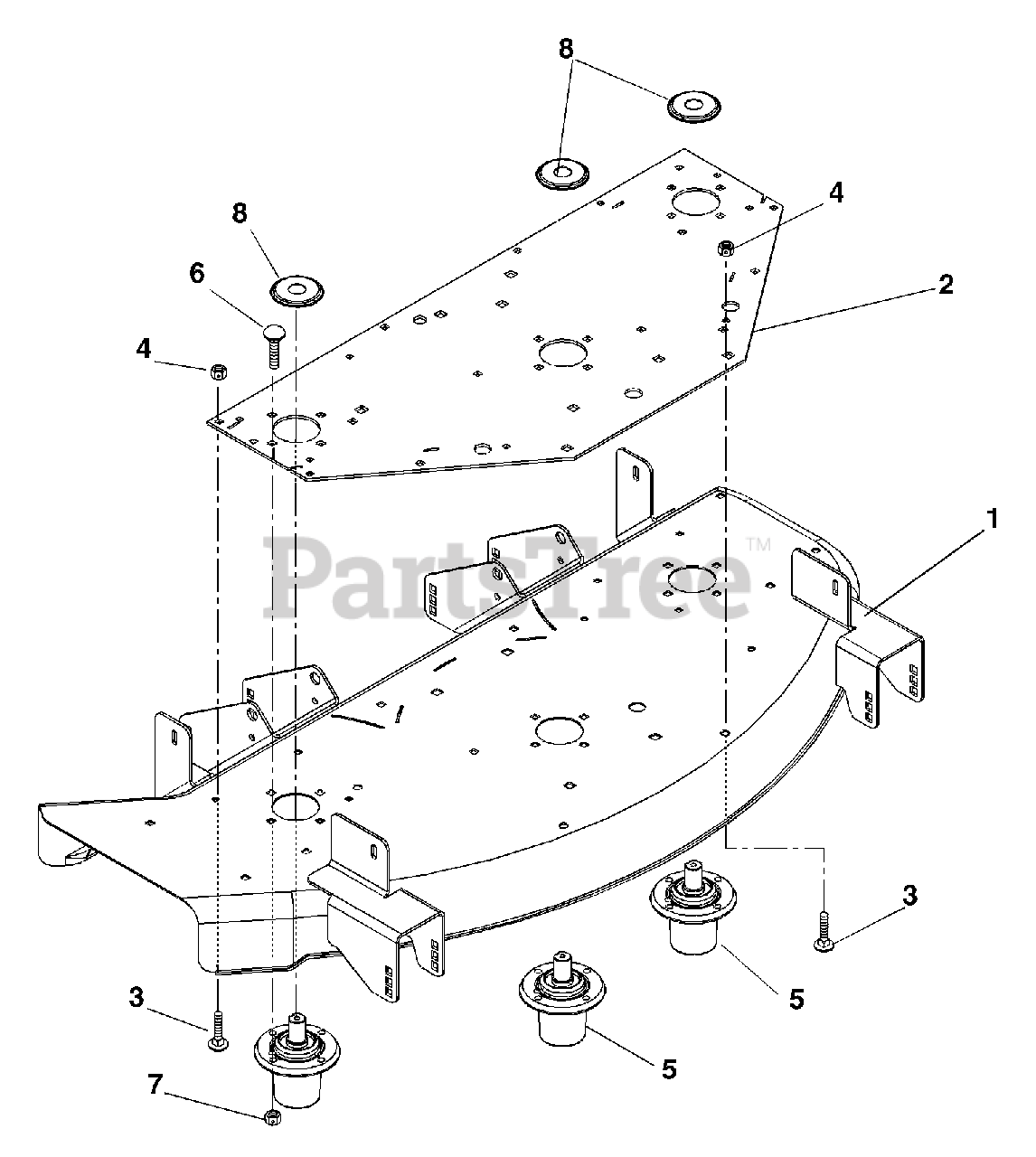

50" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09212653

WMT, 50" STAMPED DECK - RED
(Superseded to 59224600)

Note: (Side Discharge)

$805.99

$

Usually ships in 4-12 days

0

2

Gravely 08850153

PLT,SUPPORT

$224.99

$

In Stock, only 1 left!

0

3

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

5

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$273.99

$

In Stock, Qty 8

0

6

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0
