992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) 50" Discharge Chute And Rollers Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

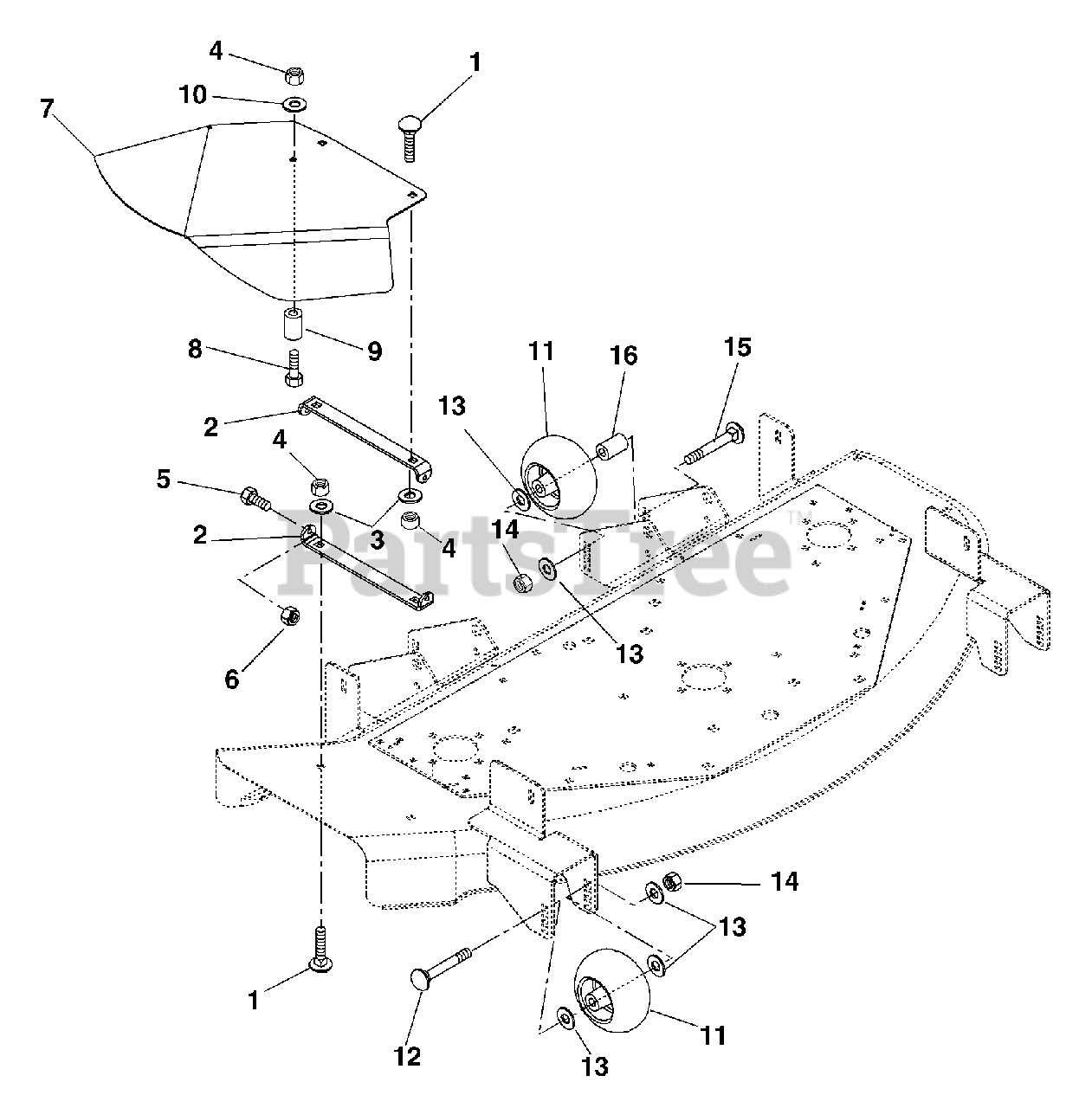

50" Discharge Chute And Rollers Parts Diagram

  • Title

1

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 08827653

BRKT,CHUTE

$

$

Not available

3

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03498953

SHIELD, SAFETY EXT, 50" MOWER

$

$

Not available

8

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 16

0

9

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.49

$

In Stock, Qty 17

0

10

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 9

0

11

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

12

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

13

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06225100

BLT-RDHDSQNK .50-13X6.50 YWZC2

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 09214400

SPACER, .505 X 1.00 X 1.56

$33.99

$

Usually ships in 4-12 days

0
